1. Connect a set of audio cables between the AV AUDIO IN [L-AUDIO-R] on the LCD Dis-
play and the AUDIO OUT jacks on the DVD player.
2. Connect a Component cable between the BNC/COMPONENT IN - P
R
, Y, P
B
port on the
LCD Display and the P
R
, Y, P
B
jacks on the DVD player.
Note
• Select Component for the connection to a DVD player using the SOURCE button on the
front of the LCD Display or on the remote control.
• Then, start the DVD Player with a DVD disc inserted.
Note
• A component cable is optional.
For an explanation of Component video, consult your DVD manual.

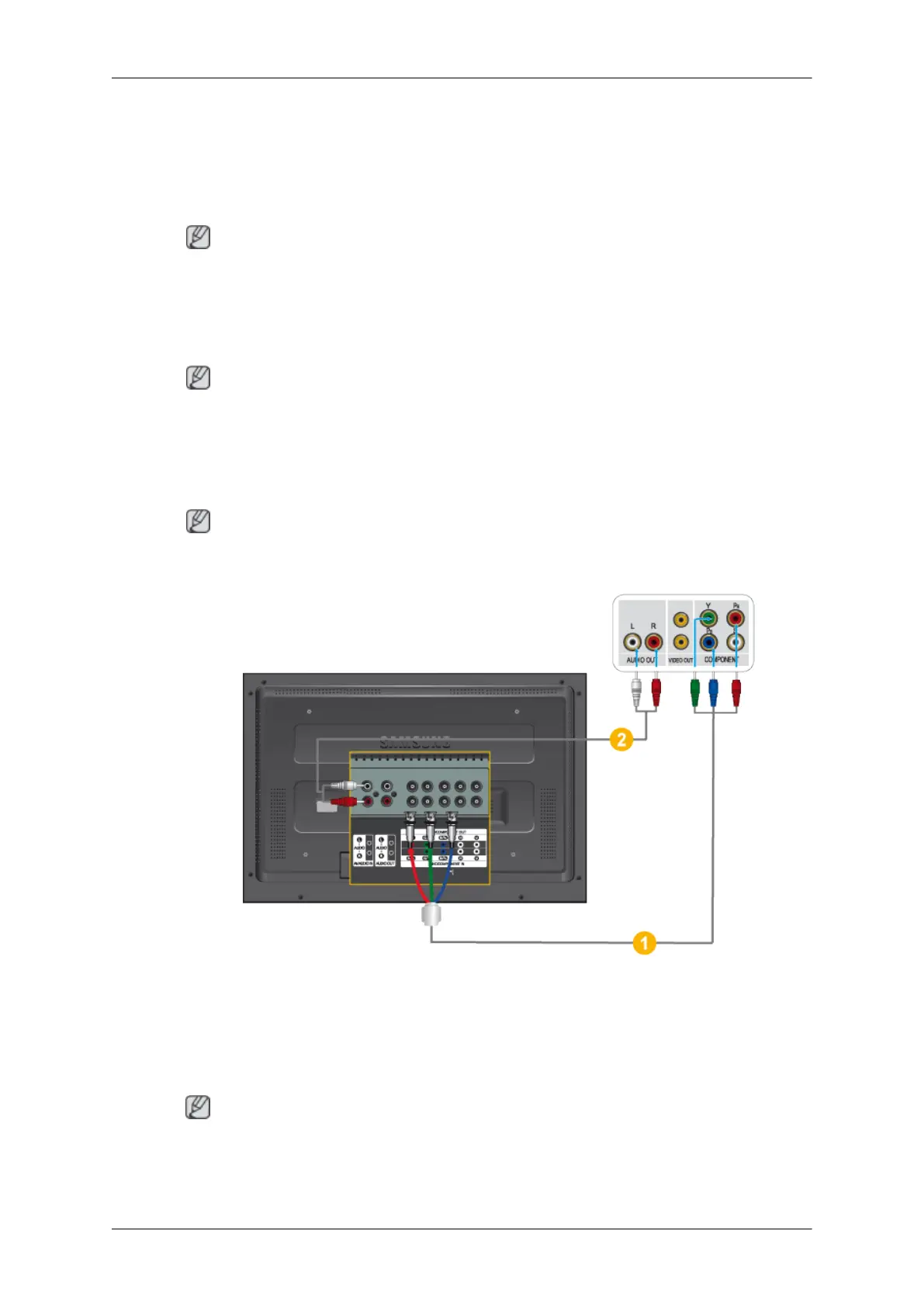

Connecting a DTV Set Top Box
Note
• The connections for a typical Set Top Box are shown below.
1. Connect a Component cable between the BNC / COMPONENT IN - P
R
, Y, P
B
port on
the LCD Display and the P
R
, Y, P
B
jacks on the Set Top Box.
2. Connect a set of audio cables between the AV AUDIO IN [L-AUDIO-R] on the LCD Dis-
play and the AUDIO OUT jacks on the Set Top Box.
Note
• Select Component for the connection to a DTV Set Top Box using the SOURCE button
on the front of the LCD Display or on the remote control.
Connections
