Samsung 910MP - No Video (PC Signal) Issues

5 Troubleshooting
5-2
9
7
8
10

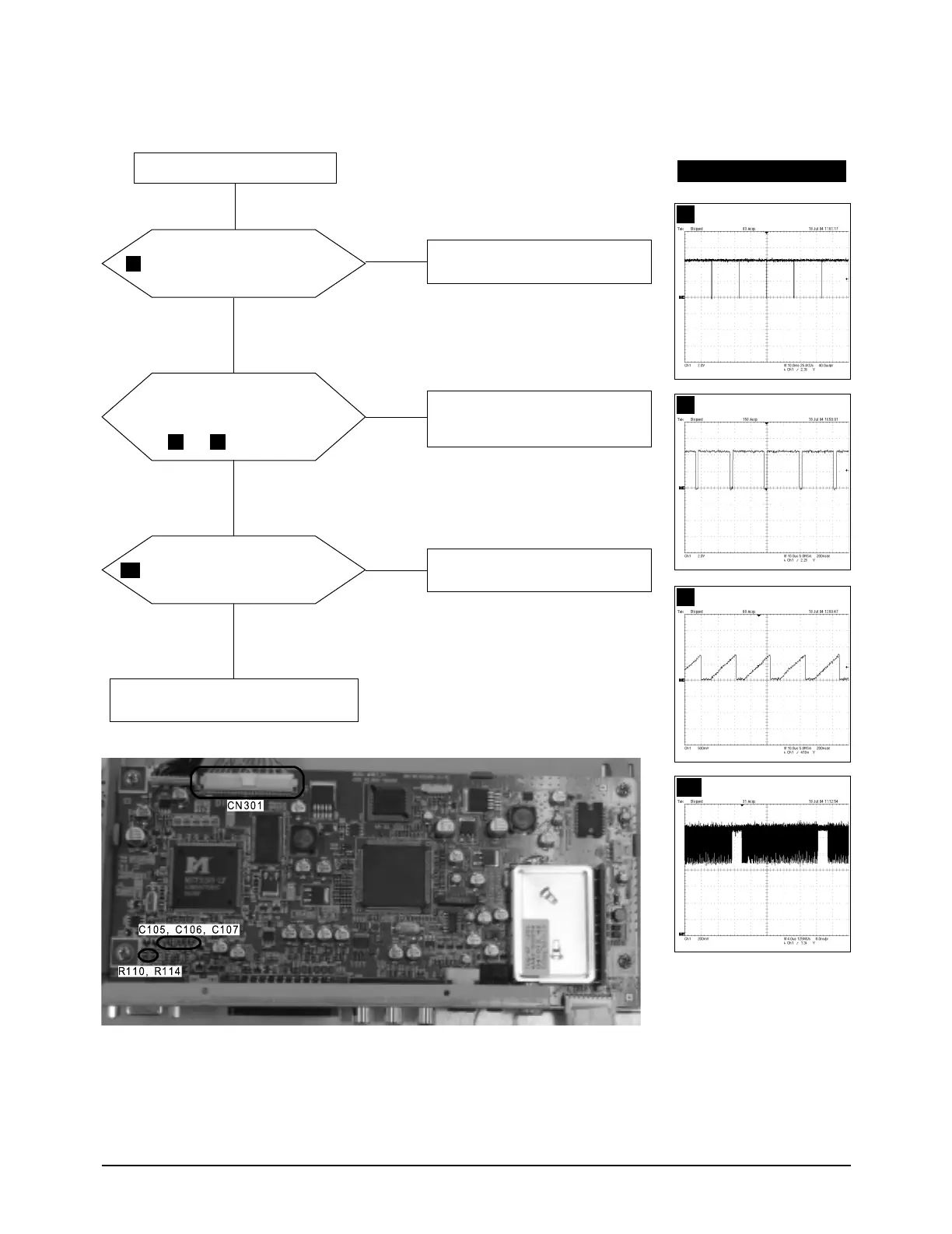

WAVEFORMS
Power Indicator is green.
Check related circuit of CN101.
Yes
No
Does a signal appear at
C105,C106 and
C107(R,G,B Input)?
Check related circuit of CN101.
Yes
No
Does a signal appear at
R114,R110(H/V Sync)?
Check related circuit of IC300.
Yes
No
Does a signal
appear at pin 1~30
of CN301(LVDS output)?
Yes
Replace LCD Panel.
5-2 No Video (PC Signal)
