Indoor unit installation
Installation
Horizontal application
Horizontal applications will normally be used in an attic
plenum or duct to be connected to the supply collar and a
return air plenum or duct be attached to the unit inlet collar.
The supply ducts will be connected to the supply air plenum
and routed through the attic to a register in each room. Use
a Non-tape sealant such as mastic or an aerosol sealant to
prevent leaks in the ducts and the plenum.
The opposite end of the return air duct is attached to a return
tape sealant such as mastic or an aerosol sealant to prevent
leaks in the ducts and the plenum.
Refrigerant pipe
conections
Horizontal left
(right to left) drain
connections
Horizontal right
(left to right)
drain pan
opening

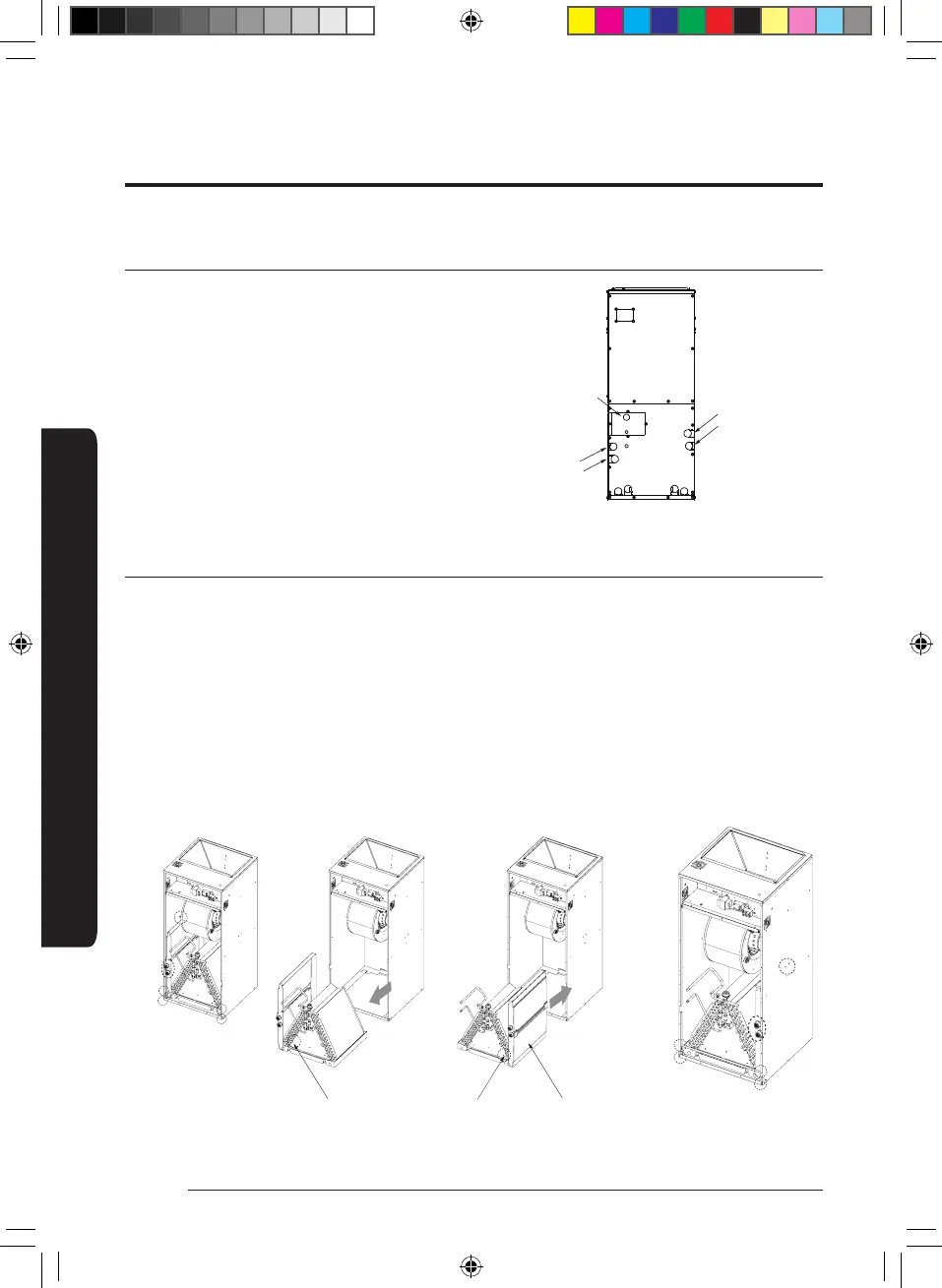

Horizontal right application (left to right)
1. Remove the unit access panels
2. Remove the cooling coil after disassembling bracket coil and plate.
3. Move the condensate drain pan to the right side of the unit chassis.
4. Move the Evap In temperature sensor to holder of the right side.
5. Reinstall the cooling coil.
6. Connect the condensate drains and refrigerant lines. DRY NITROGEN MUST BE FLOWED THROUGH REFRIGERANT LINES
DURING SOLDERING OPERATION.
7. Reinstall unit access panels.
※
Evap. In Temperature Sensor
Move drain pan to right side of coil
