7
Installation
Dimensions
5
BOTTOMs
TOP
LEFT SIDE RIGHT SIDEFRONT

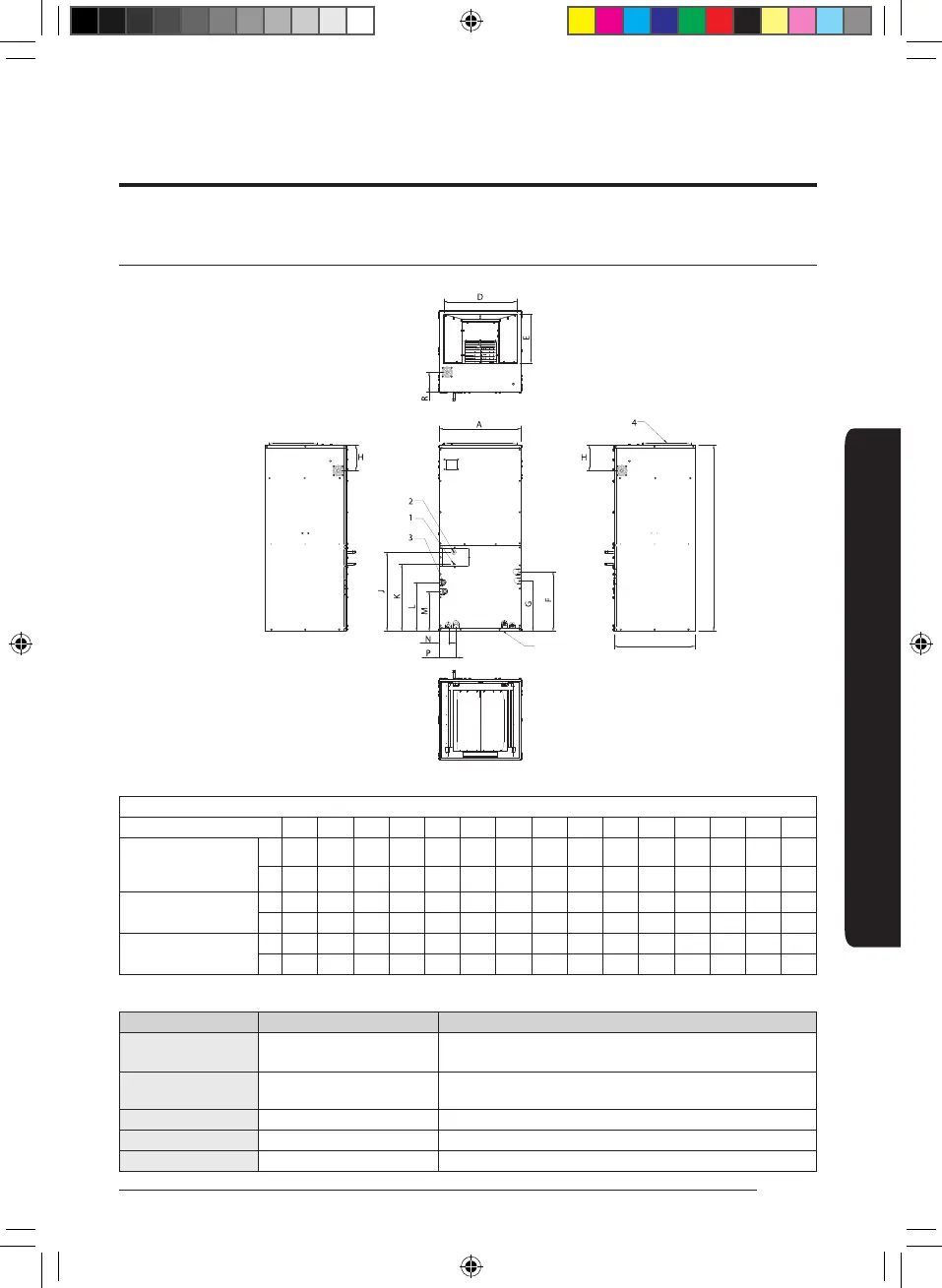

DIMENSIONAL DATA MULTI-POSITION AIR HANDLER
MODEL A B C D E F G H J K L M N P R
AC012BNZDCH
AC018BNZDCH
AC024BNZDCH
inch 17.50 43.00 21.00 15.50 12.50 13.50 11.00 6.75 16.75 14.00 11.00 8.50 2.00 4.00 2.00
mm 444.50
1092.20
533.40 393.70 317.50 342.90 279.40 171.45 425.45 355.60 279.40 215.90 50.80 101.60 50.80
AC030BNZDCH
AC036BNZDCH
inch 21.00 48.00 21.00 19.00 12.50 13.38 13.00 6.75 20.00 17.00 12.75 10.30 2.30 4.35 2.50
mm 533.40 1219.20 533.40 482.60 317.50 339.73 330.20 171.45 508.00 431.80 323.85 261.62 58.42 110.49 63.50
AC042BNZDCH
AC048BNZDCH
inch 24.50 58.75 21.75 19.50 16.25 19.75 17.25 6.75 26.00 23.00 16.75 14.35 2.30 4.35 2.00
mm 622.30 1492.25 552.45 495.30 412.75 501.65 438.15 171.45 660.40 584.20 425.45 364.49 58.42 110.49 50.80
NOTE: ALL DIMENSION ARE IN INCHES AND ARE APPROXIMATE. ALL DIMENSIONS ARE ROUNDED
No. Name Description
1
2 Gas pipe connection
3 -
4 - -
5 - -
DB68-11271A-02_IM_CAC Universal AHU Indoor_AA_EN_.indd 7 2022-09-15 오전 9:53:15
