PCB Diagram and Parts List
Samsung Electronics 5-19

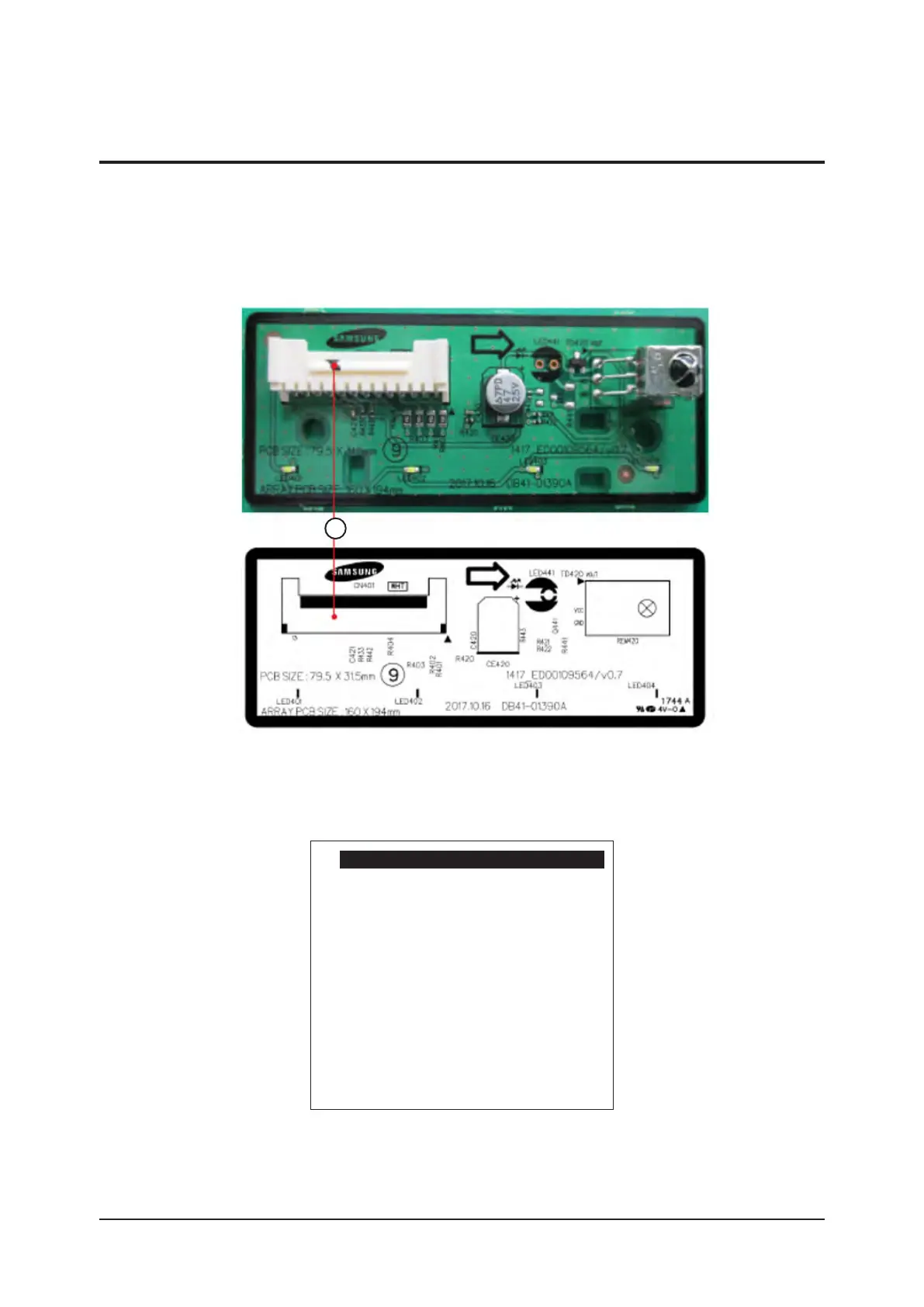

5-2. Indoor Unit Display PBA
■ 4way Cassette, 4way Cassette(600x600) : AC***BN4DCH, AC***BNNDCH
※ The display PBA of 4way cassette is included in the panel.
※ The description of the display PBA is based on Windfree Panel.
①
CN01 : DISPLAY
#1: DC12V
#2: LED_OPERATION
#3: LED_DEFROST
#4: LED_TIMER
#5: -
#6: LED_FILTER
#7: -
#8: REMOCON SIGNAL OUT
#9 : PANEL SELECT
#10: REMOCON SIGNAL IN
#11: GND
#12: DC5V
#13: -
