Disassembly and Reassembly
3-2 Samsung Electronics
No Parts Procedure Remark
1 PANEL AND
FILTER WIND
FREE TYPE
(PC1NWFMUN)

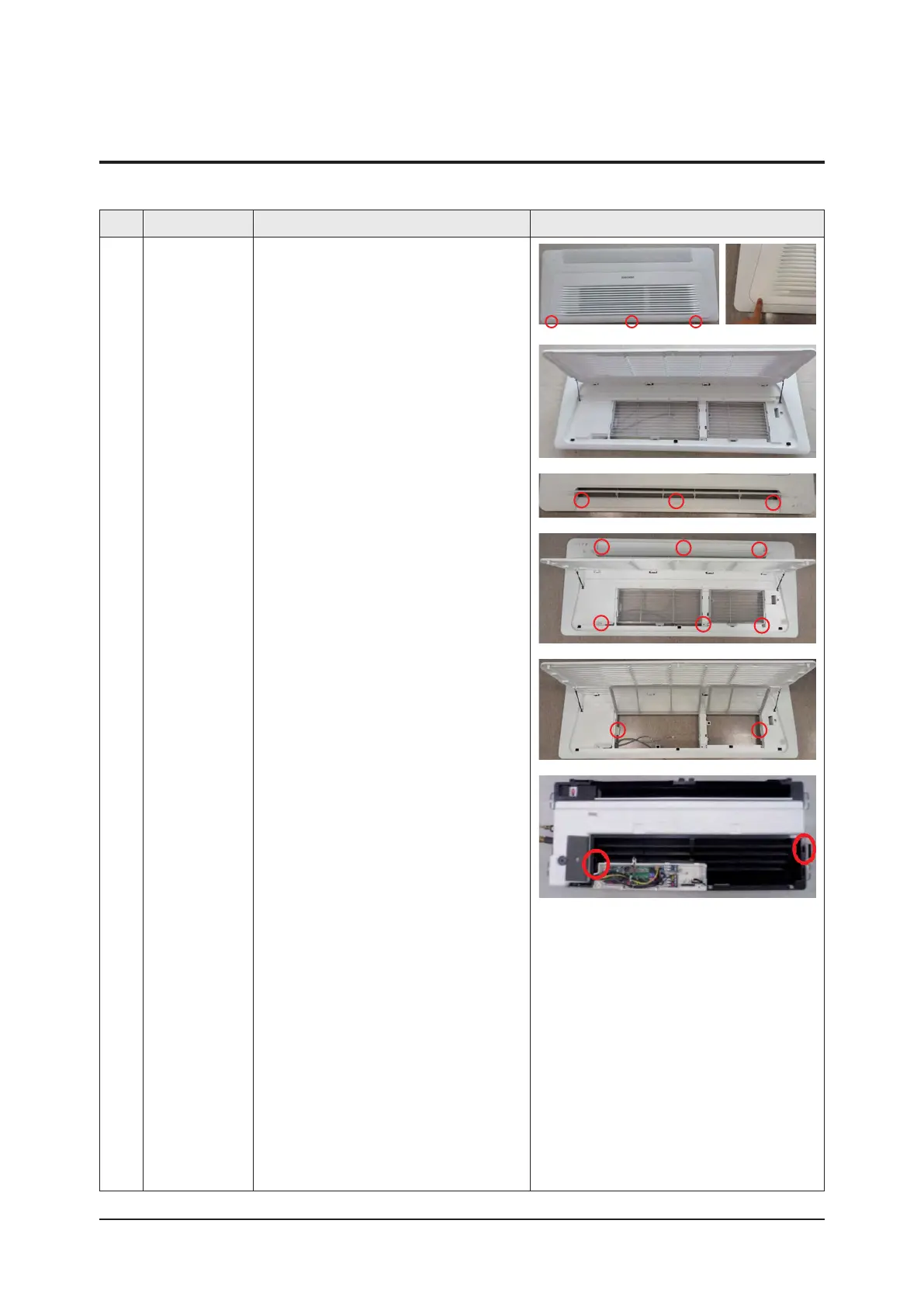

1) Open the GRILLE as shown in the
figure.
- 3point
2) Remove the FILTER from the PANEL.
3) Remove the 3 COVER SCREW as shown
in the figure.
4) Remove the 6 screws fixed in PANEL
and then remove the PANEL.
(Use +Screw Driver)
5) Press the left and right PANEL HOOK
and then separate the PANEL from the
indoor unit.
■ 1way CST : AC009BN1DCH, AC012BN1DCH
3-1. Indoor unit
To Next Page
