Disassembly and Reassembly
Samsung Electronics 3-31

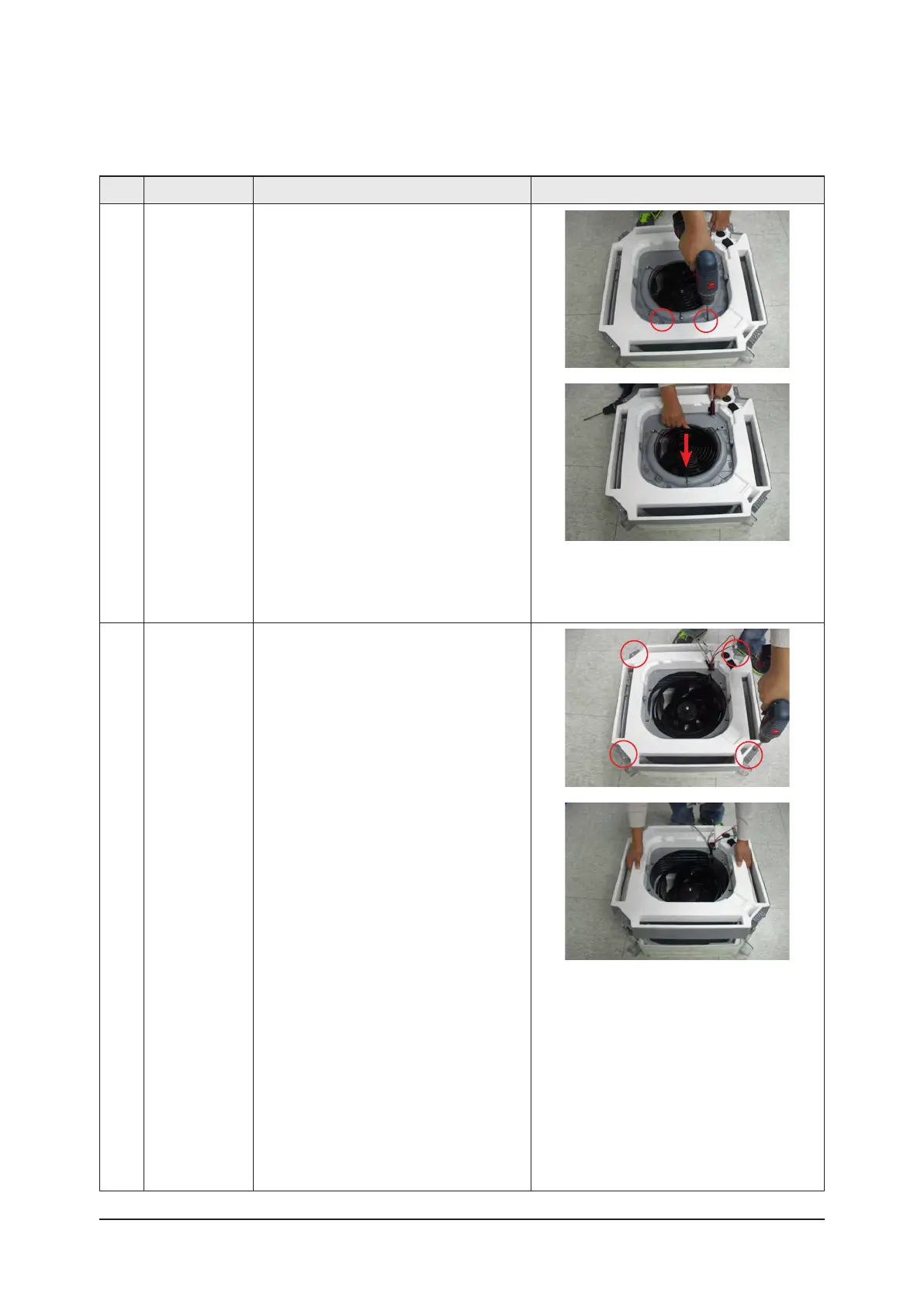

No Parts Procedure Remark
7 Bell-Mouth
1)
Unscrew the screw fixed on the Bell-Mouth.
(Use +Screw Driver)
2) Push the Bell-Mouth in the direction
opposite to where it’s installed on the
Control-Box to remove it.
8 Drain Pan 1) Unscrew the screws on the 4 corners of
the indoor unit.
(Use +Screw Driver)
2)
Remove the Drain Pan from the indoor unit.
To Next Page
