Disassembly and Reassembly
3-46 Samsung Electronics
No Parts Procedure Remark

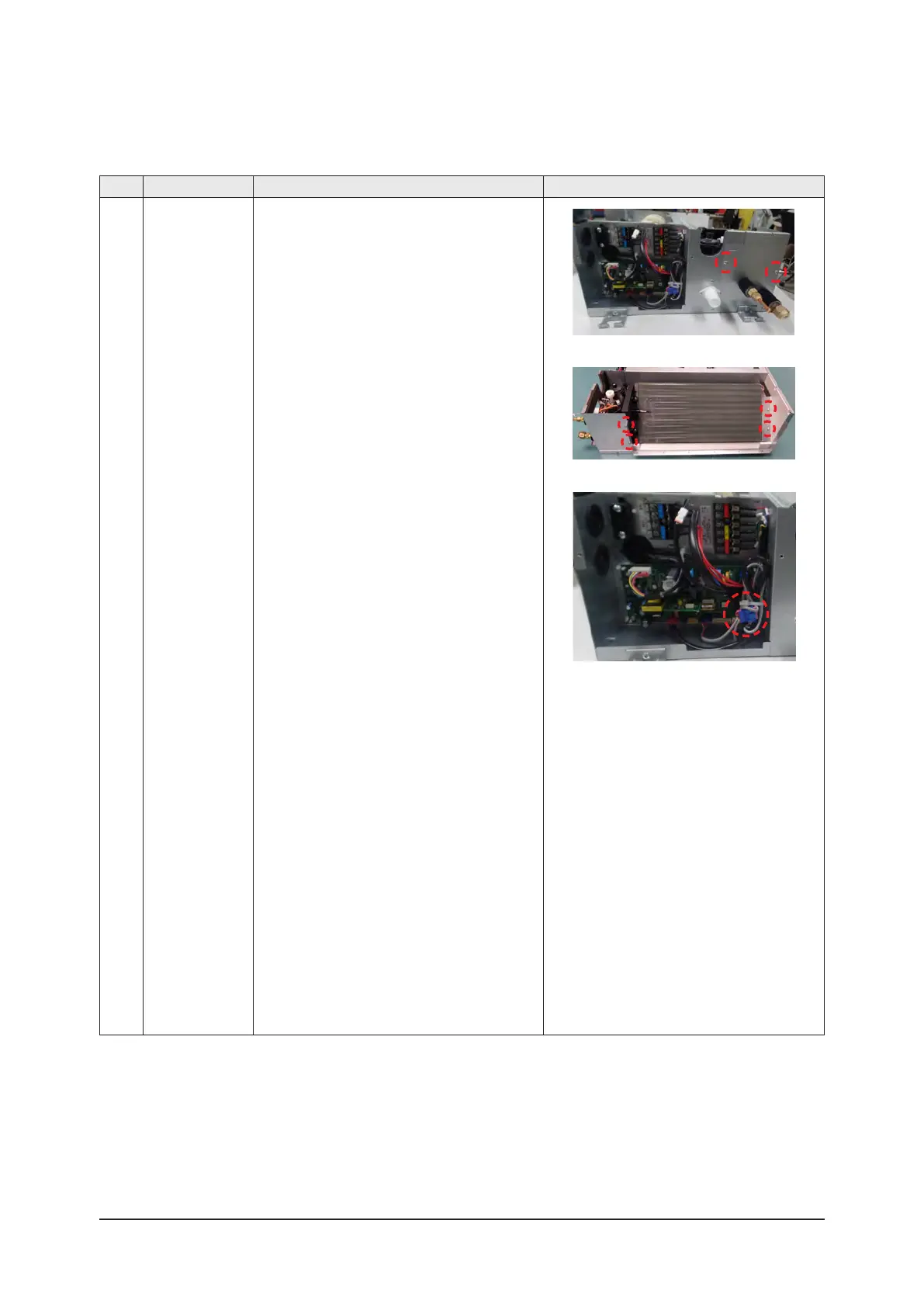

3 Evaporator
1) Disassemble the Cover Pipe that fixes the
high/low pressure Pipe.
- Unscrew 2 screws
2) Disassemble the Support Evap RH.
- Unscrew 4 screws
3) Disassemble the refrigerant temperature sen-
sor, Inlet air temperature sensor, and EEV wire
that connected to the inside of PCB.
4) Disassemble the Evaporator form the set.
To Next Page
