Samsung AC052MNCDKH - Indoor Unit Main PCB

Samsung Electronics 5-1

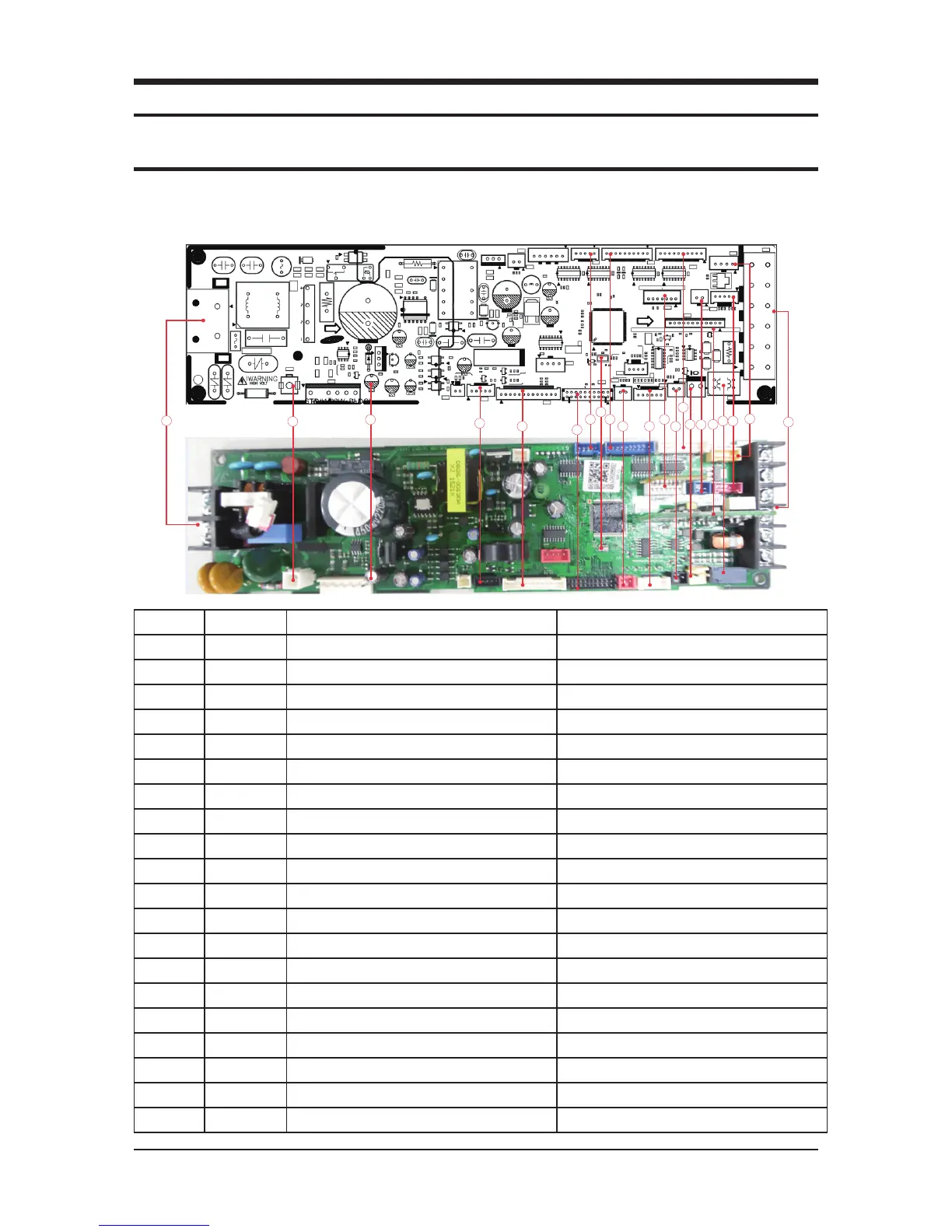

5. PCB Diagram and Parts List
5-1 Indoor Unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1920
21
1 TB101 INPUT POWER
2 CN101 GVD
YDW236-01(WHT)
3 CN701 BLDC FAN MOTOR YW396-06V(WHT)
4 CN140 FUSE CHECK SMW200-02(WHT)
5 CN809 AUTO GRILLE SMW200-05(BLK)
6 CN501 DISPLAY SMY200-13(WHT)
7 CN301 DOWNLOAD YDW200-20(BLK)
8 CN83 EXTERNAL SIGNAL SMW250-02(RED)
9 CN413 EVEA IN/OUT/DIS SMW200-06(NTR)
10 CN411 FL-SW SME250-02(BLK)
11 CN103 DRAIN PUMP YW396-02V(YEL)
12 TE04 COM1 12V COM2 DAPC-2009-6P
13 CN311 2WIRE OPTION BMW200-12(wht)
14 CN401 HUMAN SENSOR SMW200-05(RED)
15 CN804 VENTILATOR SMW250-02(BLU)
16 CN201 EEPROM PBA CONNECTOR B7P-MQ(WHT)
17 CN801 SPI MODULE SMW250-04(YEL)
18 CN805 LOUVER 1/2 SMW200-10(NTR)
19 CN806 LOUVER 3/4 SMW200-10P(BLU)
20 CN807 LOUVER 5 SMW200-05(BLU)
21 CN81 EXT_CTRL SMW250-04(RED)
MAIN PCB
■ AC052MNCDKH / AC071MNCDKH
