6. Center of Gravity
6. Center of Gravity

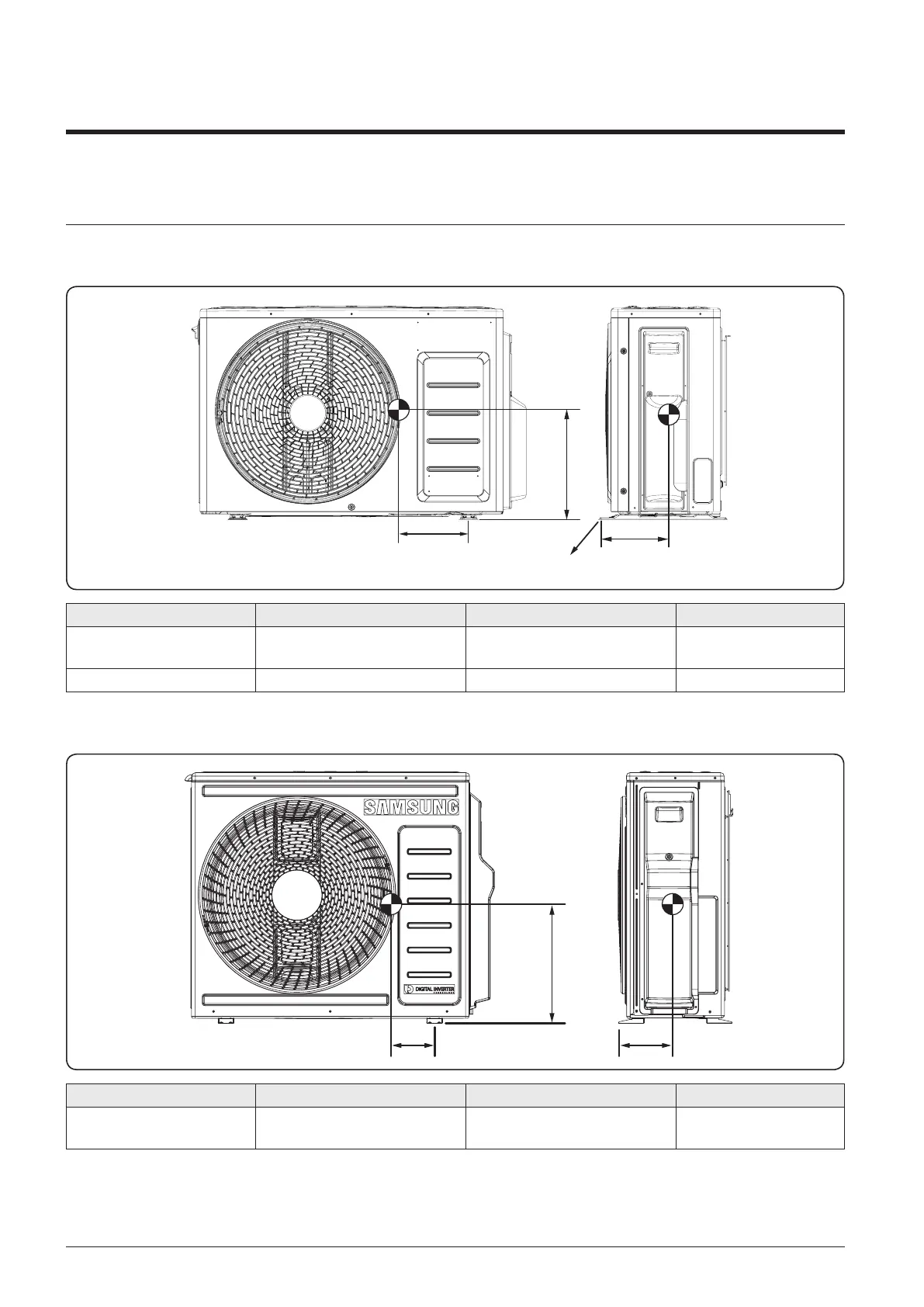

6-1. Outdoor unit
1
AJ040TXJ2KG/EU, AJ050TXJ2KG/EU, AJ052TXJ3KG/EU
Unit : mm
The position of foundation bolt
C
A
B
Model A B C
AJ040TXJ2KG/EU
AJ050TXJ2KG/EU
232 223 165
AJ052TXJ3KG/EU 219 289 150
2
AJ068TXJ3KG/EU, AJ080TXJ4KG/EU
Unit : mm
A
B
C
Model A B C
AJ068TXJ3KG/EU
AJ080TXJ4KG/EU
159 327 153
