E-
29
ENGLISH

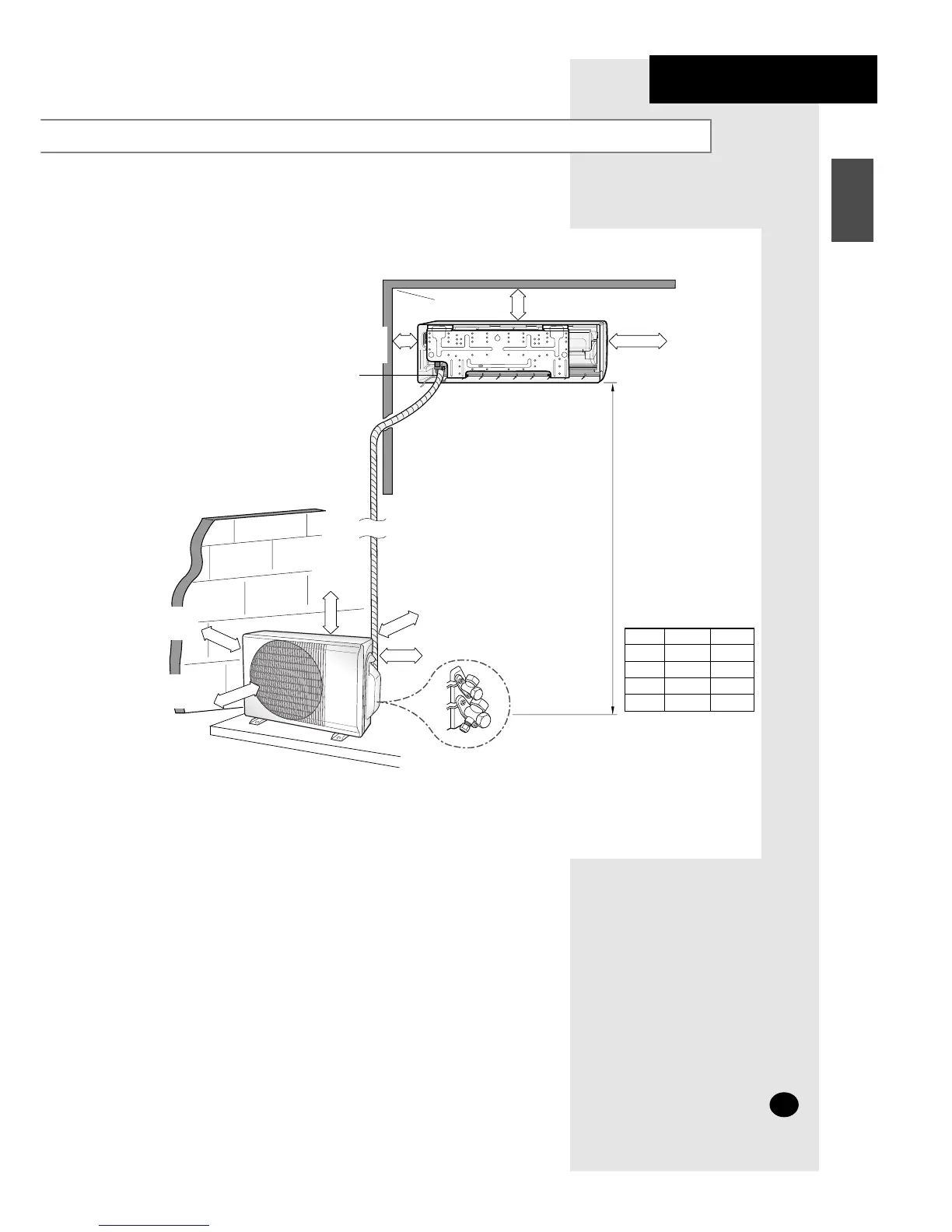

Respect the clearances and maximum lengths indicated in the diagram below when installing the unit.
The designs of the unit and the connection valve are subject to change according to the model.
125mm
(5inch)
or more
600mm
(24inch)
minimum
350mm(14inch)
minimum
100mm
(4inch)
minimum
600mm
(24inch)
minimum
100mm(4inch)
minimum
“L” m/ft.
maximum
“H” m/ft. maximum
Unit : m(ft.)
PREPARING THE INSTALLATION
Model
✴✴07/09✴✴
✴✴12✴✴
✴✴18✴✴
✴✴24✴✴
L
15(49ft 3in)
15(49ft 3in)
15(49ft 3in)
20(65ft 7in)
H
7(23ft)
7(23ft)
7(23ft)
8(26ft 3in)
30mm(1inch) or more
125mm(5inch)
or more
Wrap the refrigerant pipes and the drain
hose up in the absorbent pad and the
vinyl tape; refer to page 43.
To Next Page
