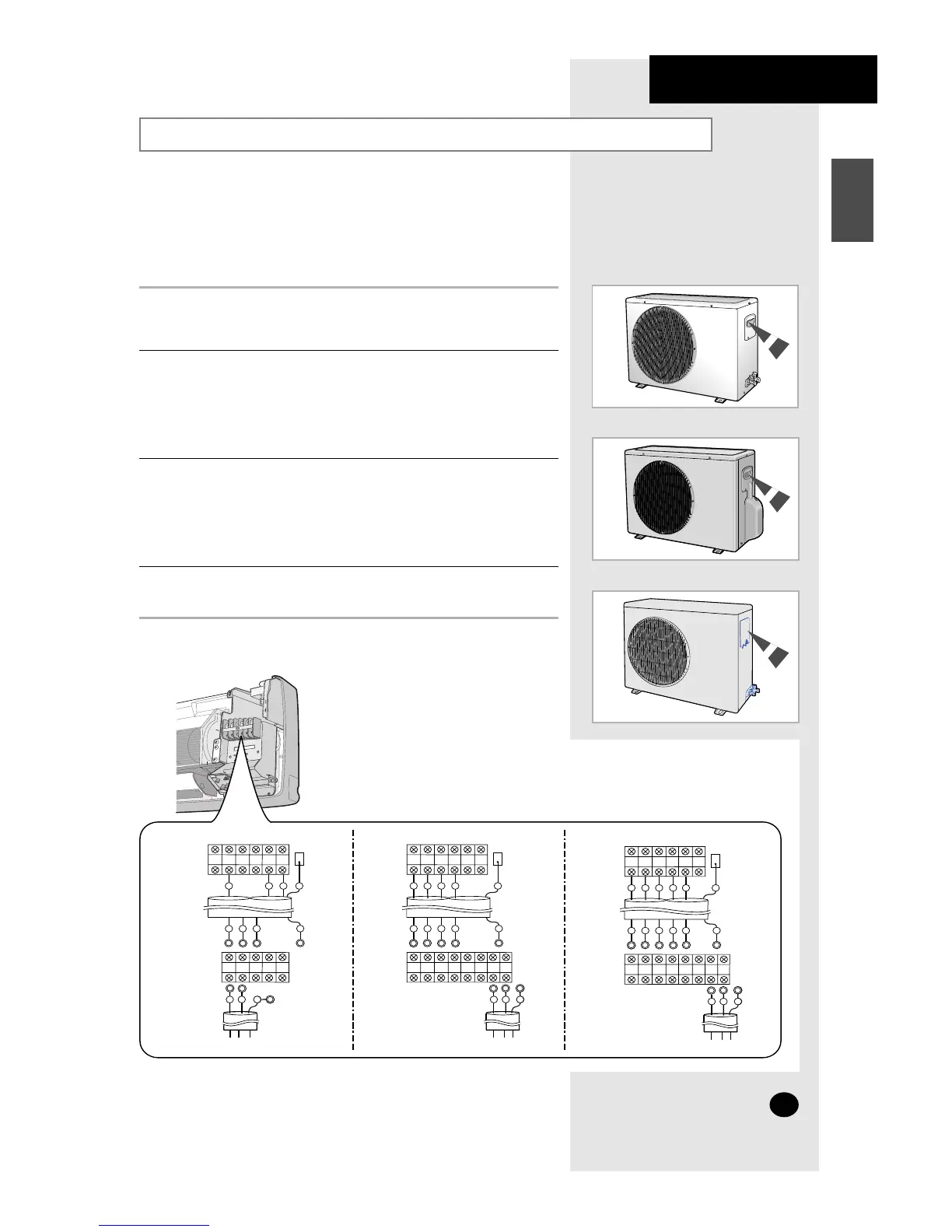

INSTALLING THE OUTDOOR UNIT
Connecting the Cables to the Outdoor Unit
One electric cable must be connected to the outdoor unit:
◆ The assembly cable connecting the indoor unit to the outdoor unit
1 Remove the terminal board cover on the side of the outdoor unit.
2 Connect the assembly cable to terminals as shown in the figure.
➢ Each wire is labelled with the corresponding terminal number.
3 Connect the earth wires to the earth terminals.
➢ Refer to the page 39 for further details on how to check
that earthing is correct.
4 Replace the terminal board cover, carefully tightening the screw.
✴✴07/09✴✴
✴✴12✴✴
✴✴18/24✴✴
N1 L1 1 2 3 4NL
N1 L1 1 2 34
3
2
1
L1
N1
E
3
2
1
L1
N1
E
E
N
L
E
N1 L1 1 2 3 4NL
N1 L1 1 2 34
2
1
L1
N1
E
2
1
L1
N1
E
E
N
L
E
NL123
N1 1 2 3 NL
1
L
N
EL
1
E
N
E
L
E
N
Indoor unit
Outdoor unit
Earth terminal
Circuit Breaker(Main Power) Circuit Breaker(Main Power)
Circuit Breaker(Main Power)
Indoor unit
Outdoor unit
Earth
terminal
Indoor unit
Outdoor unit
Earth
terminal
✴✴07/09/12✴✴ ✴✴18✴✴ ✴✴24✴✴
