e AW089CB/AW109CB/AW129CB/AW08ECB7/AW10ECB7/AW12ECB7
_stallation
9-1 _,;_-
9-2

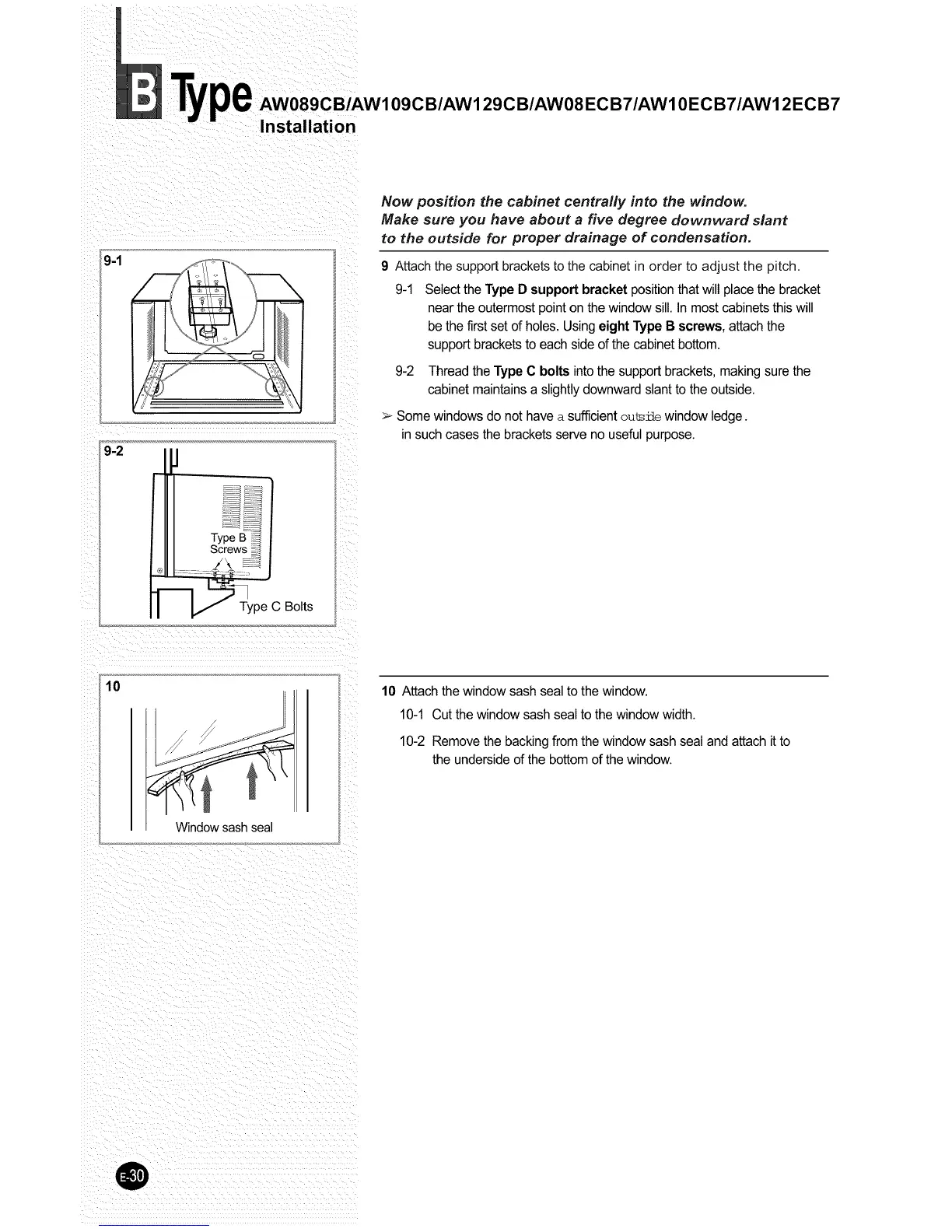

Now position the cabinet centrally into the window.
Make sure you have about a five degree downward slant
to the outside for proper drainage of condensation.
9 Attach the support brackets to the cabinet in order to adjust the pitch.
9-1 Select the Type D support bracket position that will place the bracket
near the outermost point on the window silt. In most cabinets this will
be the first set of holes. Using eight Type B screws, attach the
support brackets to each side of the cabinet bottom.
9-2 Thread the Type C bolts into the support brackets, making sure the
cabinet maintains a slightly downward slant to the outside.
>* Some windows do not have a sufficient outs_e window ledge.
in such cases the brackets serve no useful purpose.
Type C Bolts
10
Window sash seal
10 Attach the window sash seal to the window.
10-1 Cut the window sash seat to the window width.
10-2 Remove the backing from the window sash seal and attach it to
the underside of the bottom of the window.
@
