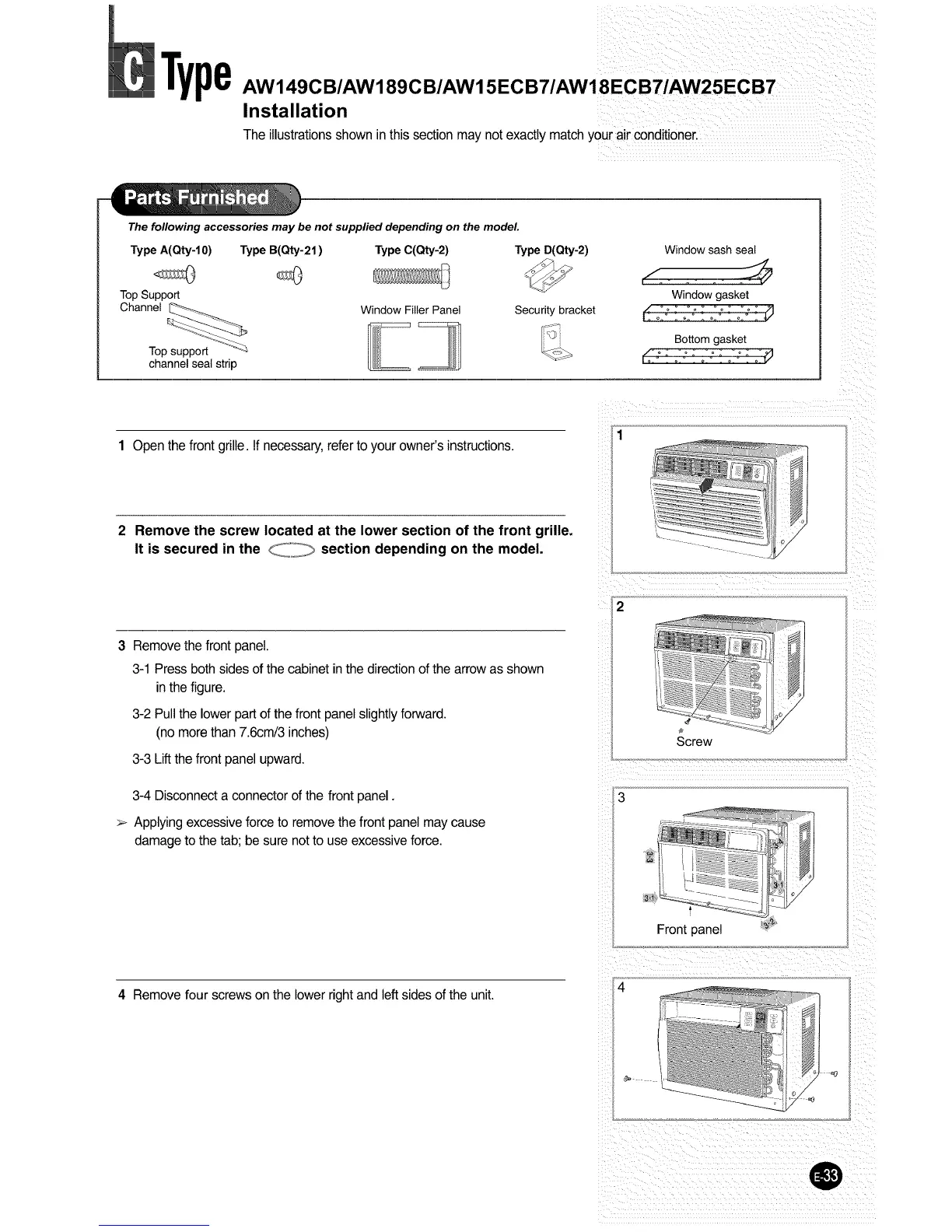

Type
AW149CB/AW189CB/AW15ECB7/AW18ECBT/AW25ECB7
Installation
The illustrations shown in this section may not exactly match your air conditioner.
The following accessories may be not supplied depending on the model.
Type A(Qty-10) Type B(Qty-21 ) Type C(Qty-2) Type D(Qty-2)
TopSupport
Channel _ Window Filler Panel
Top
channel seal strip
Security bracket
Windowsash seal
,-,? o o
Window gasket
oi:!oi:!o::!oi:i ,_
Bottomgasket
K,,:; o:° oor,o.,, o0
1 Open the front grille. If necessary, refer to your owner's instructions.
2 Remove the screw located at the lower section of the front grille.
It is secured in the ...........
...... _ section depending on the model.
3 Remove the front panel.
3-1 Press both sides of the cabinet in the direction of the arrow as shown
in the figure.
3-2 Pull the lower part of the front panel slightly forward.
(no more than 7.6cm/3 inches)
3-3 Lift the front panel upward.
3-4 Disconnect a connector of the front panel.
>- Applying excessive force to remove the front panel may cause
damage to the tab; be sure not to use excessive force.
Screw
" _+i .... \
Front pane _"
4 Remove four screws on the lower right and left sides of the unit.
