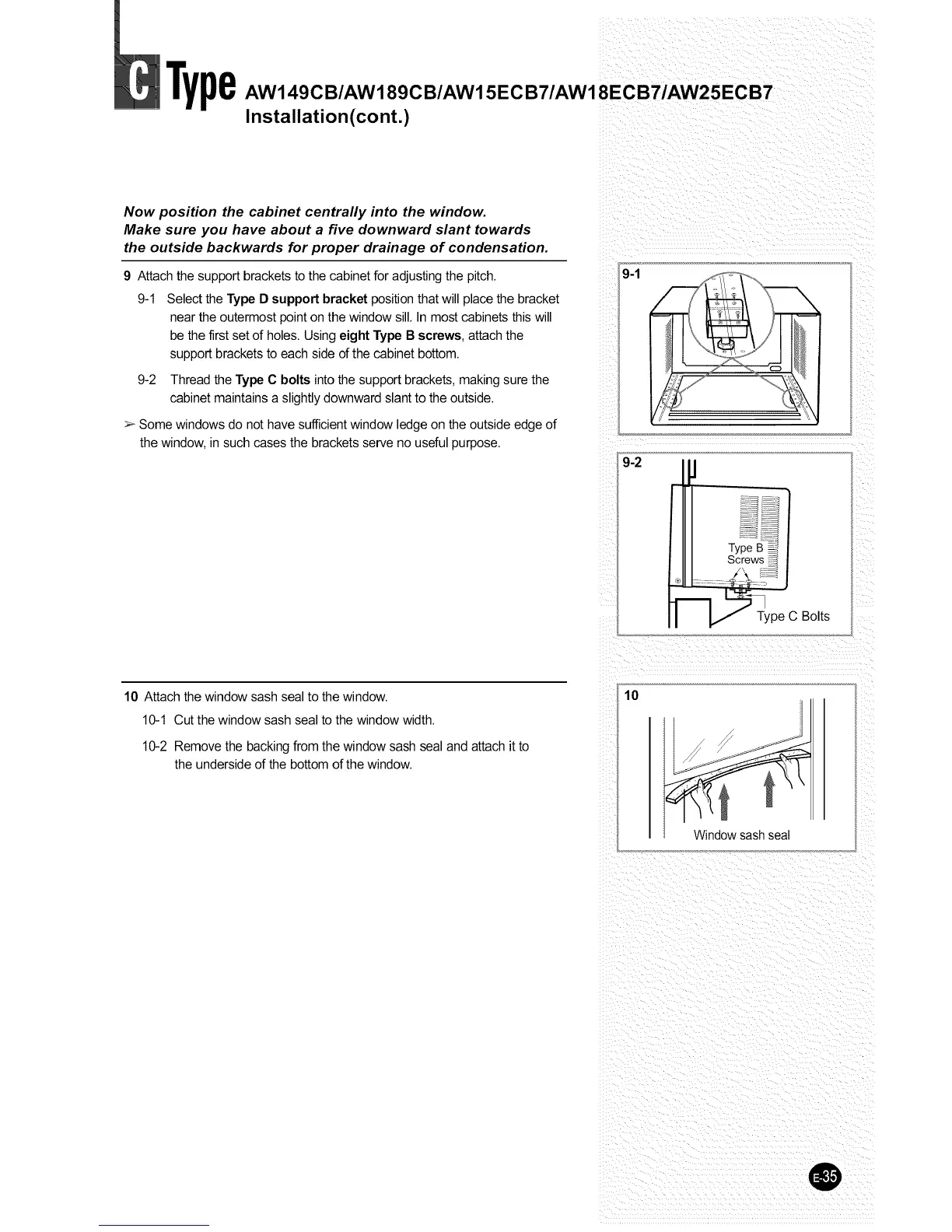

Type
AW149CB/AW189CB/AW15ECB7/AW18ECB7/AW25ECB7
Installation(cont.)
Now position the cabinet centrally into the window.
Make sure you have about a five downward slant towards
the outside backwards for proper drainage of condensation.
9 Attach the support brackets to the cabinet for adjusting the pitch.
9-t Select the Type D support bracket position that will place the bracket
near the outermost point on the window sill. In most cabinets this will
be the first set of holes. Using eight Type B screws, attach the
support brackets to each side of the cabinet bottom.
9-2 Thread the Type C bolts into the support brackets, making sure the
cabinet maintains a slightly downward slant to the outside.
> Some windows do not have sufficient window ledge on the outside edge of
the window, in such cases the brackets serve no useful purpose.
9-1
9-2
10 Attach the window sash seal to the window.
10-t Cut the window sash seal to the window width.
10-2 Remove the backing from the window sash seal and attach it to
the underside of the bottom of the window.
10
Window sash seal
@
