Samsung AZ09FATEA - Type A Disassembly

Samsung Electronics 4-3

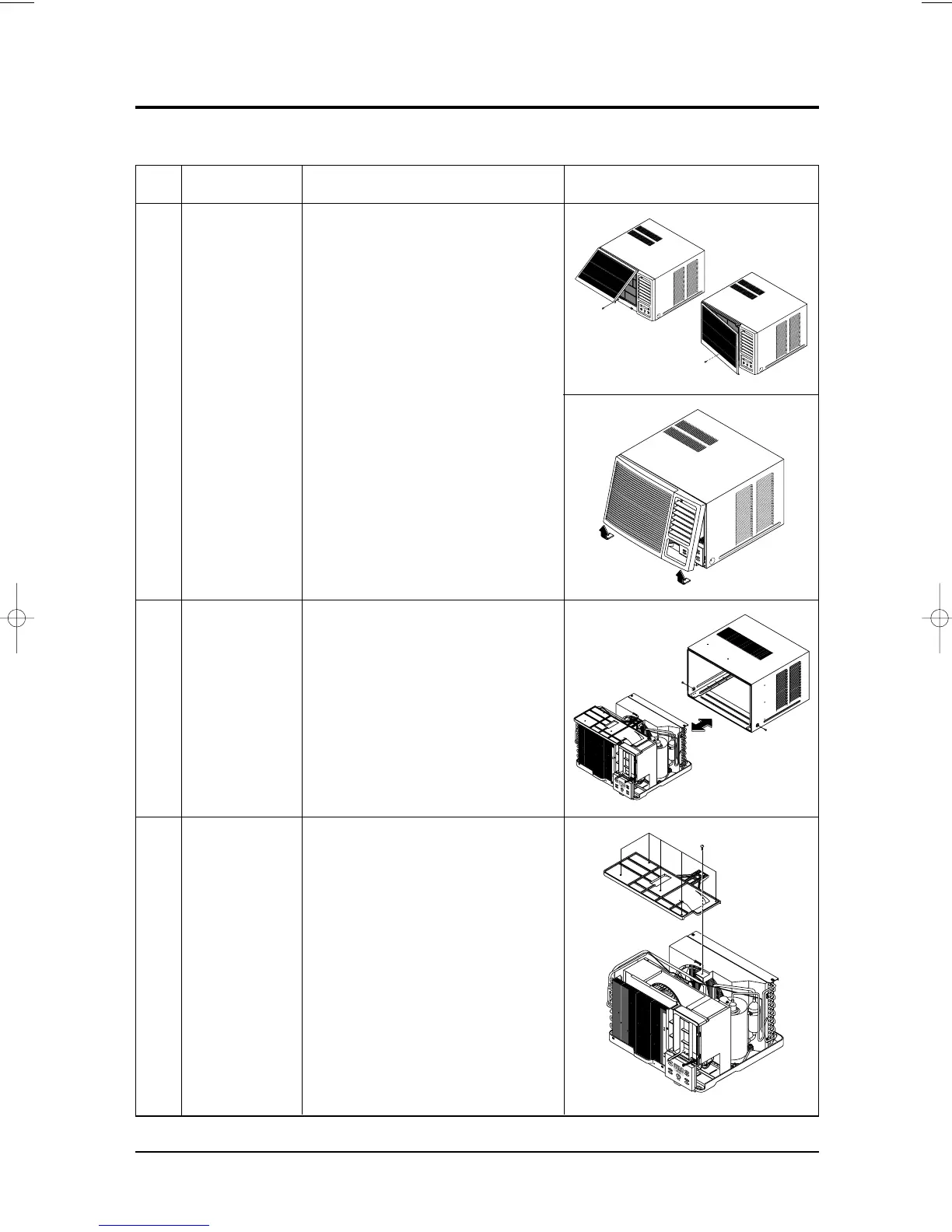

4-3 Disassembly and Reassembly Procedure (Type “A”)
Stop operating the air conditioner, and pull out the power cord before repair.
No. Part name Procedures Remarks
!
@
#
Ass'y Grill
Ass'y Cabinet
Ass'y
COVER EVAP
1. Pull the panel front and remove the screw
on the grille.
2. Hold the lower part of grill with two hands
while pressing down on both sides of the
lower part of the cabinet, pull it forward by
about 30, and the then lift it up for
removal.
1. Remove the two screws both side cabi-
net.
2. Pull the front both side, and remove the
unit from the cabinet.
1. Remove 6 screws on the COVER EVAP.
2. Remove the COVER EVAP.
P
O
W
E
R
/
M
O
D
E
*The type of front-panel
depends on models.
