Samsung AZ09FATEA - Main Unit

2-2 Samsung Electronics

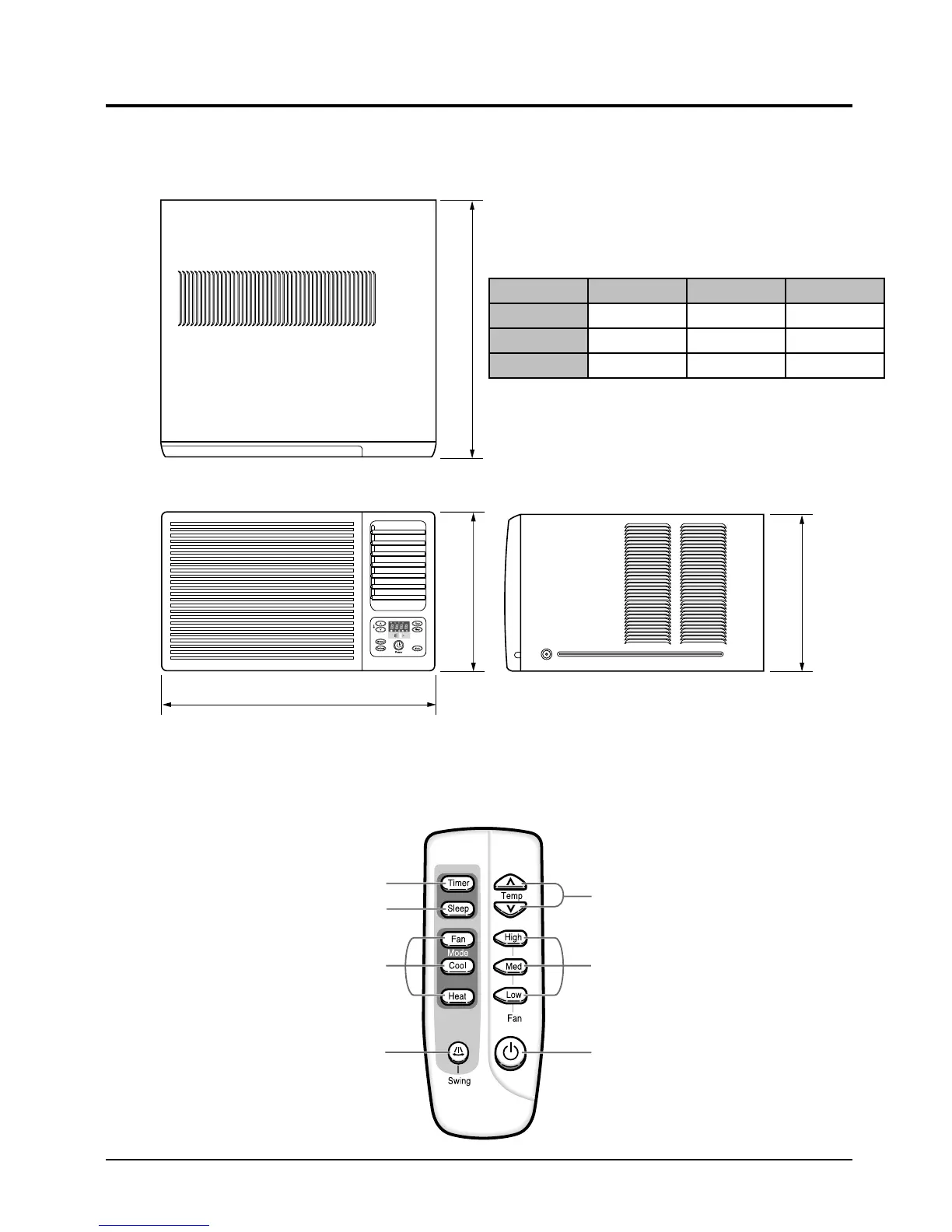

2-2 Dimensions
2-2-1 Main Unit
2-2-2 Remote Control
A
BB
C
Front view
Side view
Temperature adjustment
buttons
Fan speed adjustment
buttons
ON/OFF button
Timer setting button
Sleep timer setting button
Operating mode
selection buttons
Air flow blade swing button
(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 2-2
Type A B C
A 520 345 515
B 600 394 595
C 660 425 730
