Samsung B1930HD - 5. Exploded View & Part List; 5-1. Exploded View (B2330 HD)

5-1
5. Exploded View & Part List

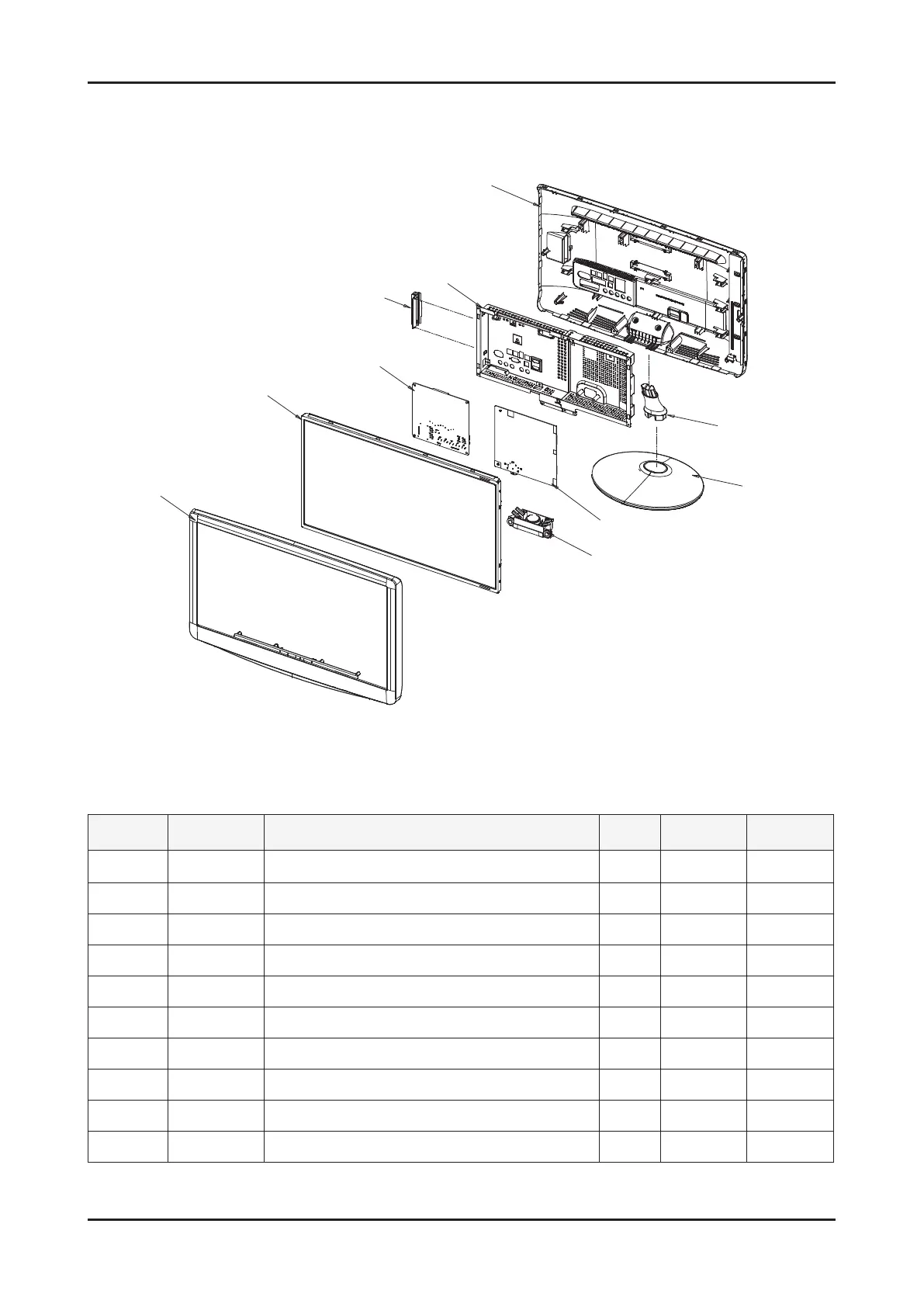

5-1. LS23PTDSF/EN Exploded View (B2330HD)
5-1-1. LS23PTDSF/EN Parts List
Location No. Code No. Description & Specication Q’ty SA/SNA Remark
F001A BN96-12455E ASSY COVER P-FRONT;Plum MFM 23 (B2330HD) 1 SA
M0215 BN07-00609A LCD-PANEL;LTM230HT01,SSRZTS,6Bit + Hi-FR 1 SA
SP01A BN96-12940D ASSY SPEAKER P;16ohm,4pin,3W,L:60 R:270 1 SA
M0014 BN94-02646E ASSY PCB MAIN;LS23PTDSF/EN 1 SA
P001A BN44-00392A AC VSS(I);IP-65155A,PLUM23,24"w(MFM),0.7 1 SA
CS02A BN96-14967A ASSY SHIELD P-COVER;Plum MFM 23 (B2330HD 1 SNA
AC352 BN63-06990A COVER-SIDE;PLUM_MFM_23,ABS,VO,BK07,K2331 1 SNA
MASB1 BN96-12487A ASSY STAND P-BODY;PLUM 23,ABS+PMMA(SF-09 1 SA
M0027 BN96-12485A ASSY STAND P-BASE;PLUM 22~24,ABS+PMMA(SF 1 SA
R001A BN96-14964A ASSY COVER P-REAR;Plum MFM 23 (B2330HD), 1 SA
F001A
M0215
M0014
AC352
CS02A
R001A
MASB1
M0027
P001A
SP01A
