Samsung CE283DN User Manual

3
GB

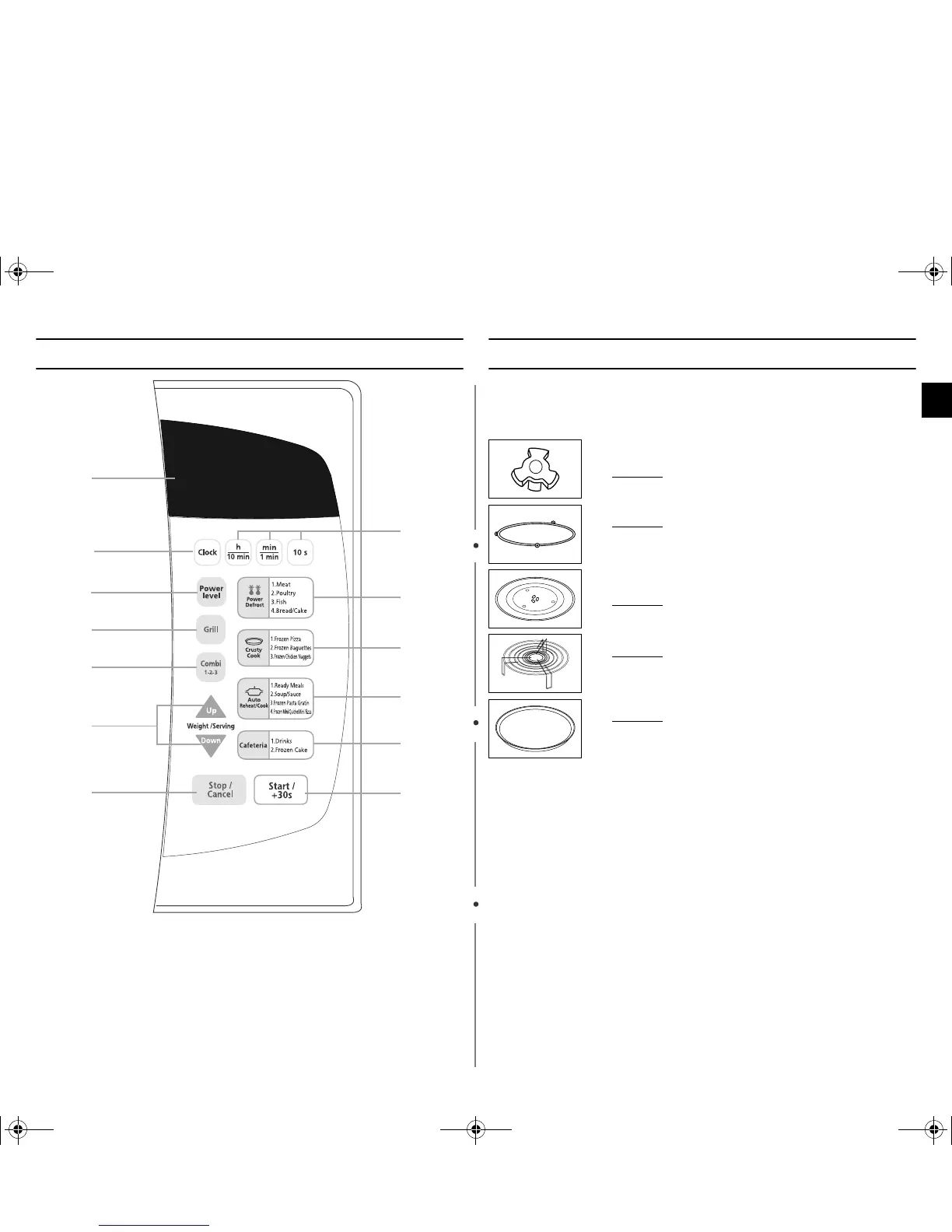

Control Panel Accessories
Depending on the model that you have purchased, you are supplied
with several accessories that can be used in a variety of ways.
☛ DO NOT operate the microwave oven without the roller ring and
turntable.
1. DISPLAY
2. CLOCK SETTING
3. MICROWAVE/POWER LEVEL
MODE SELECTION
4. GRILL MODE SELECTION
5. COMBI MODE SELECTION
6. UP/DOWN BUTTON (Weight,
Serving size)
7. STOP/CANCEL BUTTON
8. TIME SETTING
9. AUTO POWER DEFROST
FEATURE
10. AUTO CRUSTY COOK
SELECTION
11. AUTO REHEAT/COOK
SELECTION
12. CAFETERIA SELECTION
13. START BUTTON
1
3
4
2
13
5
6
7
8
9
10
11
12
1. Coupler, already placed over the motor shaft in the base
of the oven.
Purpose :
The coupler rotates the turntable.
2. Roller ring, to be placed in the centre of the oven.
Purpose :
The roller ring supports the turntable.
3. Turntable, to be placed on the roller ring with the centre
fitting to the coupler.
Purpose :
The turntable serves as the main cooking
surface; it can be easily removed for cleaning.
4. Metal rack, to be placed on the turntable.
Purpose :
The metal rack can be used in grill and
combination cooking.
5. Crusty plate, see page 11 to 12.
Purpose :
The crusty plate when using auto crusty cook
function or manual crusty cook function.
jlY_ZkuniUGGwGZGG~SGtGX`SGYWWZGGXXa\YGht

Samsung CE283DN Specifications

Power

power source	230V ~ 50 Hz
power consumption (microwave)	1300 W
power consumption (grill)	1100 W
power consumption (combined mode)	2400 W
output power (IEC-705)	100 W/850 W

Operating Frequency and Magnetron

operating frequency	2450 MHz
magnetron	OM75P(31)
cooling method	Cooling fan motor

Weight and Dimensions

dimensions (outside)	489 x 275 x 398 mm
dimensions (oven cavity)	330 x 211 x 329 mm
volume	23 liter
weight	15 kg approx
