Deciding on where to install the indoor unit (Continued)
5
6
3
4
1
2
45741
64
160
190
57 57
57 57
208
310
158 138
68
1000 or more
840
26025 25
290
840
322
305
246
242
298
200
258
Adjustable

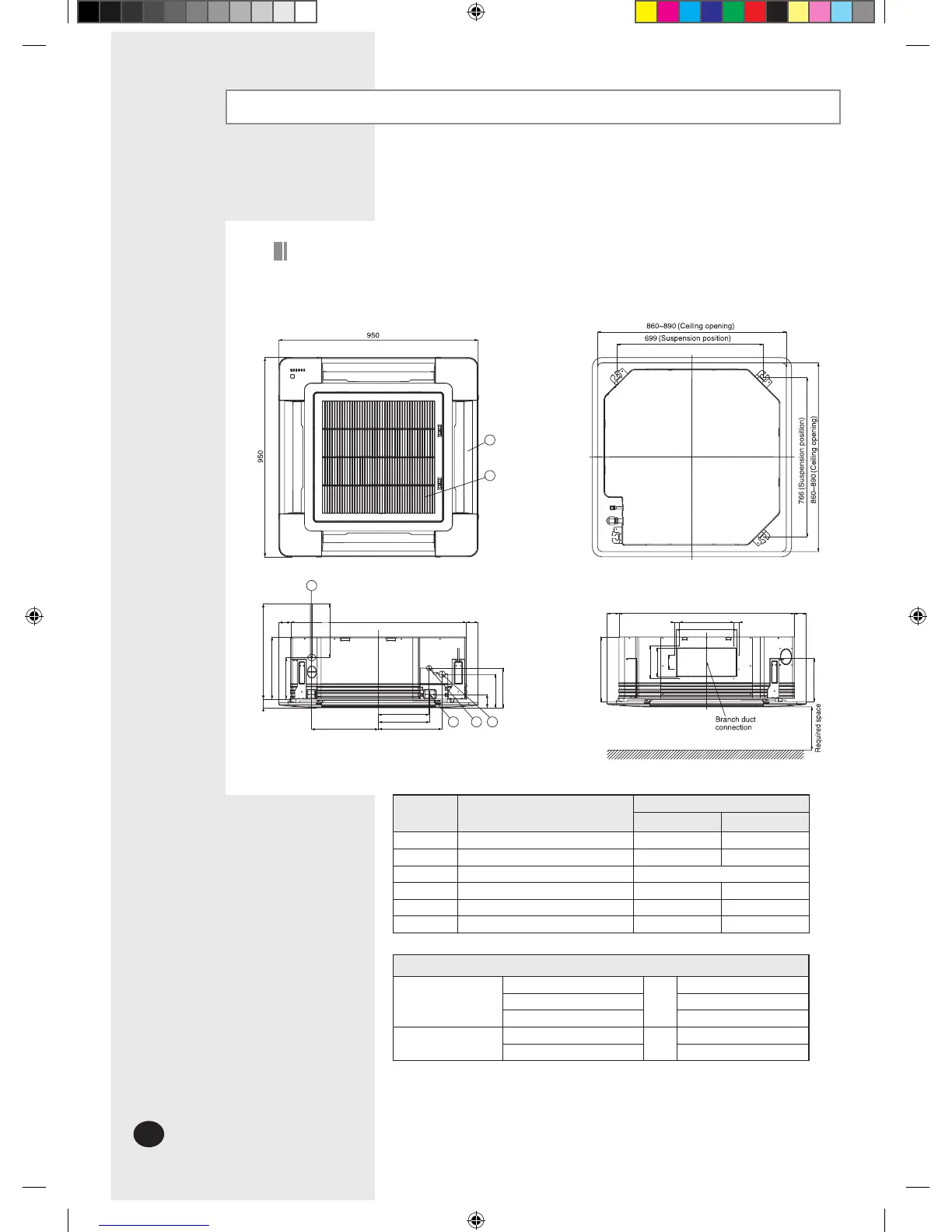

Drawing of the indoor unit
Unit : mm
No. Name
Description
105 140
1 Liquid pipe connection ø9.52 ø9.52
2 Gas pipe connection ø15.88 ø19.05
3 Drain pipe connection OD 32, ID 26
4 Drain supply connection - -
5 Air discharge grille - -
6 Air suction grille - -
Dimension and weight
Net dimension
Indoor unit
mm
840X298X840
Panel size 950X950X35
Outdoor unit 930X1135X370
Net weight
Indoor unit+Panel
kg
29+7
Outdoor unit
95
