EXPLODED VIEW & PARTS LIST
Service Manual

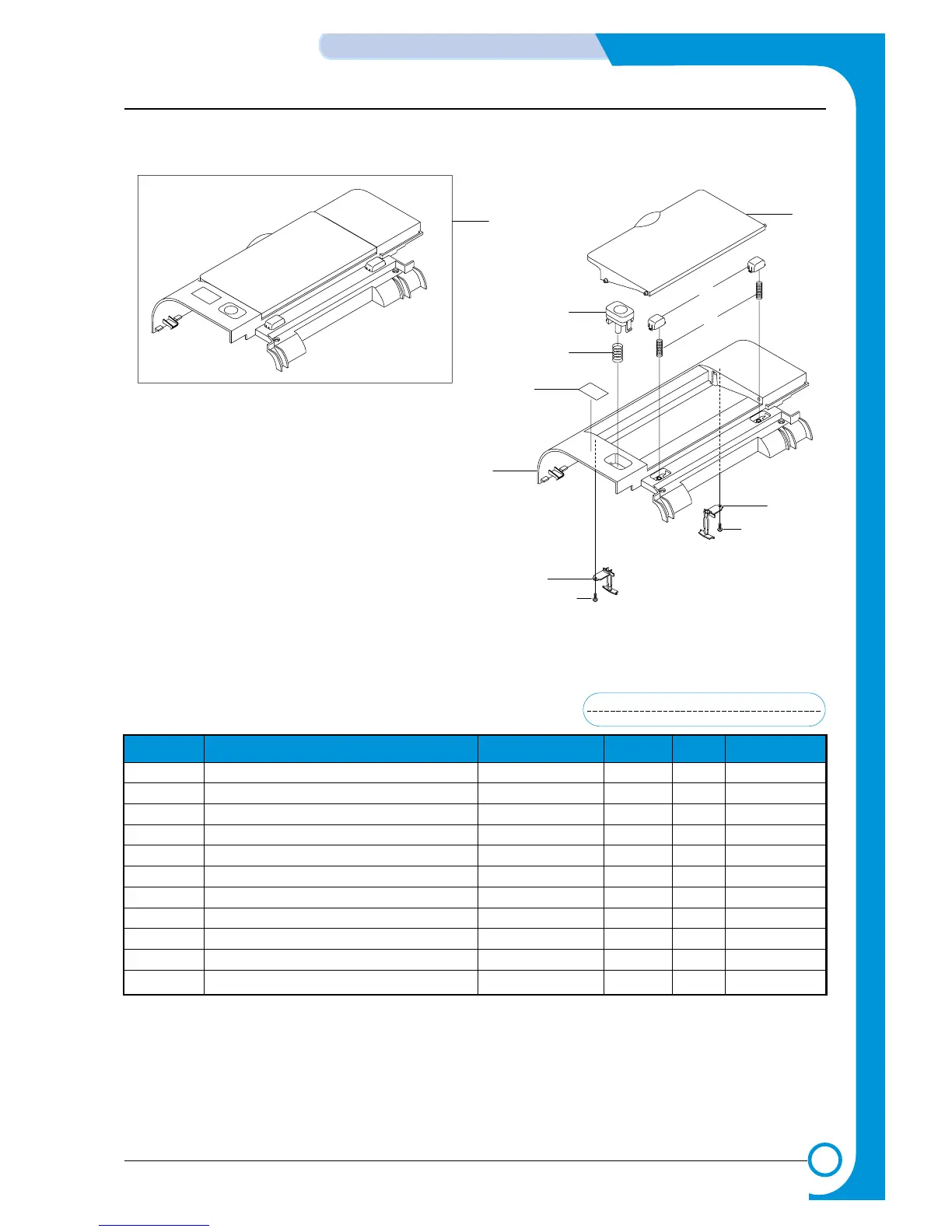

9.3 Cover Top Exploded View
Cover Top Assembly Parts List
6
5
3
0
2
9
1
7
S15
8
S15
4
No. Description SEC.Code Q’ty SA Remark
0 MEA HOU-COVER TOP JC97-01765A 1 O
1 PMO-COVER TOP JC72-01204A 1 X
2 SPRING-CS 6107-000117 1 X
3 PMO-COVER TOP BUTTON JC72-01205A 1 X
4 SPRING-CS 6107-001198 2 X
5 PMO-COVER TOP OPENER JC72-01206A 2 X
6 PMO-COVER TOP STACKER JC72-01207A 1 O
7 STOPPER-STACKER F JC61-00714A 1 X
8 STOPPER-STACKER R JC61-00715A 1 X
9 LABEL(P)-TOP JC68-01181A 1 X
S15 SCREW-TAPTITE 6003-000261 2 X
SA : Service Available
O : Service available X : Service not available

Samsung CLP-500 Specifications

General

Color	Yes
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Maximum internal memory	192 MB
Sound pressure level (printing)	48 dB
Total input capacity	250 sheets
Maximum duty cycle	35000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	510 x 467 x 405 mm
