Connection Panels (continued)
➢
The actual configuration on your TV may be different, depending on
your model.
INPUT 1
MONITOR
-OUT
INPUT 2
VIDEO
(
MONO
)
L-AUDIO-R
INPUT 1
MONITOR
-OUT
INPUT 2
VIDEO
(
MONO
)
L-AUDIO-R
RGB
2
1

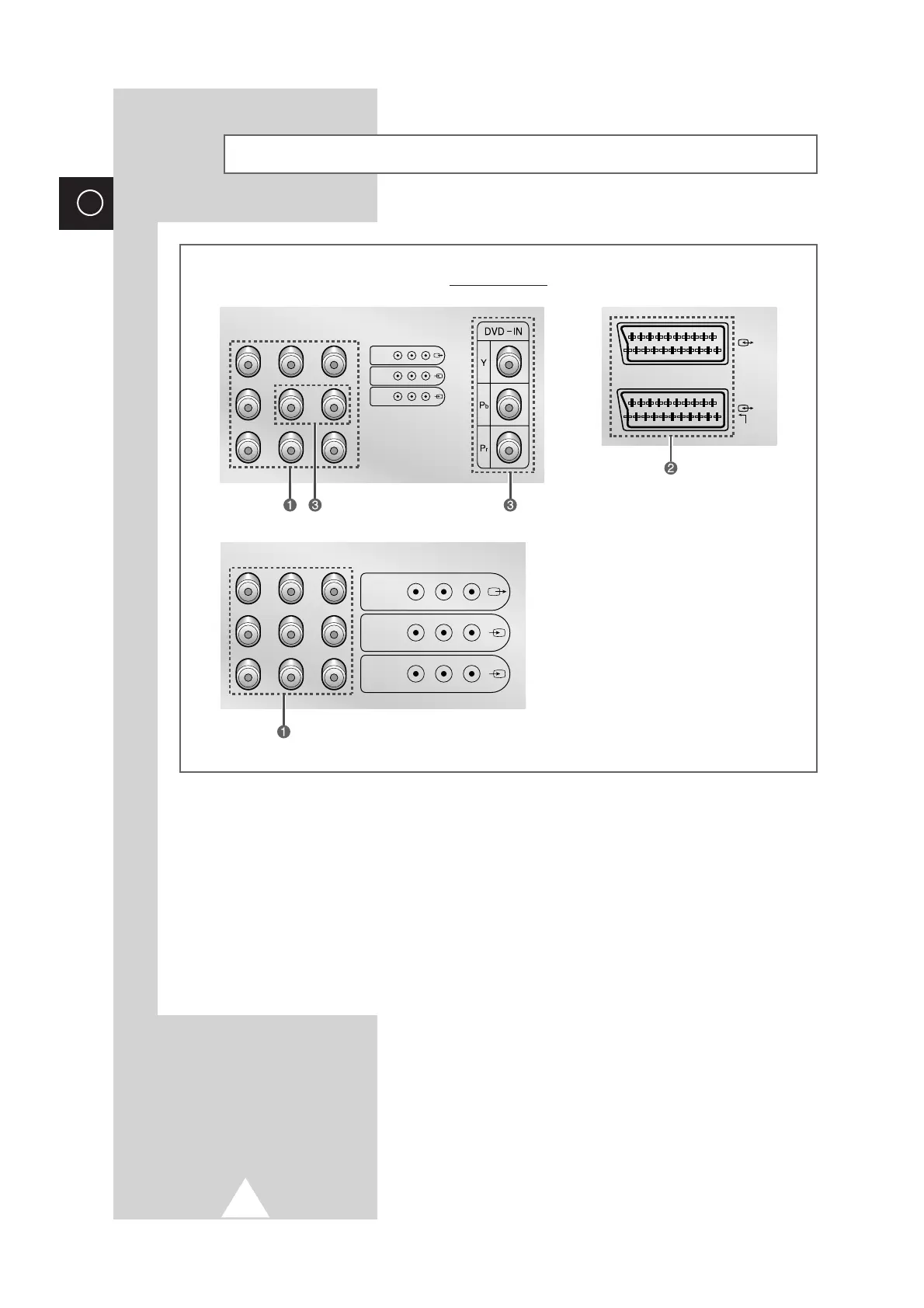

Ϋ Connecting External A/V Devices (INPUT/OUTPUT)
The connectors (RCA or SCART) are used for equipment such as video disc players, video game devices,
camcorder and VCR.
ˇ Connecting DVD
The RCA (Y + Pb + Pr + AUDIO-L and R) connectors are used for a DVD.
➣
When using the mono equipment such as camcorders, video disc players and some video game
devices, connect to the “AUDIO-L” input connector.
Rear of the TV
