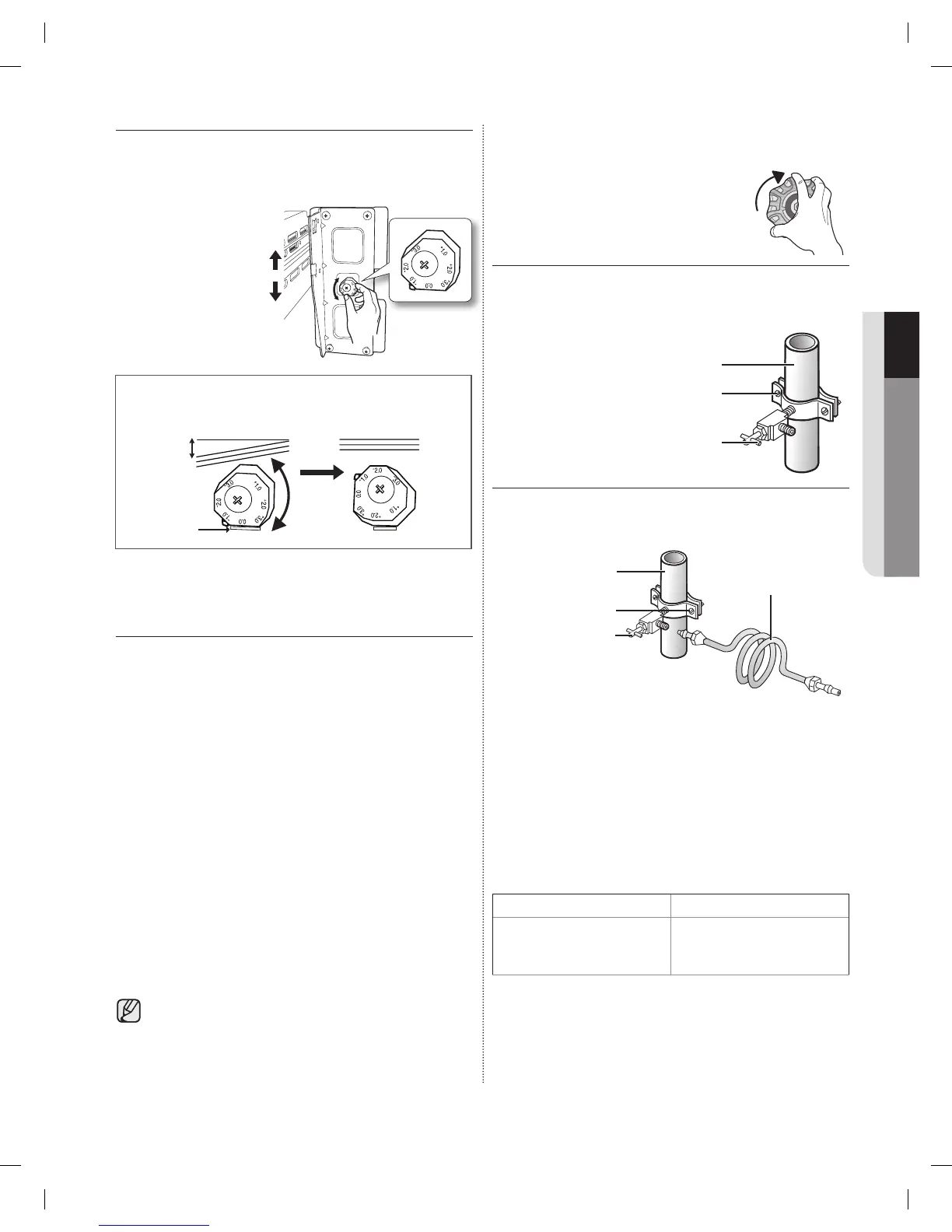

3. Find the best level to align the door slope.
• After adjustment, tighten the controller screw ( 3 )
and then the philips screws.
INSTALLING THE WATER
DISPENSER LINE
A water dispenser with a filter is one of the helpful
features on your new refrigerator. To help promote
better health, the water filter removes unwanted
particles from your water. However, it does not
sterilize or destroy microorganisms. You may need to
purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water
pressure of 20~125 psi is required.
Under normal conditions, a 170 cc (5.75 oz.) cup can
be filled in about 10 seconds.
If the refrigerator is installed in an area with low water
pressure (below 20psi), you can install a booster pump
to compensate for the low pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator is
properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
Water line installation kits are available at extra
cost from your dealer. We recommend using a
water line installation kit that contains copper
tubing and ¼” compression nut.
Connecting to the water supply line
1. First, shut off the main water
supply.
2. Locate the nearest cold water drinking line and
install the pipe clamp and shut off valve.
3. Connect the water line installation kit to the shut
off valve.
Connecting the water supply line to the
refrigerator.
There are several items that you need to purchase to
complete this connection.
You may find these items sold as a kit at your local
hardware store.
Use Copper Tubing Use Plastic Tubing
• ¼” copper tubing
• ¼” compression nut (1pc)
• Ferrule (2pc)
• ¼” plastic tubing
→
Molded end(Bulb)
• ¼” compression nut (1pc)
Example) The slope is about 0.08inch (2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
Slope
Reference
plane
Pipe clamp
Cold water line
Shut off valve
Shut off valve
Pipe clamp
Cold water line
Water line installation kit
To Next Page
