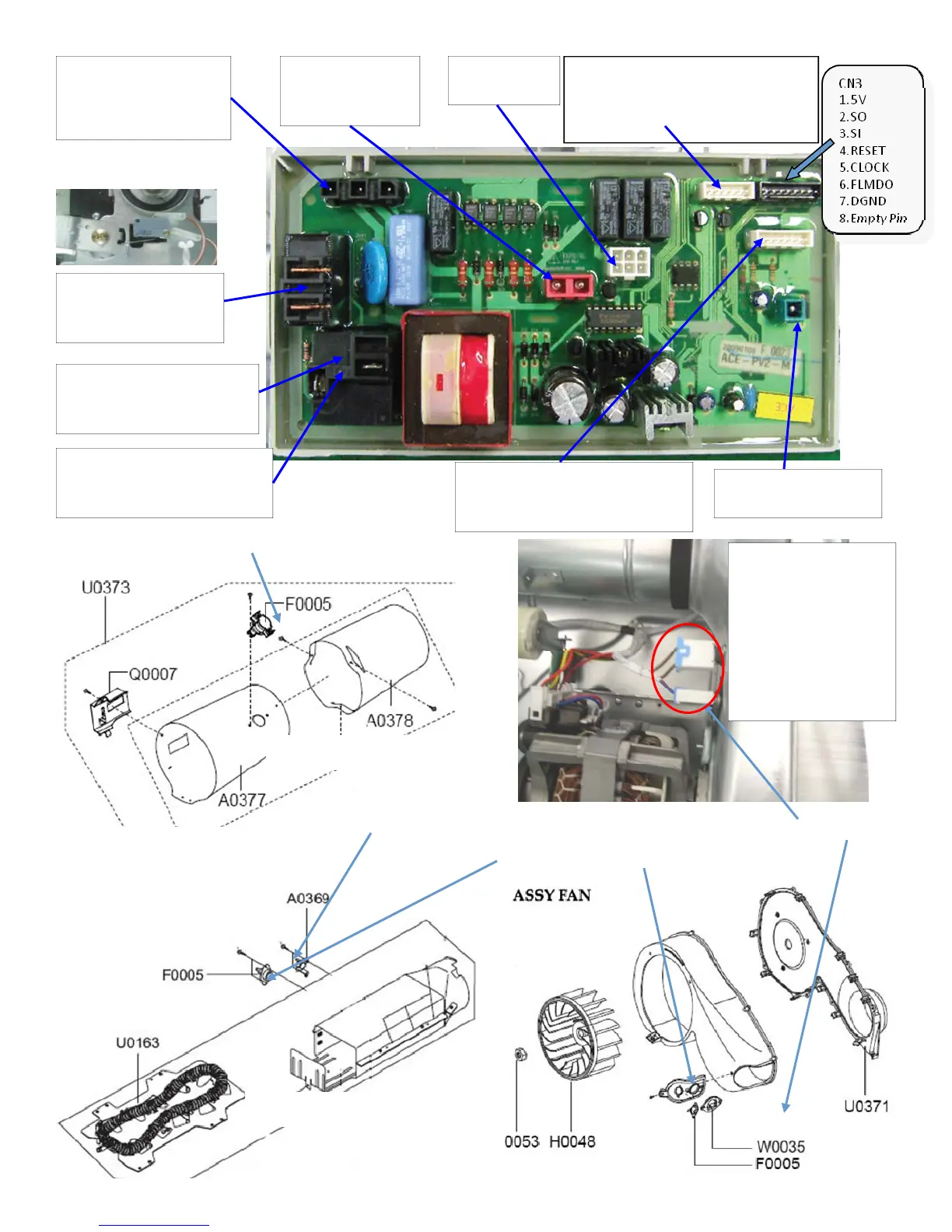

Ass’y Duct Heater (Electric)
Ass’y Duct (Gas)
Ass’y Fan
F0005 = DC47-00017A
A0369 = DC47-00015A
F0005 = DC47-00018A
Thermistor W0035 = DC32-00007A
F0005 = DC47-00016A
CN1
1 120vac N (Brn)
2 Sub PCB (Wht)
3 Sub PCB (Yel)
Relay 1
1 Motor Belt Sw (Brn)
2 120vac L1 (Blk)
Relay 6
1 Gas Hi Limit T-Stat (Blu)
2 120vac L1 (Blk)
Relay 6
1 Heater Cut Off T-Stat (Blu)
2 120vac L1 (Blk)
CN5
1 Lamp (Vio)
CN6
1 Earth Ground (Grn)
CN4
3-6 Thermistor (Blu-Red)
4-5 Moisture Sensor (Pnk-Org)
CN7
1 Motor #6 (Blk)
2 Door Sw (Blu)
New Version of
Blower Housing, it
may be necessary to
separate the harness
wrap on replacement
housing. Please
maintain shielding
on the low voltage
wires.
CN2
1. Comm Port (TX) 2. Comm Port ( RX )
3. Sub Reset 4. DGND 5. 5V 6. 15V
To Next Page
