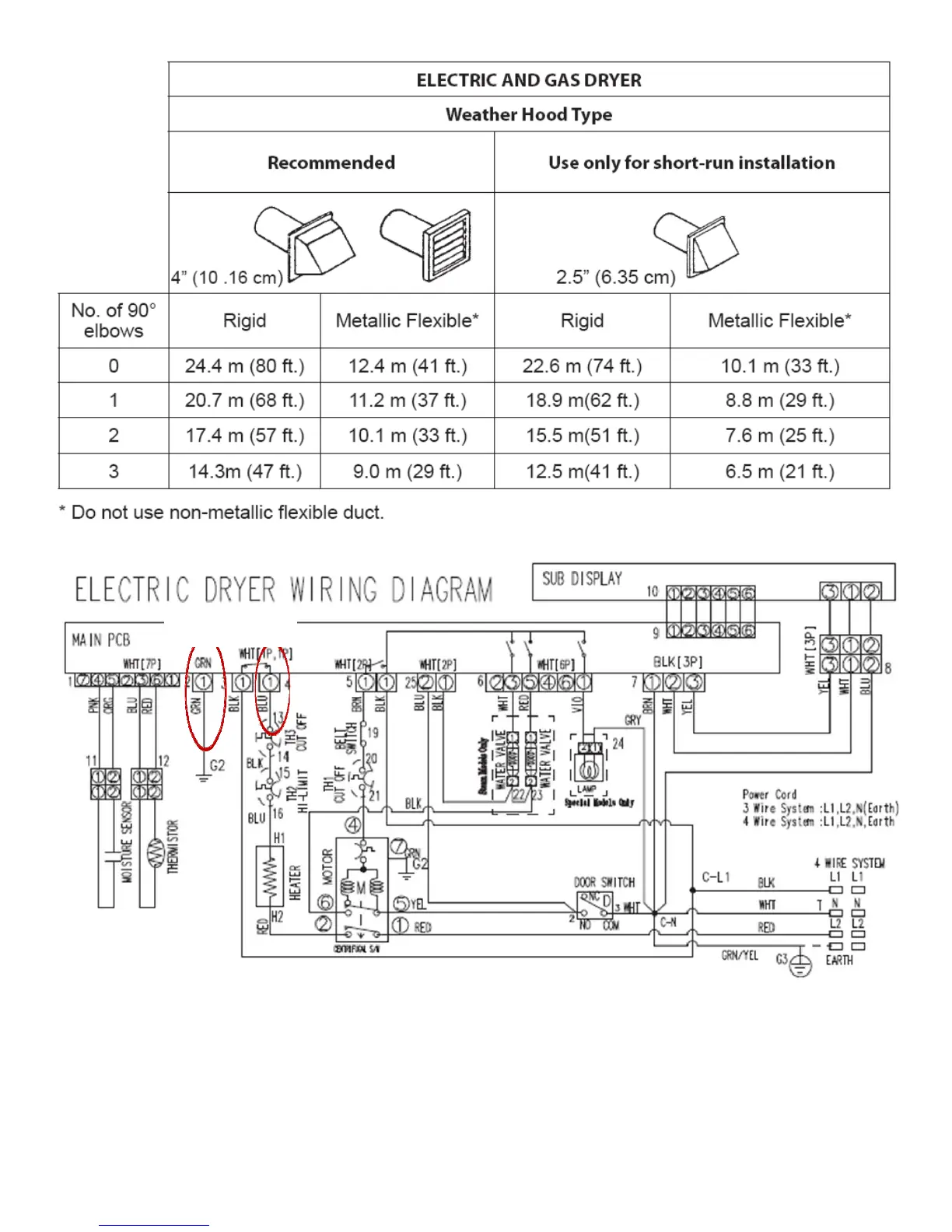

Samsung DV331AEW - Ducting Guidelines and Electric Heater Testing; Dryer Venting Recommendations; Testing Electric Heater Circuit

RY6 CN6
Testing Electric Heater circuit.
Disconnect Blue wire from RY6, turn power on, start dryer read voltage between RY6 Blue wire and CN6
Green wire.
Reading of 120VAC means a proper operating heater circuit. 0VAC means open in circuit.
To test thermostats use ohm meter on lowest scale, any resistance replace component
See page 4 for Main PCB layout for testing.
