Samsung DVM Chiller - Outdoor Unit Hydro - Water Side Considerations

Chiller Basic Installation
40
Outdoor Unit Hydro
Water side considerations
▪ Chilled water/Hot water loop minimum capacity
▪ 10 Ton: 72 gallons
▪ 15 Ton: 103 gallons
▪ Additional storage tank may be required
▪ Water loop flow rate
▪ 10 Ton: 16 – 48 gpm
▪ 15 Ton: 17 – 68 gpm
▪ Maximum water pressure: 145 psi

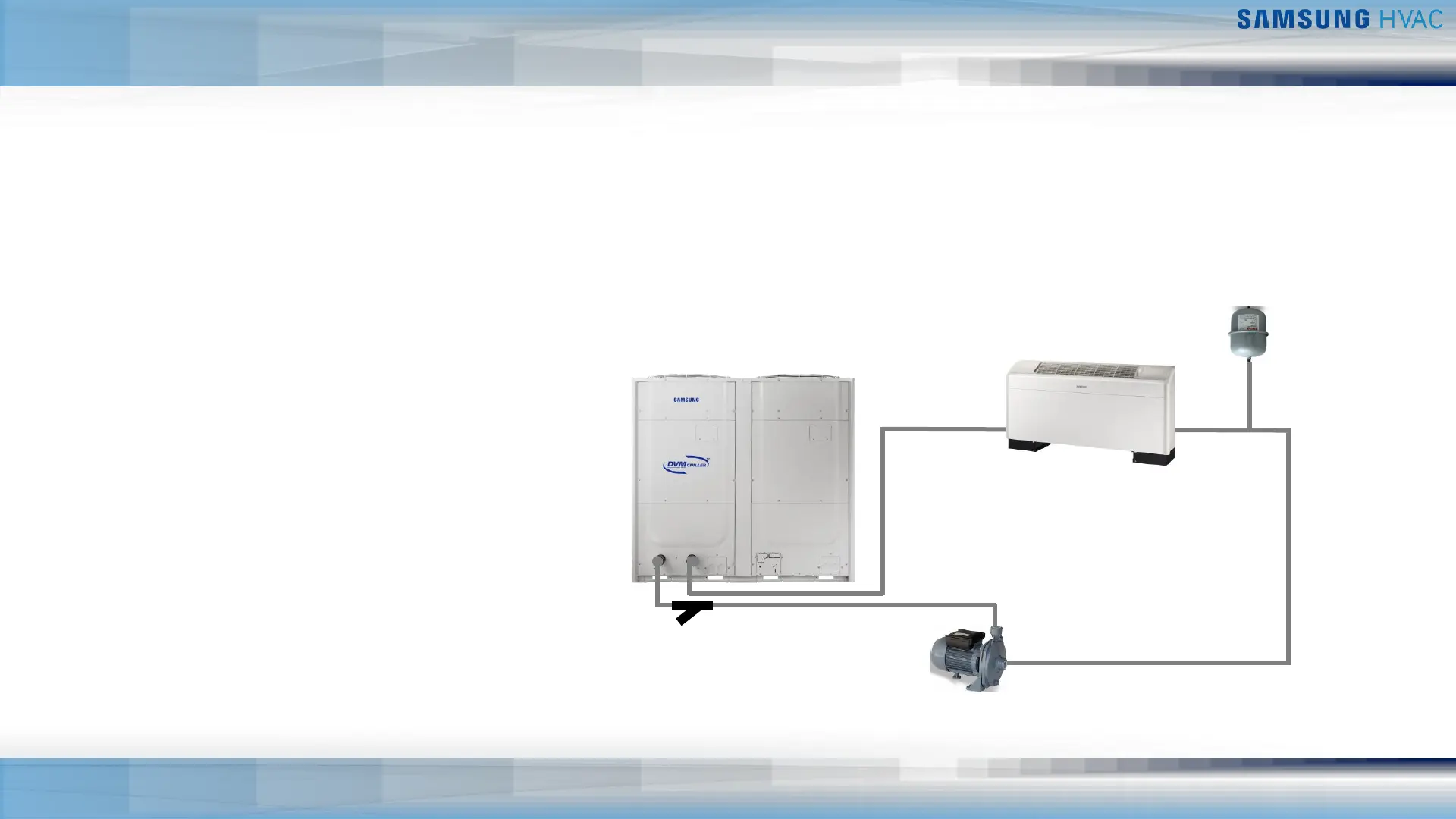

FCU’s
Expansion Tank
