41
Chiller Basic Installation

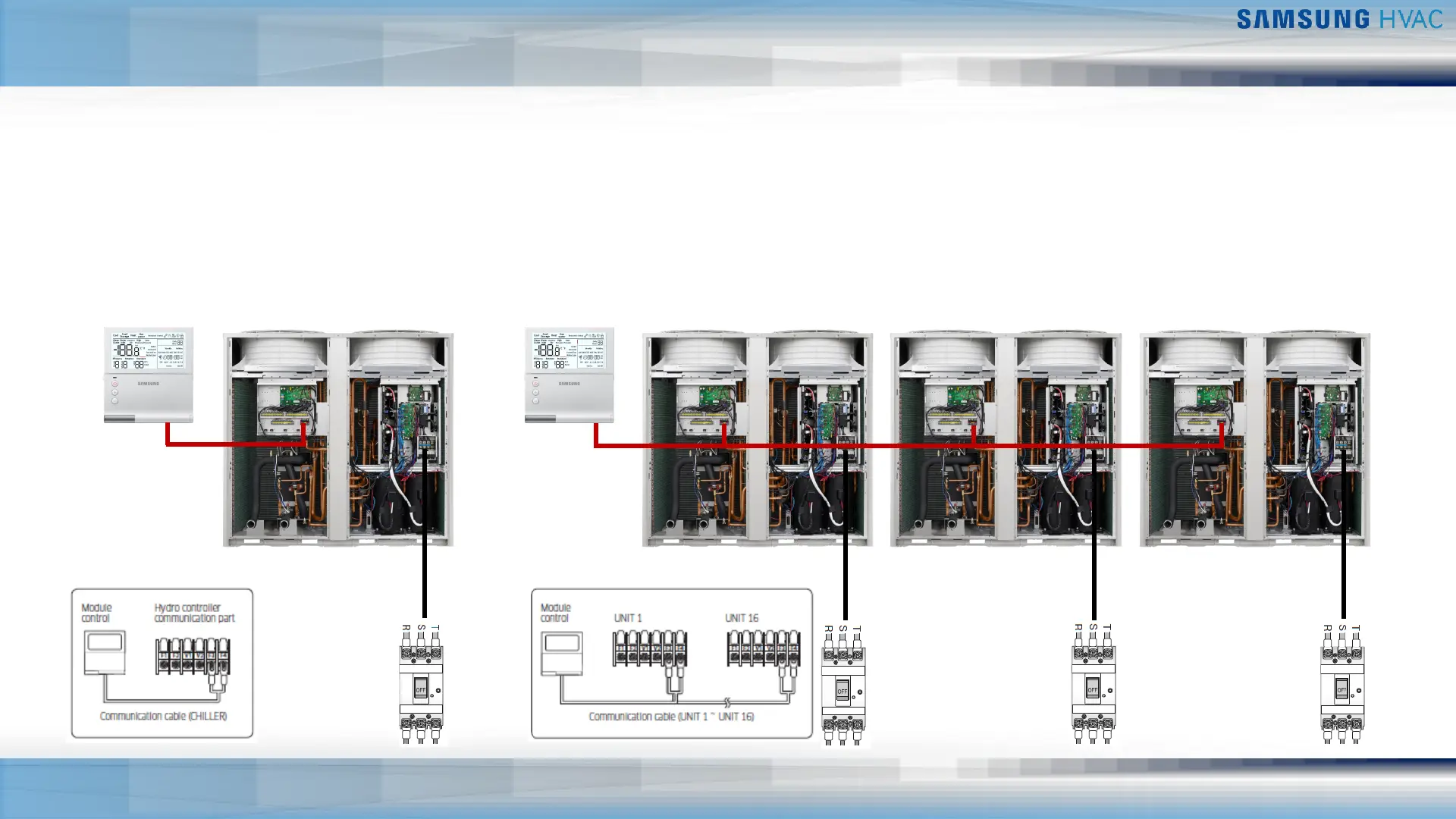

Outdoor Unit Wiring
▪ Module remote controller is mandatory for chiller operation
▪ Each chiller unit requires a dedicated line voltage circuit
▪ State and local electrical codes must be followed
F3/F4
Single Chiller Unit
Hydro
Control
VRF
Control
MCCB
F3/F4
Unit 1 Unit 2 Unit 3
Hydro
Control
Hydro
Control
Hydro
Control
VRF
Control
VRF
Control
VRF
Control
MCCB
MCCB
MCCB
