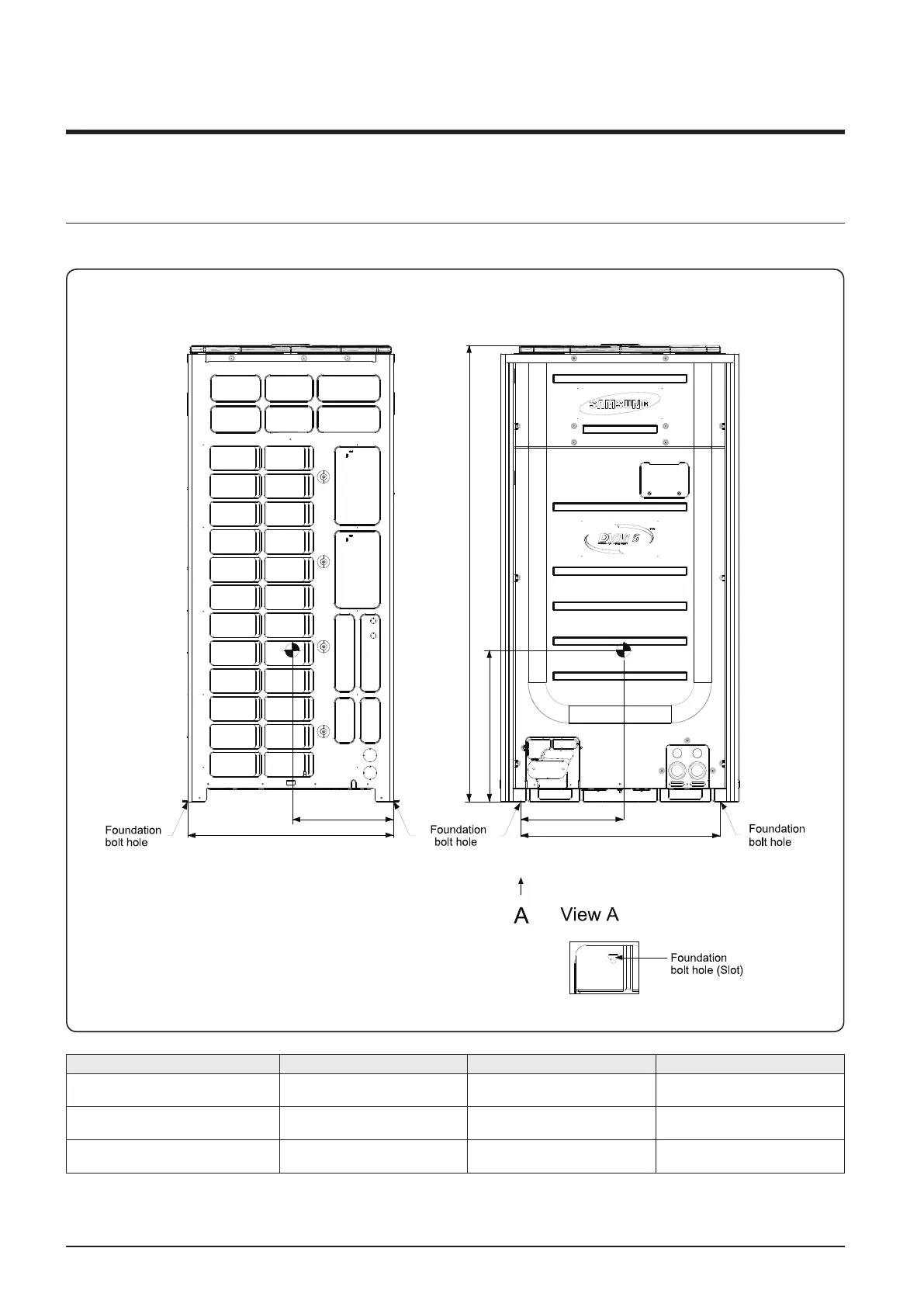

5. Center of Gravity
Outdoor unit
• AM080JXVHGH/EU, AM100JXVHGH/EU, AM120JXVHGH/EU, AM080JXVAGH/EU, AM100JXVAGH/EU, AM120JXVAGH/EU
761
[2’-6”]
740
[2’-5”]
1695
[5'-6 3/4"]
A
C
B
Units : mm [inches]
Model A B C
AM120∗∗∗∗∗∗
361
[1’-3/4”]
455
[1’-6”]
560
[1’-10”]
AM100∗∗∗∗∗∗
336
[1’-1 1/4”]
455
[1’-6”]
560
[1’-10”]
AM080∗∗∗∗∗∗
336
[1’-1 1/4”]
455
[1’-6”]
560
[1’-10”]
