5. Center of Gravity
102

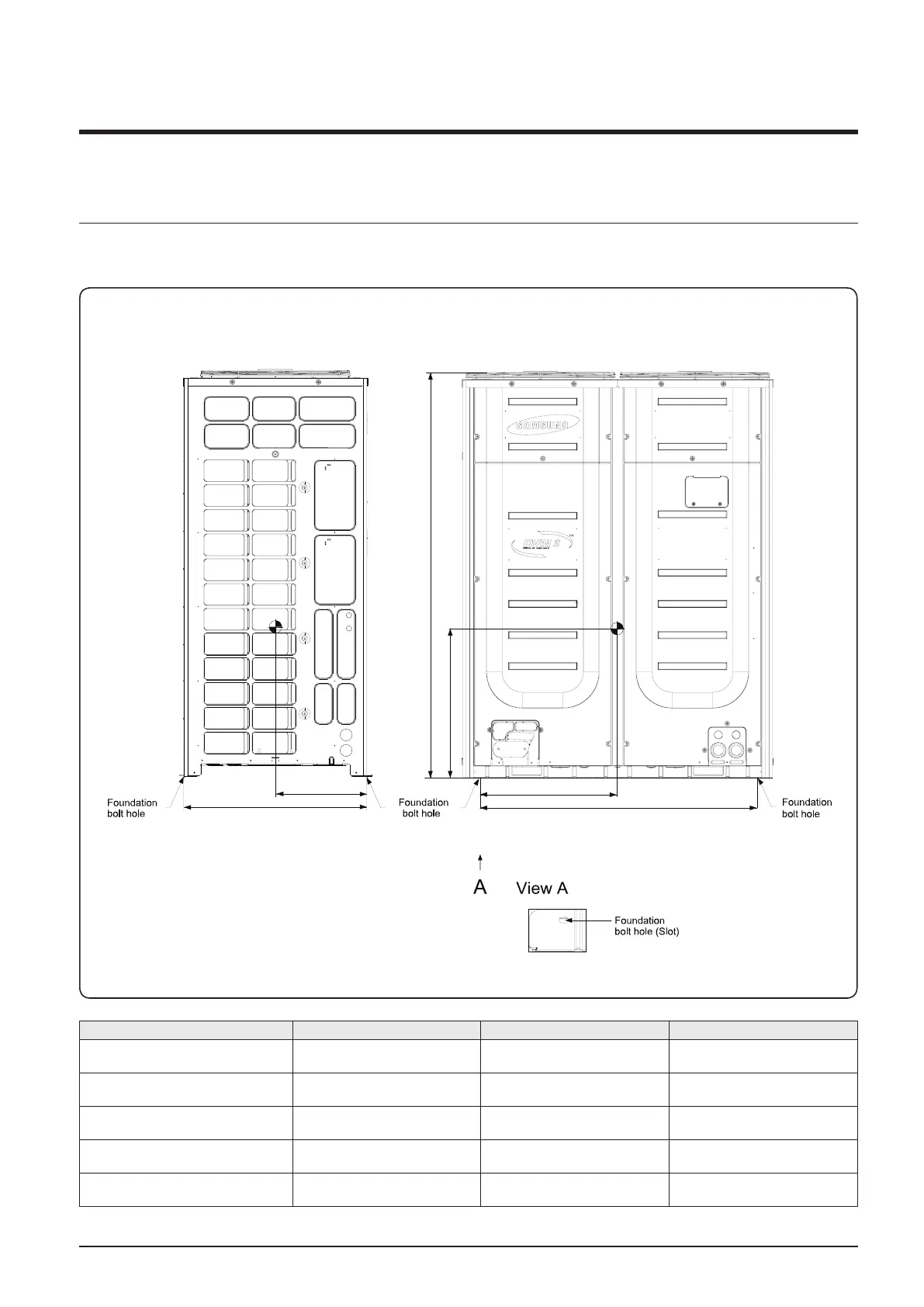

Outdoor unit
• AM140KXVGGH/EU, AM160KXVGGH/EU, AM180KXVGGH/EU, AM200KXVGGH/EU, AM220KXVGGH/EU, AM140KXVAGH/EU,
AM160KXVAGH/EU, AM180KXVAGH/EU, AM200KXVAGH/EU, AM220KXVAGH/EU
1695
[5'-6 3/4"]
761
[2’-6”]
1150
[3’-9 1/4”]
B
A
C
Units : mm [inches]
Model A B C
AM220∗∗∗∗∗∗
336
[1’-1 1/4”]
654
[2’-1 3/4”]
620
[2’-1/2”]
AM200∗∗∗∗∗∗
336
[1’-1 1/4”]
654
[2’-1 3/4”]
620
[2’-1/2”]
AM180∗∗∗∗∗∗
336
[1’-1 1/4”]
654
[2’-1 3/4”]
620
[2’-1/2”]
AM160∗∗∗∗∗∗
367
[1’-2 1/2”]
656
[2’-1 3/4”]
620
[2’-1/2”]
AM140∗∗∗∗∗∗
369
[1’-2 1/2”]
567
[1’-11 1/2”]
620
[2’-1/2”]
