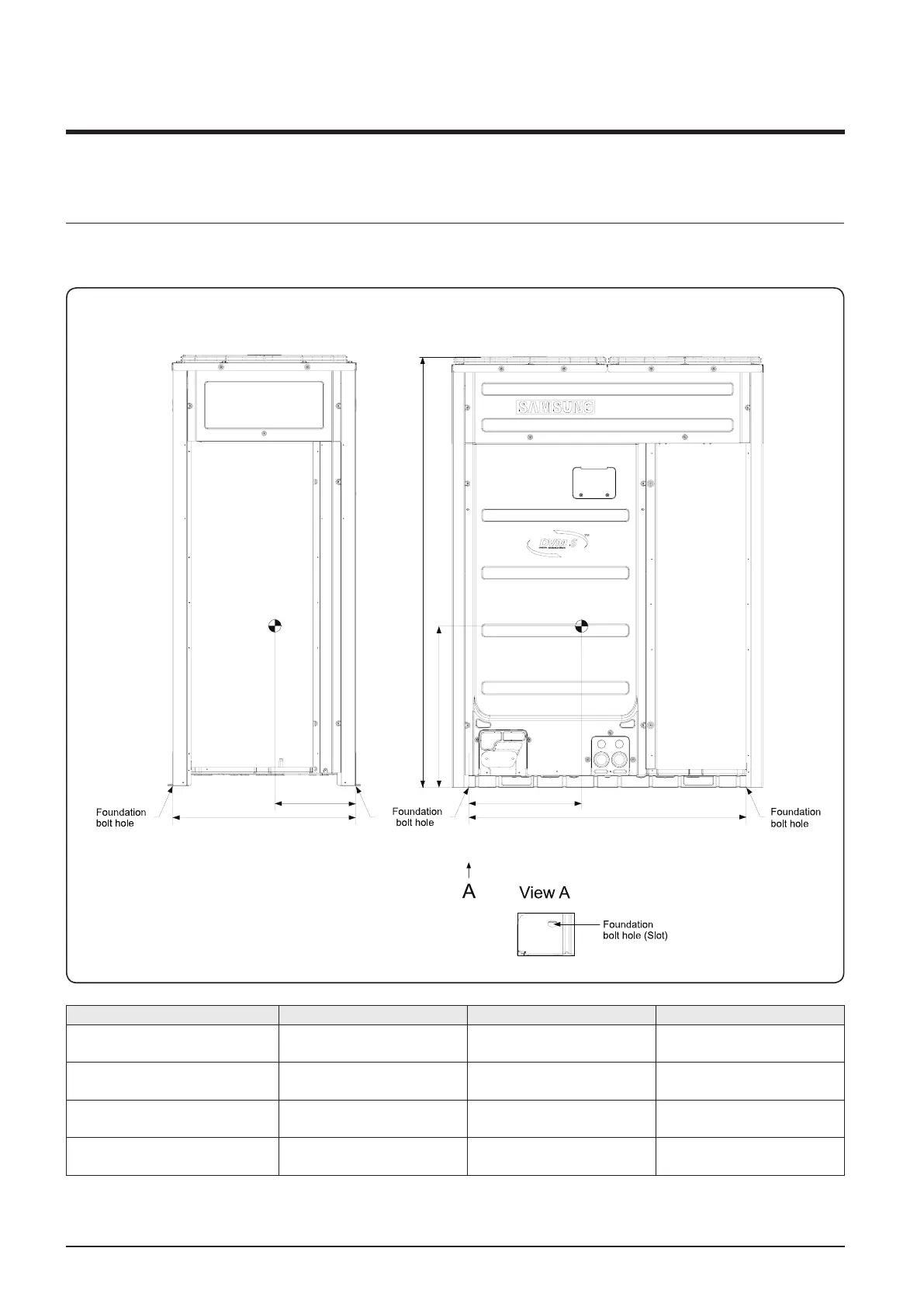

5. Center of Gravity
Outdoor unit
• AM240KXVGGH/EU, AM260KXVGGH/EU, AM280KXVGGH/EU, AM300KXVAGH/EU, AM240KXVAGH/EU, AM260KXVAGH/EU,
AM280KXVAGH/EU
761
[2’-6”]
1150
[3’-9 1/4”]
1795
[5’-10 3/4”]
A
B
C
Units : mm [inches]
Model A B C
AM240∗∗∗∗∗∗
393
[1’-3 1/2”]
665
[2’-2 1/4”]
640
[2’-1 1/4”]
AM260∗∗∗∗∗∗
393
[1’-3 1/2”]
665
[2’-2 1/4”]
640
[2’-1 1/4”]
AM280∗∗∗∗∗∗
335
[1’-1 1/4”]
564
[1’-10 1/4”]
675
[2’-2 1/2”]
AM300∗∗∗∗∗∗
335
[1’-1 1/4”]
564
[1’-10 1/4”]
675
[2’-2 1/2”]
