ENGLISH-18

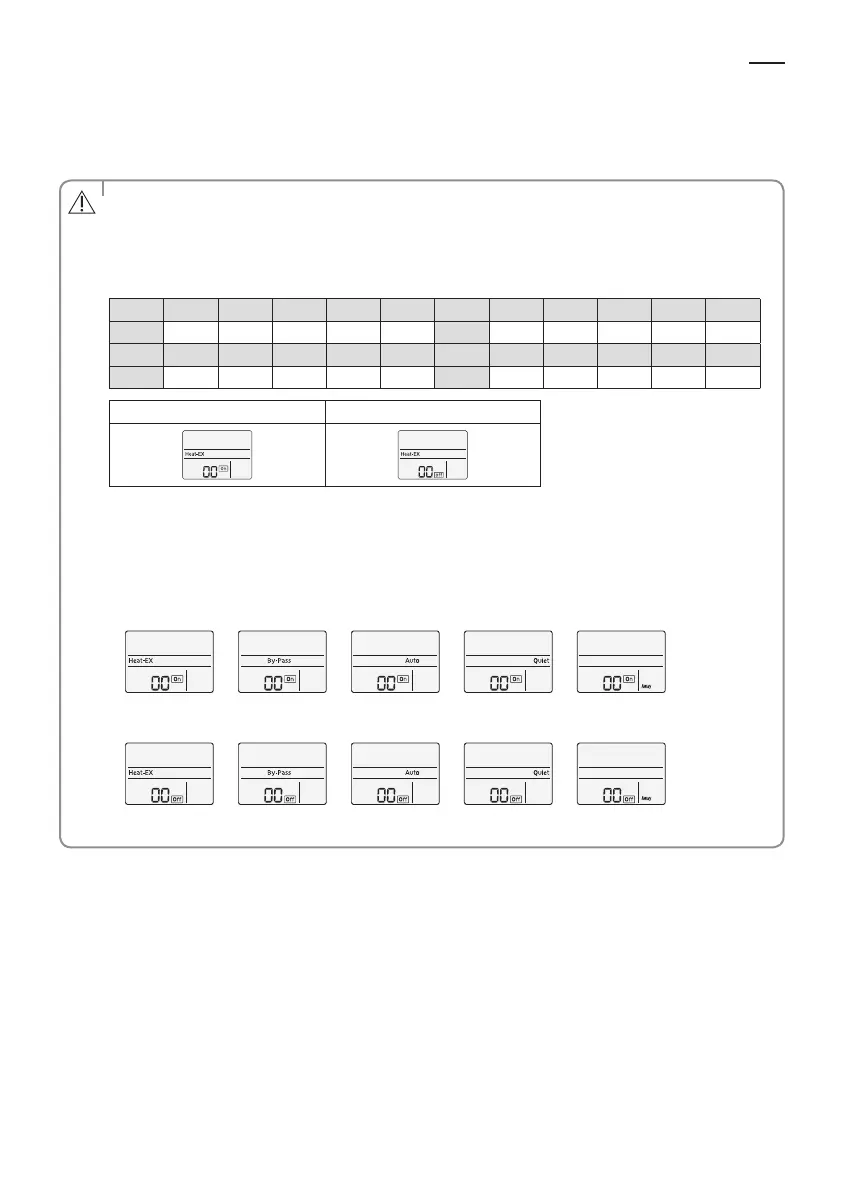

Using installation/service mode of ERV wired remote controller
1)* The total option codes are 24 digits. You can set six digits at a time and it is distinguished by page number.
Press the Timer button to go to the next page.
• Options can be set from SEG1 to SEG24
ū SEG1, SEG7, SEG13, and SEG19 are page option so they cannot be set nor be displayed.
ū SEG2 is the option type which cannot be set.
ū When SEG2~SEG6 and SEG8~SEG12 are set, "On" is displayed and when SEG14~18 and
SEG20~24 are set, "O" is displayed.
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
0 X X X X X 1 X X X X X
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
2 X X X X X 3 X X X X X
On (SEG2~SEG6, SEG8~SEG12) O (SEG14~18, SEG20~24)
• The current SEG displayed can be distinguished by operation mode, On, and O icon.
SEG2~SEG6, SEG8~SEG12
ū On(Heat-EX  By Pass  Auto  Quiet  Away)
SEG14~SEG18, SEG20~24
ū O(Heat-EX  By Pass  Auto  Quiet  Away)

<SEG 2, 3>
PAGE 1
PAGE 6
PAGE 2
PAGE 7
PAGE 3
PAGE 8
PAGE 4
PAGE 9
PAGE 5
PAGE 10
<SEG 14, 15>
<SEG 4, 5>
<SEG 16, 17>
<SEG 6, 8>
<SEG 18, 20>
<SEG 9, 10>
<SEG 21, 22>
<SEG 11, 12>
<SEG 23, 24>





 

Caution
2)* When setting the address or option, you can set the target device with sub menu no.1.
3)* Power Master Reset is a setting needed to supply optimized power to ERV wired remote controller when
multiple indoor units or ERVs are connected to ERV wired remote controller in a group.
4)* RMC(1) : 0~F / RMC(2) : 0~F (hexadecimal)
When RMC(1) is F, RMC(2) can be set up to E. (RMC(1) : Group channel, RMC(2) : Group address)
5)* Displaying address of ERVs (hexadecimal display)
e.g. 30 00 0B
6)* Fan step setting is available only when one ERV is connected.
