Disassembly and Assembly Instructions
11-4
This Document can not be used without Samsung's authorization
1)
Beware of scratch and damage of FPCB and
Connector.
2)
Caution not to damage LCD and Sub PCB.
1)
Caution not to damage components in Sub PBA
while assembled.
2)
Beware of scratch and damage of mechanical parts.
3)
Attached LCD in Upper on right place with caution.
1)
Beware of scratch and damage of mechanical parts.
2)
Caution not to damage FPCB.
1)
Beware of scratch and damage of mechanical parts.
2)
Caution not to damage FPCB.
11-2

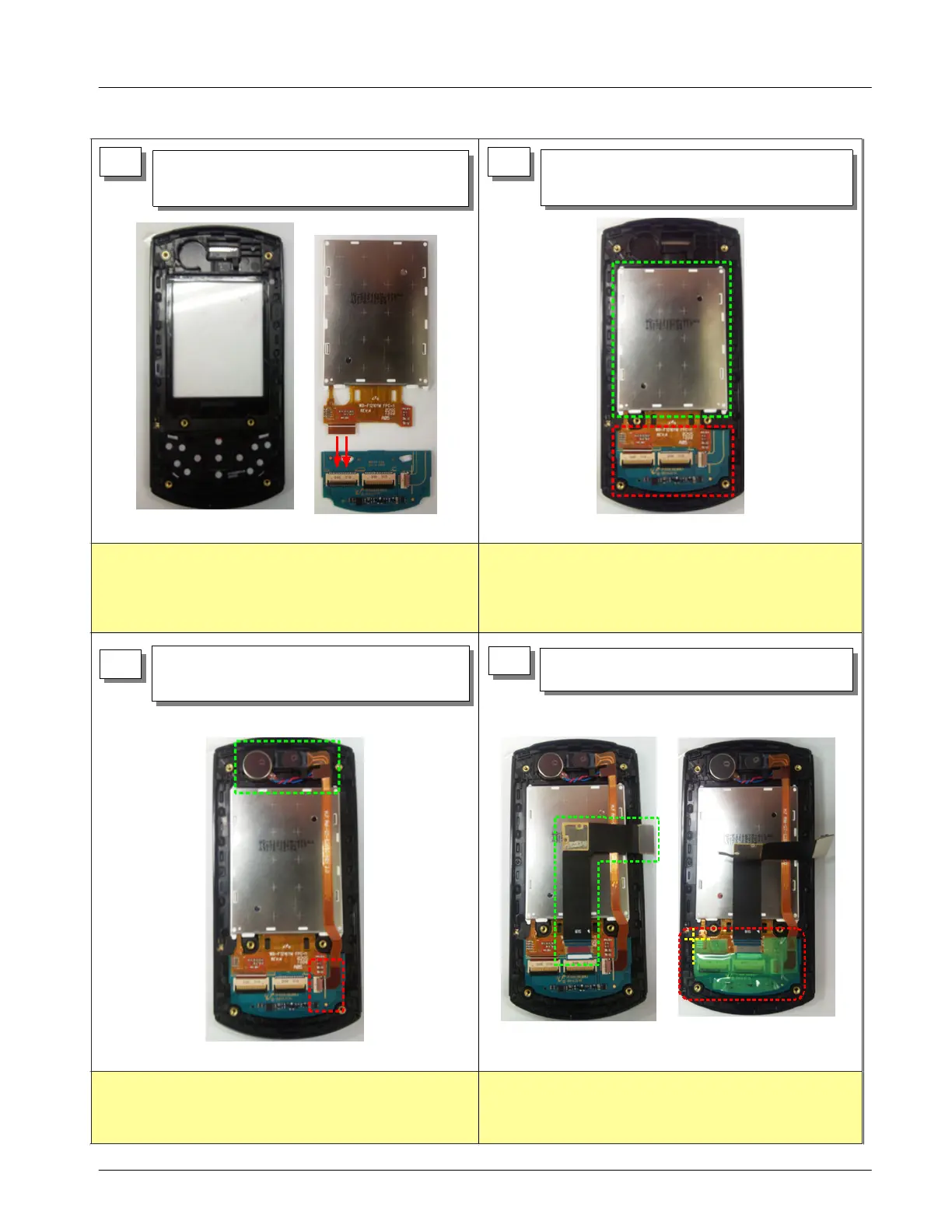

Assembly
1 2
3
4
1)
SUB Keypad is placed in Slide Upper
2)
LCD FPCB is inserted in SUB PBA.
1)
Slide Upper
에
LCD+Sub PBA
을 안착시킨
다
.
1)
Insert Motor/Receiver FPCB on connector
.
2)
Placed Motor/Receiver in Upper.
1)
Put Main FPCB into Sub PBA.
2)
Attach the tape on Sub PBA.
