Disassembly and Assembly Instructions
11-5
This Document can not be used without Samsung's authorization

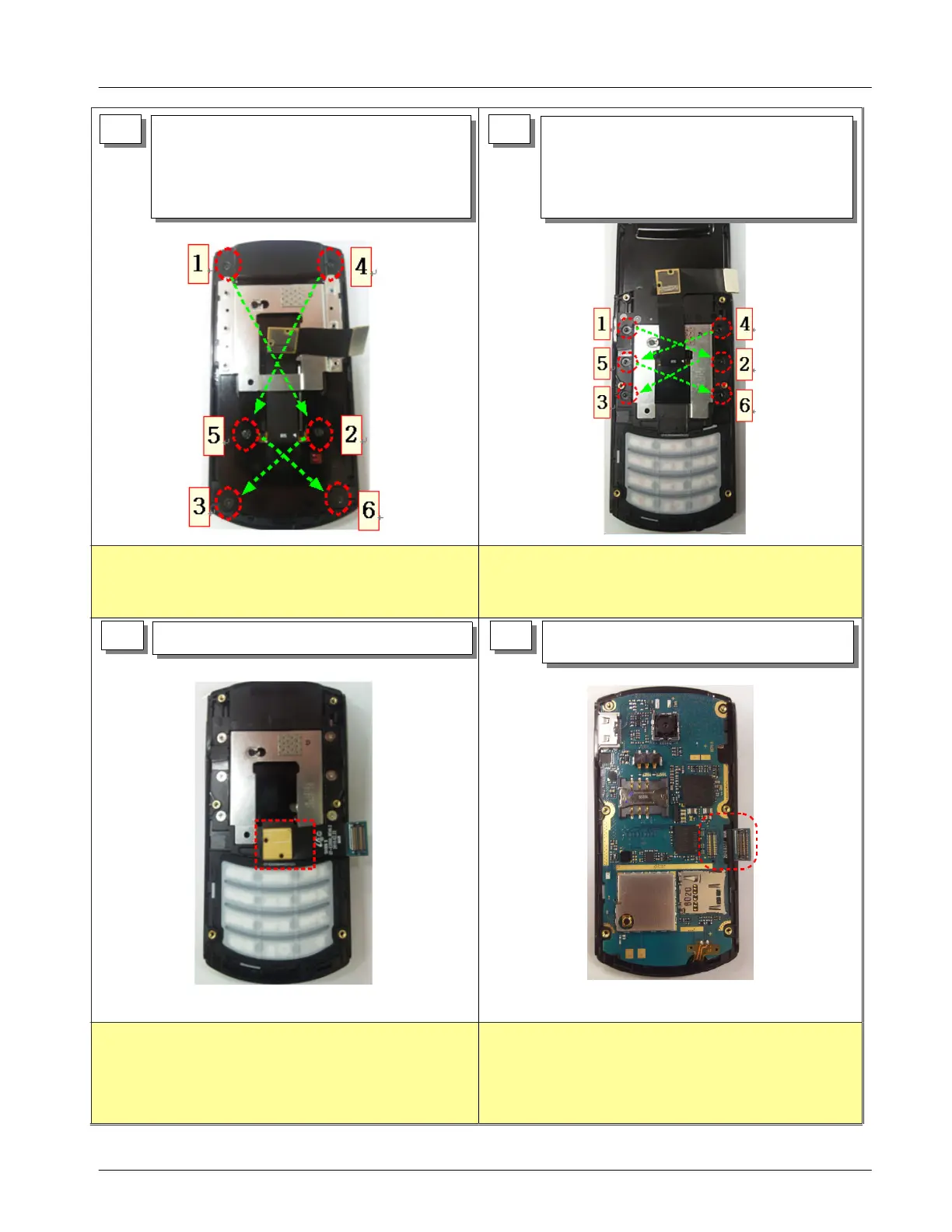

1)
FPCB isn't damage while FPCB go through HINGE.
2)
Beware that mechanical part is not damage while
screw.
1)
Beware of scratch and damage of mechanical parts.
2)
Caution not to damage FPCB.
1)
FPCB is attached right place.
1)
Make sure SLIDE FPCB is inserted right.
7 8
1)
SLIDE FPCB is fixed in FRONT.
1)
PBA is placed on FRONT ASS'Y.
2)
Slide FPCB Connector hook up with PBA.
7 8
1)
After HINGE PLATE slide down, FPCB
goes through in Lower Assembling.
2)
After HINGE PLATE slide up and screw
below
6
Points
1)
When SLIDE HINGE UP, FRONT is
placed on.
2)
After SLIDE HINGE down, screw below
6
points.
To Next Page
