Installing the hard disk drive
English 3

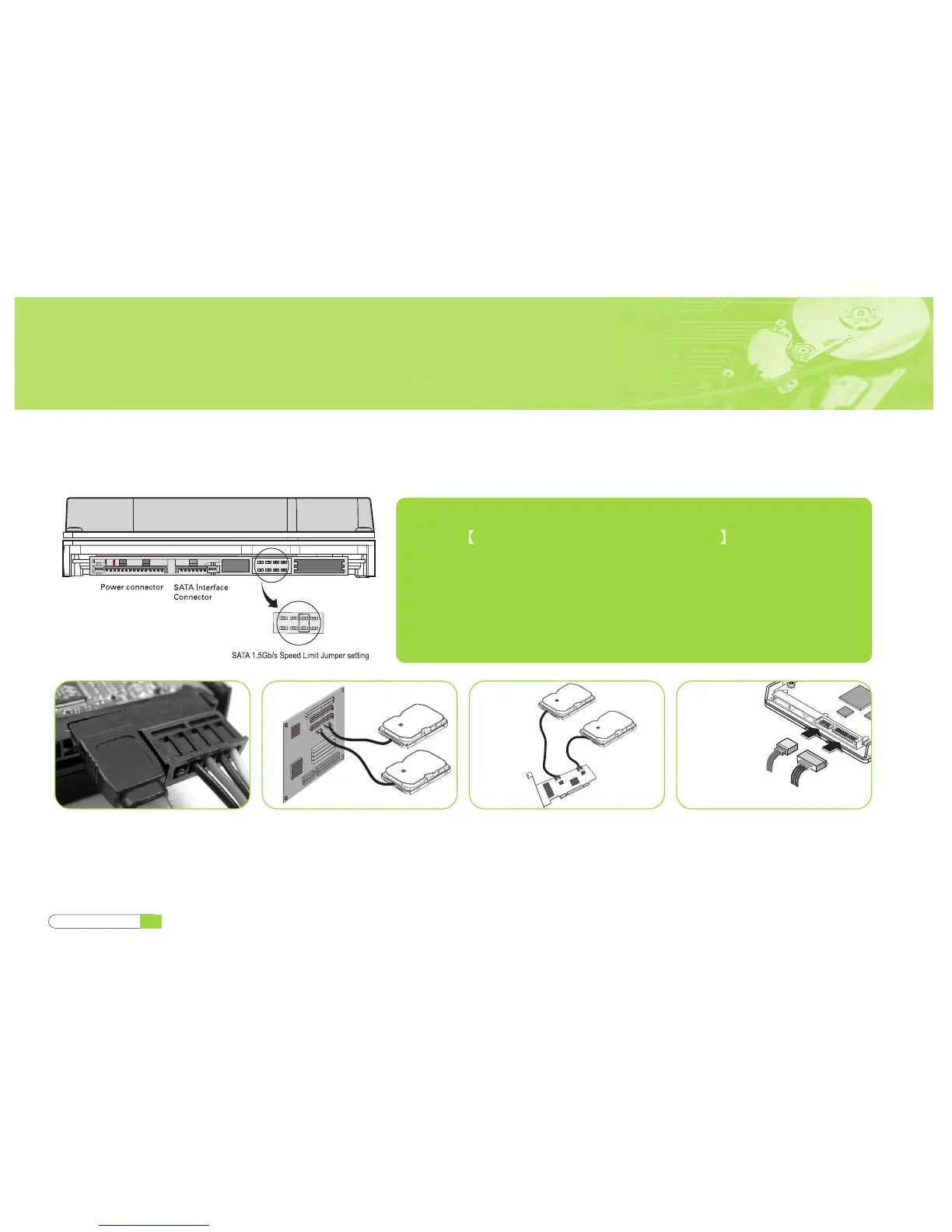

Installing the hard disk drive
The followings are of typical computer systems and hard disk drive mounting styles.
SATA interface cable
/ Power cable
Computer motherboard Serial ATA host adapter
SATA interface cable
Power cable
NOTE : SATA 1.5Gb/s Speed Limit Jumper setting
Only for SATA 3.0Gb/s products
In some rare cases SATA 1.5Gb/s hosts can not establish SATA
interface connection with SATA 3.0Gb/s devices due to interface
protocol issues. In this case the jumper may be installed as shown
on the figure below to force the device to negotiate for SATA
1.5Gb/s speed.
