English - 21

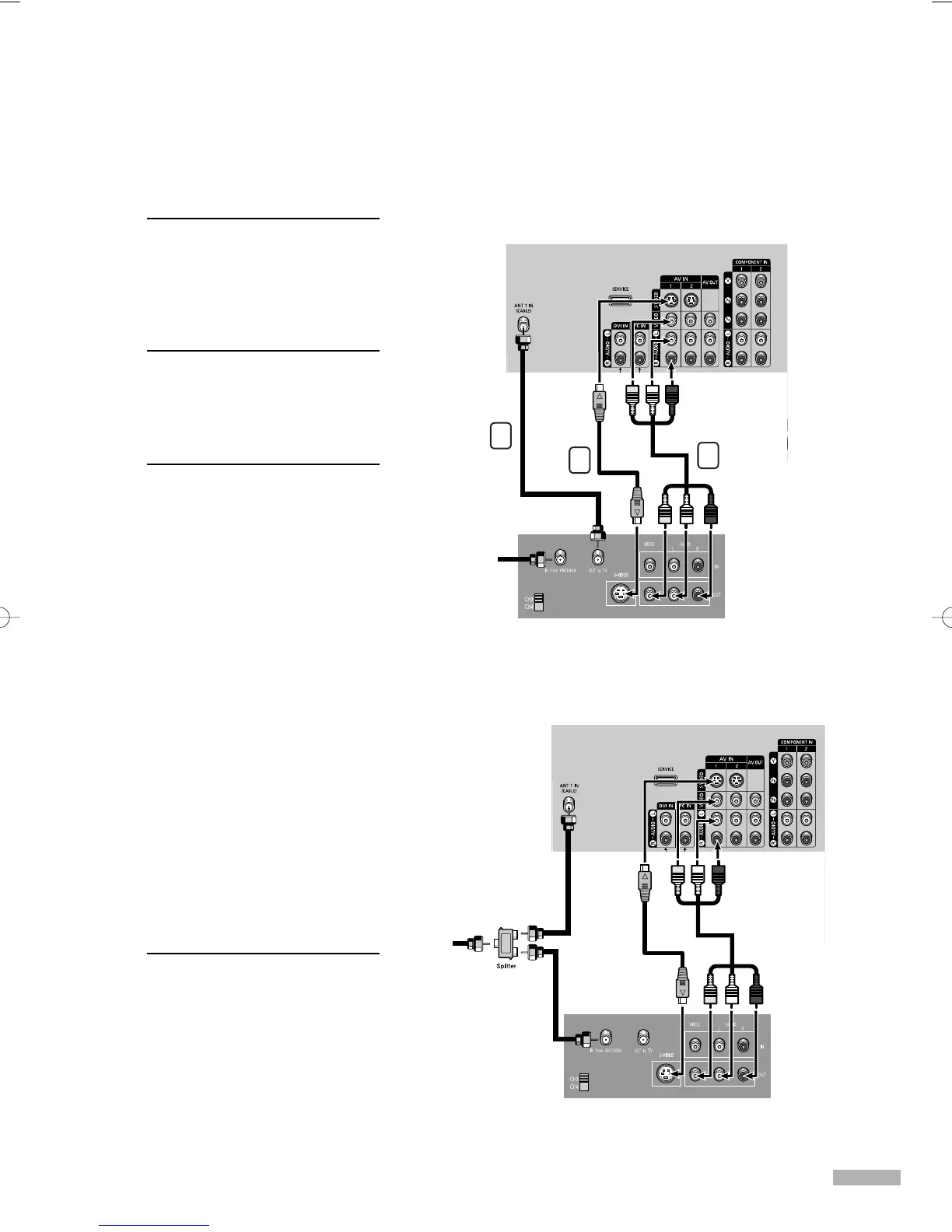

Connecting a VCR
Connecting a VCR to the Video or S-Video/Audio jack
1
Connect the Video/Audio
cables between the VIDEO
or S-VIDEO/AUDIO input
jacks on the TV and VIDEO
or S-VIDEO/AUDIO output
jacks on the VCR.
2
Connect a coaxial cable
between the Antenna out
terminal (i.e., “OUT to TV”)
on the VCR and the ANT 1
IN (CABLE) on the TV.
3
Connect a video cable
between the S-VIDEO IN
jack on the TV and the
S-VIDEO OUT jack on the
VCR.
NOTES
• For better video, use an
S-Video cable.
• Please be sure to match the
color coded input terminals
and cable jacks.
• When connecting the VCR
and turning it on, there may
be some degradation of the
visual quality with noise on
the TV screen.
Press the TV/VCR button on
the VCR remote control first
to switch the VCR to the TV
mode and you can tune the
TV while the VCR is recording.
Alternate method
When changing the antenna
connection, you do not need to
press the TV/VCR button on the
VCR remote control for using the
recording function of the TV Guide
On Screen
TM
.
TV Rear Panel
Incoming
Cable or
Antenna
Stereo VCR
TV Rear Panel
Incoming
Cable or
Antenna
Stereo VCR
1
3
2
BP68-00469A-02(018~029) 9/2/05 10:34 AM Page 21
