29
ENG
● CONNECTIONS
AUX : Connecting an External Analogue Component
Analogue signal components such as a VCR.

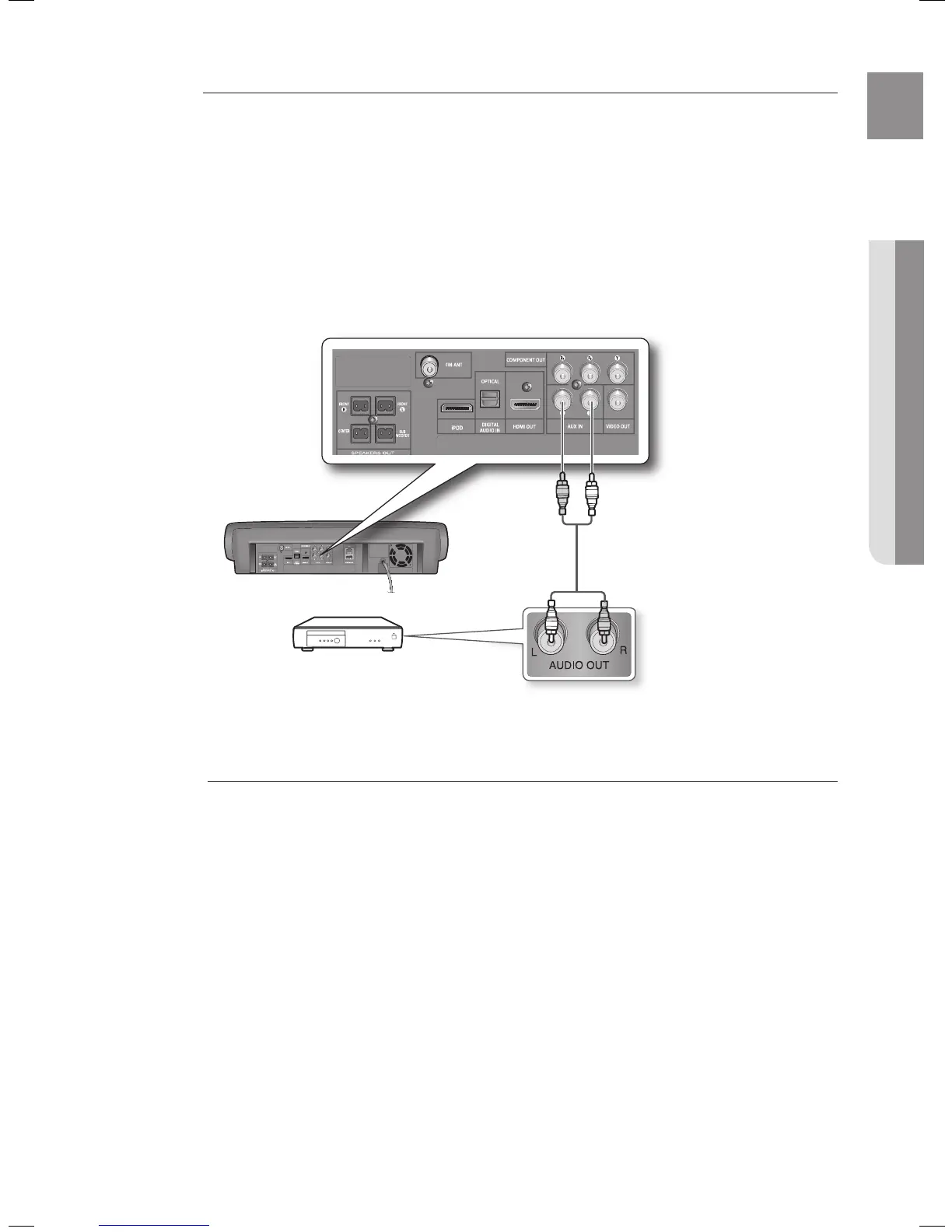

Connect AUX IN (Audio) on the main unit to the Audio Out of the external analogue component.
Be sure to match connector colours.
Press the AUX button on the remote control to select AUX input.
You can also use the FUNCTION button on the main unit.
The mode switches as follows : BD/DVD ➞ D.IN ➞ AUX ➞ BT AUDIO ➞ FM.
You can connect the Video Output jack of your VCR to the TV, and connect the Audio
Output jacks of the VCR to this product.
1.
•
2.
•
M
Audio Cable
(not supplied)
If the external analogue component has
only one Audio Out, connect either left
or right.
