Samsung HT-C5500D - Connecting the Speakers; Speaker Components

18 English
Connections
(L) (R)
FRONT
SURROUND
CENTRE
SUBWOOFER SPEAKER CABLE

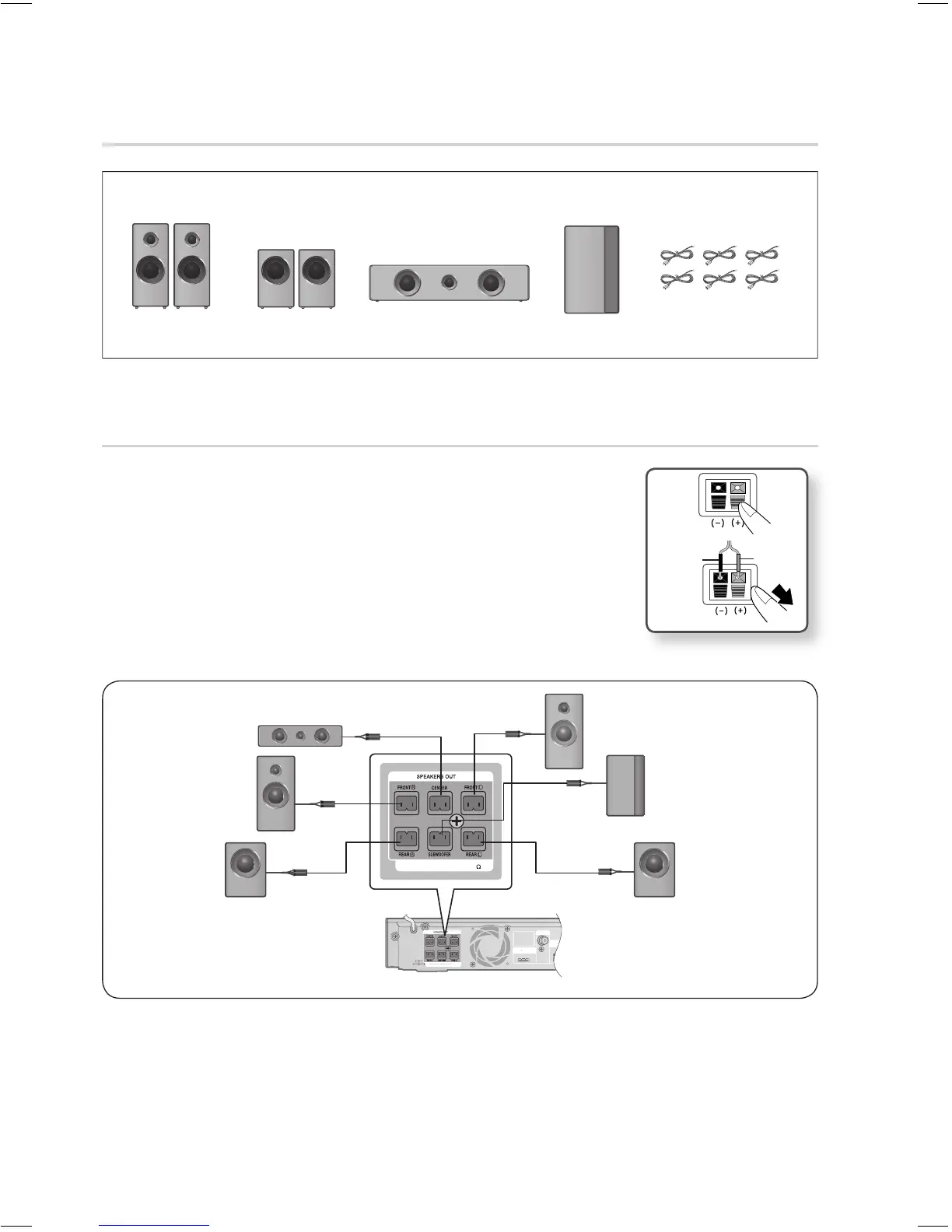

Speaker Components
(L) (R)
Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the
red terminal (+), and then release the tab.
Connect the connecting plugs to the back of the product by matching
the colours of the speaker plugs to the speaker jacks.
1.
2.
3.
Black
Red
FM ANT
iPod
SPEAKER IMPEDANCE : 3
FM ANT
iPod
SPEAKER IMPEDANCE : 3
SPEAKER IMPEDANCE : 3
Front Speaker (R)
Subwoofer
Surround Speaker (R)
Surround Speaker (L)
Front Speaker (L)
Centre Speaker
