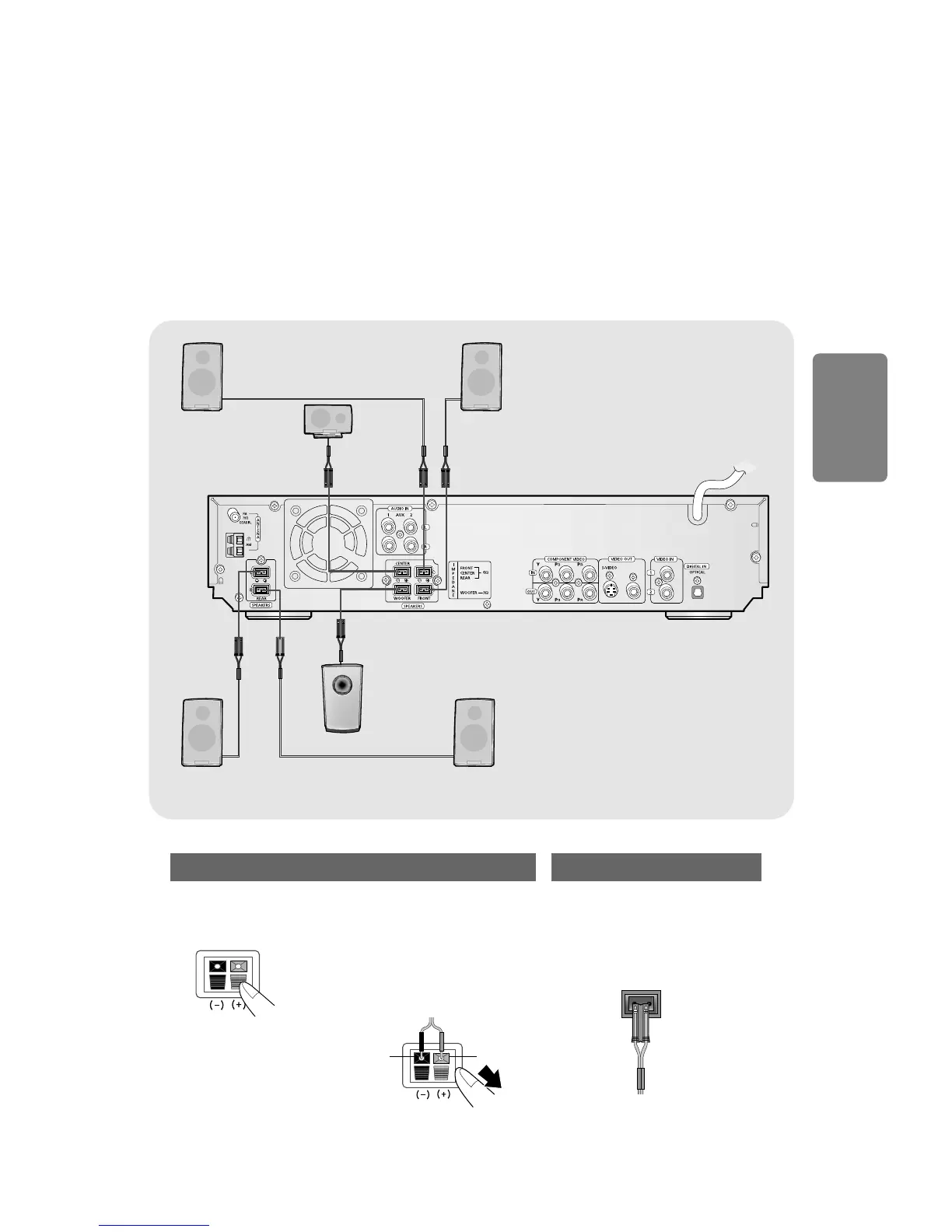

Samsung HT-DB600 - Speaker Wiring and Connections; Connecting Speaker Wires to Units

Rear Speaker (L)
Rear Speaker (R)
Subwoofer
Center Speaker
Front Speaker (L)
Front Speaker (R)
•
Make sure the colors of the speaker terminals
match the colors of the connecting jacks.
•
Make sure the polarities (+ and -) are correctly.
•
Insert the black wire into he black (-)
terminal and the gray wire into the
gray (+) terminal.
•
Make sure the polarities (+ and -)
are correctly.
Black
Press down the terminal
tab on the back of the
speaker.
1
Insert the wire into the
terminal and release the
terminal tab.
2
Connect the connecting jacks (6)
to the back of the DVD player.
3
Blue
Gray
Purple
White
Red
Green
Gray
14
Back of the Speakers Back of the Main Unit
CONNECTIONS
