04 CONNECTING WITH A
CABLE
Connecting using an HDMI Cable
Bottom of the
Soundbar
HDMI Cable
TV
HDMI IN
(eARC)
HDMI OUT
OPTICAL OUT
HDMI 입력
(eARC)
HDMI 출력
OPTICAL 출력
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
White On -> Off
“TV ARC” or “eARC”
Connecting using an Optical Cable (D.IN)
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
TV / BD / DVD player
/ Set-top box / Game
console
Bottom of the
Soundbar
Optical Cable
(not supplied)
HDMI IN
(eARC)
HDMI OUT
OPTICAL OUT
HDMI 입력
(eARC)
HDMI 출력
OPTICAL 출력
White On -> Off
“Digital Audio In”
NOTES
• When the TV sound is not output, press the
(Multi Function) button at the top of the Soundbar or
the (Source) button on the remote control to select
the “TV ARC” or “eARC” mode.
• The recommended cable is an HDMI cable certied by
HDMI.org.
• When you use an optical cable and the terminals have
covers, be sure to remove the covers.
Using the Q-Symphony Function
When the Soundbar connects to a Samsung TV that
supports the Q-Symphony function, you can play the
sound simultaneously through the Soundbar and the TV.
If you use the Q-Symphony function, the surround sound
played on the TV allows you to enjoy a richer, more three-
dimensional surround sound effect.
When the Soundbar is connected, “Q-Symphony” menu
appears on the TV. (The message displayed may differ
with the TV model.)
Settings ( ) → All Settings ( )→ Sound → Sound
Output

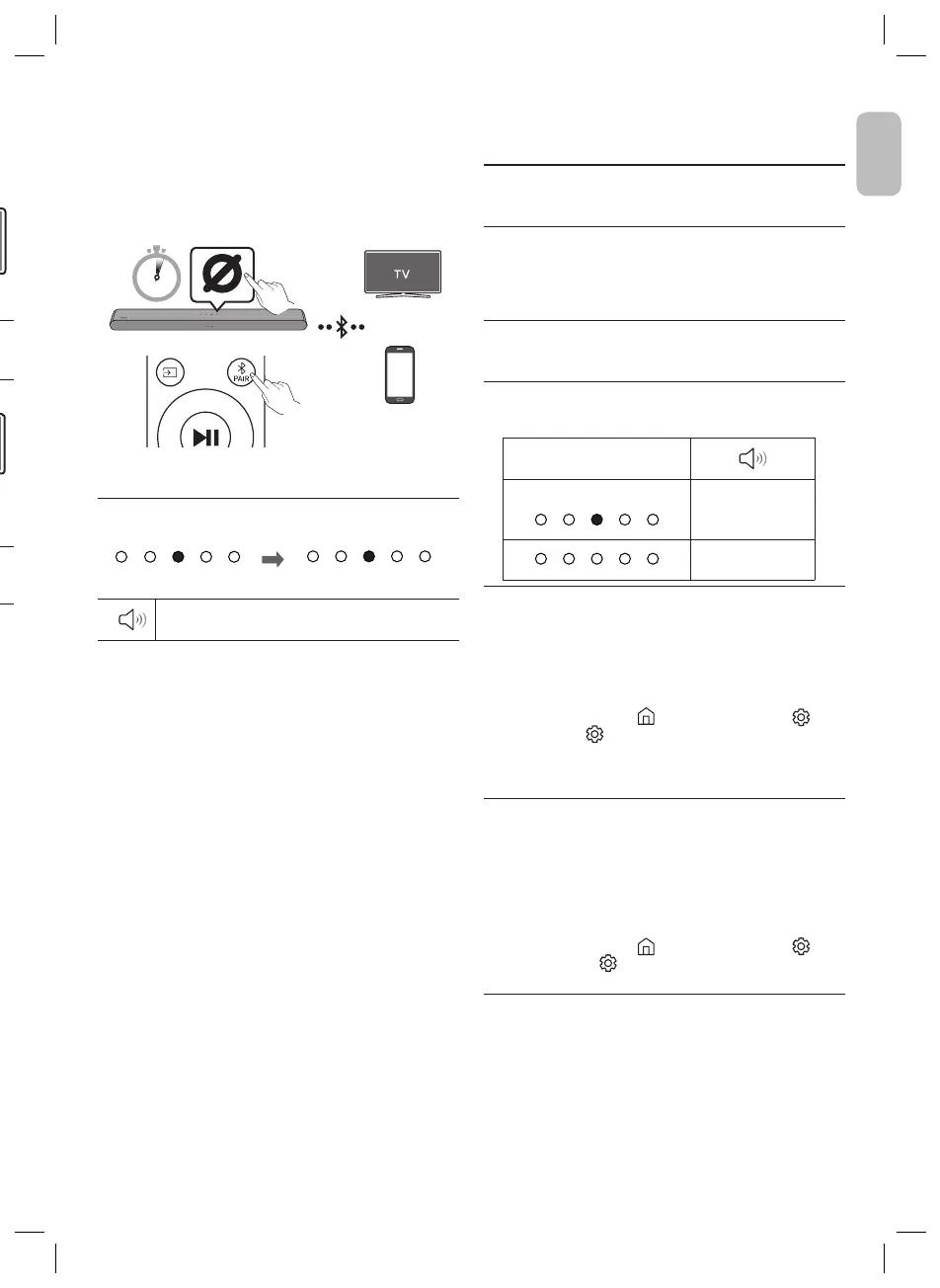

05 USING A WIRELESS
CONNECTION
Connecting via Bluetooth
OR
OR
When in “Bluetooth” mode
5 Sec
SOUND
MODE
WOOFER
TONE
CONTROL
CH LEVEL
• Search for the Bluetooth device on your TV or mobile
device.
Red → Green →
Blue Blinks
Cyan Blinks X3
Pairing
Connection is complete
“Ready to connect via Bluetooth.”
NOTE
• If asked for a PIN code when connecting a Bluetooth
device, enter <0000>.
Connecting via Wi-Fi (Wireless
Network)
To connect a Soundbar to a mobile device via a wireless
network (Wi-Fi), the SmartThings app is required.
1. Connect your mobile device (smartphone, tablet, etc.)
to the Wi-Fi network the TV is connected to.
2. Install and launch the SmartThings app on your mobile
device (smartphone, tablet, etc.).
3. Follow the instructions in the app screen on the mobile
device to connect the Soundbar to your Wi-Fi network.
06 TROUBLESHOOTING
Before seeking assistance, check the following.
Soundbar does not turn on.
• Check whether the power cord of the Soundbar is
correctly inserted into the outlet.
Soundbar works erratically.
• After removing the power cord, insert it again.
• Power cycle the external device and try again.
• If there is no signal, the Soundbar automatically turns
off after a certain period of time. Turn on the power.
Remote control does not work.
• Point the remote directly at the Soundbar.
• Replace the batteries with new ones.
The red LED indicator light on the soundbar stays on.
• The microphone is turned off. Turn on the
microphone.
LED Indicator
Red On
“Mic Off”
“Mic On”
The Soundbar does not output any sound.
• The volume of the Soundbar is too low or muted.
Adjust the volume.
• When any external device (STB, Bluetooth device,
mobile device, etc.) is connected, adjust the volume of
the external device.
• For sound output of the TV, select Soundbar.
(Samsung TV: Home ( ) → Menu → Settings ( ) →
All Settings ( ) → Sound → Sound Output → Select
Soundbar)
• Remove the cable from the Soundbar and then
reconnect it.
If the TV is not connected via HDMI (eARC).
• Check whether the HDMI cable is correctly connected
to the eARC terminal.
• Connection may not be possible due to the connected
external device (set-top box, game console, etc.).
Directly connect the Soundbar.
• HDMI-CEC may not be activated on the TV. Turn on
the CEC on the TV menu.
(Samsung TV: Home ( ) → Menu → Settings ( )
→ All Settings ( ) → Connection → External Device
Manager → Anynet+ (HDMI-CEC) ON)
