5-3. Connector Functions
Connector Functions
Main IP (14p)
Supply main power and dimming signal from IP board to Main Board.
Main T-CON (30p LVDS)
The LVDS signal transfered from Main Board to Panel .
IP Panel (12p)
Supply power from IP board to Driver Board.

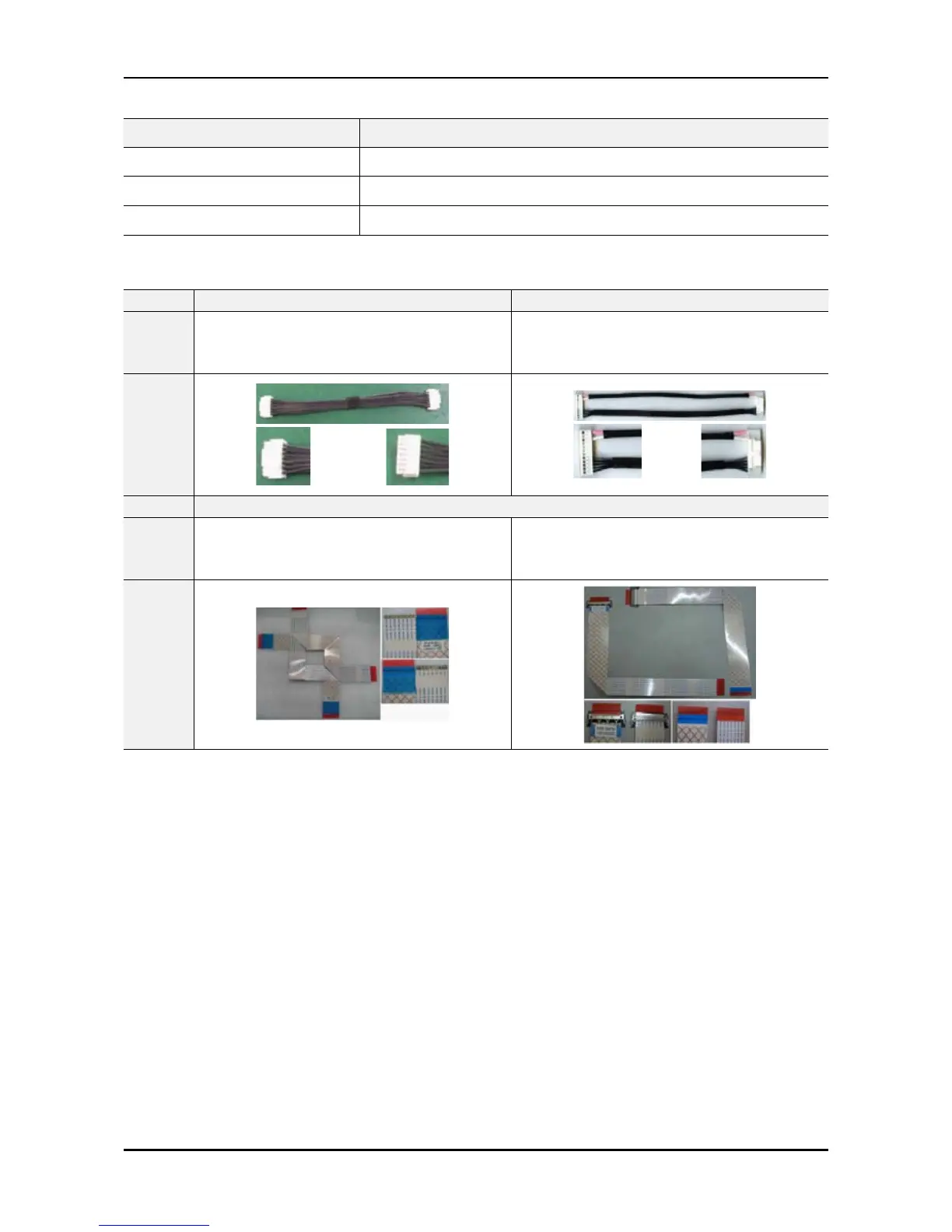

5-4. Cables
Use LEAD (Main-IP 14P) LEAD (IP-Driver B'D 12P)
Code
D400 26 : BN39-01449E (125mm)
D400 32" : BN39-01449A (200mm)
D400 26/32" : BN39-01448A (70mm)
Use LVDS (Main - TCON)
Code
D400 26" : BN96-12469D
D400 32" : BN96-13227A
D400 19" : BN96-12453D
D400 22" : BN96-12447M
