English - 9

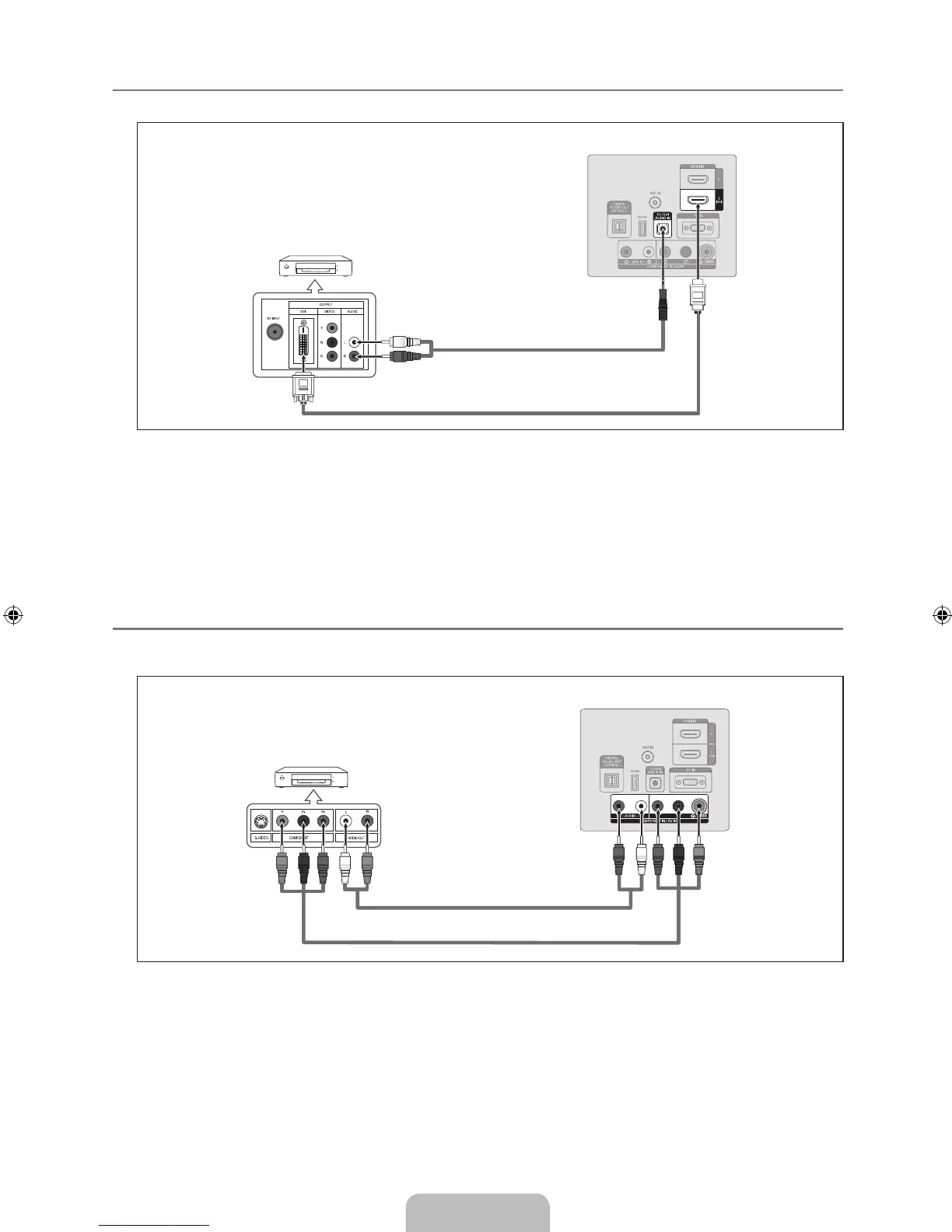

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via DVI
This connection can only be made if there is a DVI Output connector on the external device.
1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI IN 1(DVI) jack on the TV and the DVI jack on the DVD
/ Blu-ray player / Cable Box / Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the PC / DVI AUDIO IN jack on the TV and the DVD / Blu-ray player / Cable Box / Satellite
receiver (Set-Top Box).
Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a dif
ferent back panel conguration.
When connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box), match the color of the connection
terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.
Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via Component cables
The rear panel jacks on your TV make it easy to connect a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) to
your TV.
1. Connect a Component Cable between the COMPONENT IN / AV IN [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB,
PR] jacks on the DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the COMPONENT IN / AV IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the
DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box).
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections. For example, if connecting a Component video cable to
COMPONENT IN / AV IN, connect the audio cable to COMPONENT IN / AV IN also.
Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a dif
ferent back panel conguration.
When connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box), match the color of the connection
terminal to the cable.
¦
N
N
N
¦
N
N
N
DVD / Blu-ray player / Cable Box /
Satellite receiver (Set-Top Box)
TV Rear Panel
2 Audio Cable (Not supplied)
1 DVI to HDMI Cable (Not supplied)
DVD / Blu-ray player / Cable Box /
Satellite receiver (Set-Top Box)
2 Audio Cable (Not supplied)
1 Component Cable (Not supplied)
TV Rear Panel
[500-NA]BN68-01883Q-00L03.indb 9 2009-08-14 ¿ÀÈÄ 5:40:48

Samsung LN40B500 Specifications

General

Screen Size	40 inches
Display Type	LCD
Resolution	1920 x 1080
HDMI Ports	3
Component Video Inputs	1
Composite Video Inputs	1
S-Video Input	1
PC Input	1 (D-Sub)
Digital Audio Output	1 (Optical)
USB	No
Viewing Angle	178° (H) / 178° (V)
Contrast Ratio	50, 000:1
Brightness	500 cd/m²
Sound Output	10W x 2
