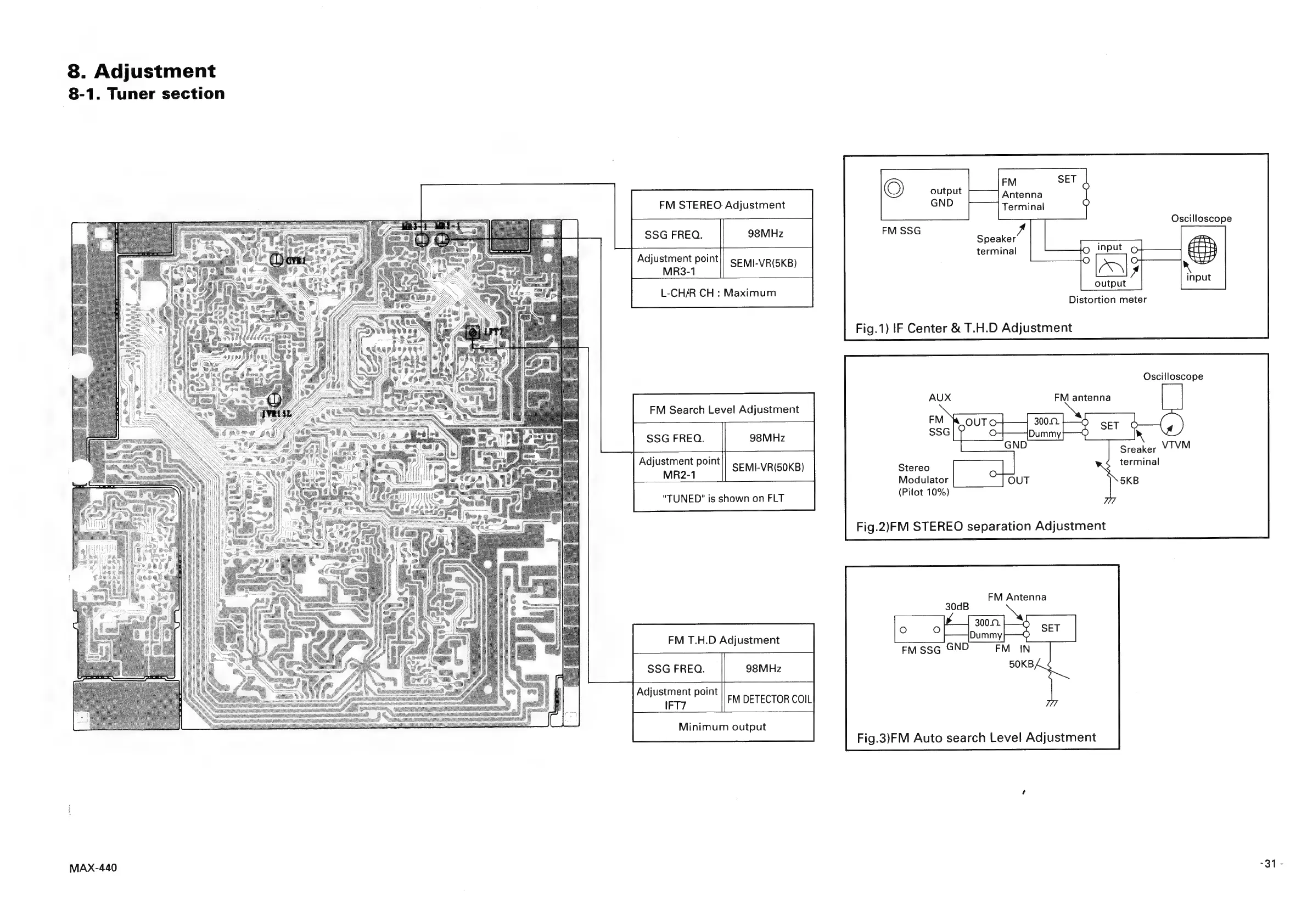

8. Adjustment
8-1. Tuner section
MAX-440
FM STEREO Adjustment
SSG FREQ.
Adjustment point |-VR
MR3-1 SEMI-VR(5KB)
L-CH/R CH : Maximum
FM Search Level Adjustment
SSG FREQ. 98MHz
Adjustment point
a SEMI-VR(50KB)
"TUNED" is shown on FLT
FM T.H.D Adjustment
SSG FREQ.
Adjustment point
IFT7 FM DETECTOR COIL
Minimum output
O FM
output
GND Terminal
Oscilloscope
Speaker
terminal
Distortion meter
Fig.1) IF Center & T.H.D Adjustment
Oscilloscope
FM antenna
Sreaker VTVM
Staiee terminal
Modulator 5KB
(Pilot 10%)
FM Antenna
Fig.3)FM Auto search Level Adjustment
