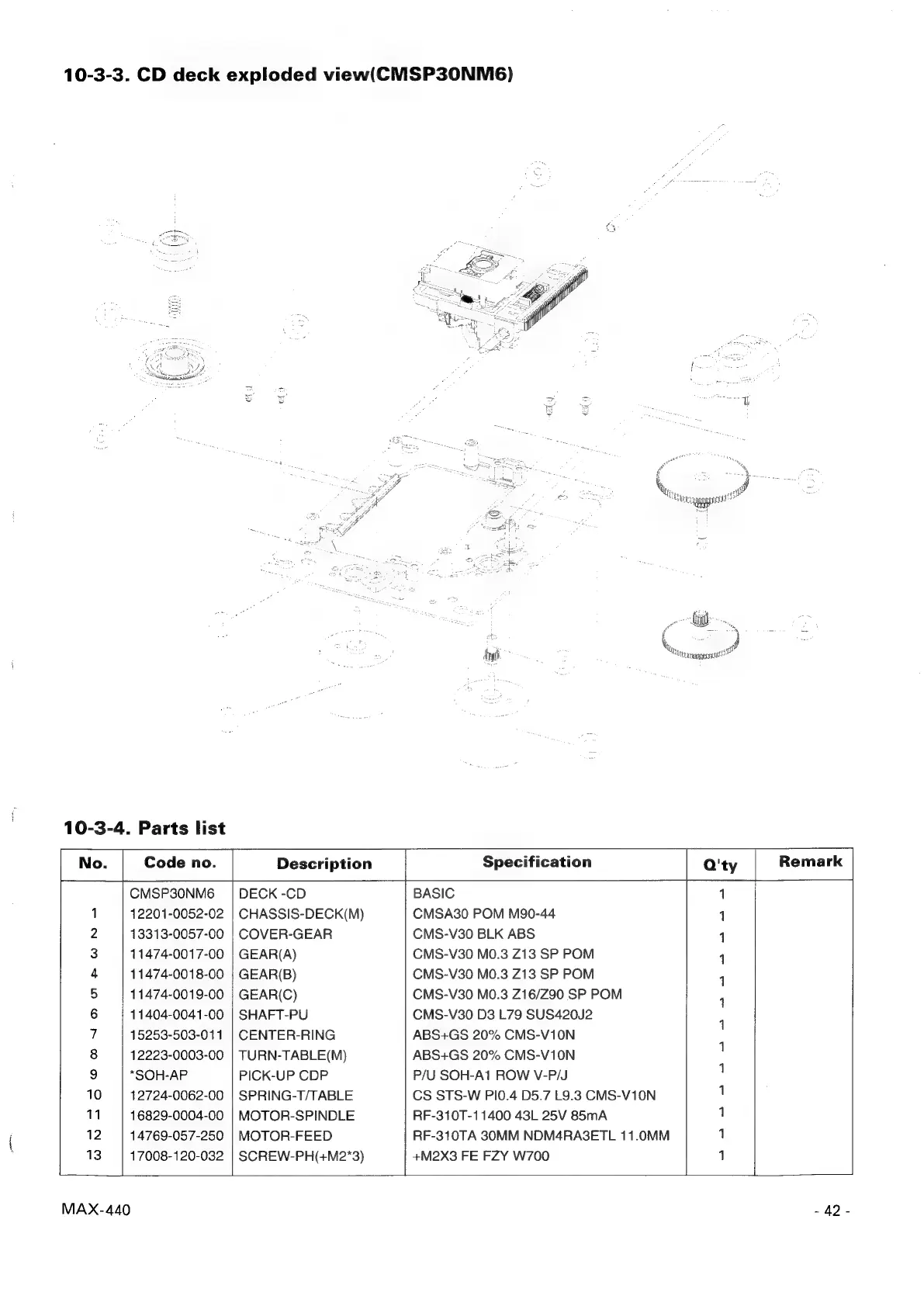

10-3-3. CD deck exploded view(CMSP30NM6)
~~
tal : ae Teams
10-3-4. Parts list
No. Code no. Description Specification Q'ty Remark
CMSP30NM6 DECK -CD BASIC 1
1 12201-0052-02 | CHASSIS-DECK(M) CMSA30 POM M90-44 1
2 13313-0057-00 | COVER-GEAR CMS-V30 BLK ABS 1
3 11474-0017-00 | GEAR(A) CMS-V30 MO.3 Z13 SP POM 1
4 11474-0018-00 | GEAR(B) CMS-V30 MO0.3 Z13 SP POM 1
5 11474-0019-00 | GEAR(C) CMS-V30 MO0.3 Z16/Z90 SP POM 1
6 11404-0041-00 | SHAFT-PU CMS-V30 D3 L79 SUS420J2 1
7 15253-503-011 | CENTER-RING ABS+GS 20% CMS-V10N :
8 12223-0003-00 | TURN-TABLE(M) ABS+GS 20% CMS-V10N
9 *SOH-AP PICK-UP CDP P/U SOH-A1 ROW V-P/J 1
10 12724-0062-00 | SPRING-T/TABLE CS STS-W PI0.4 D5.7 L9.3 CMS-V10N 1
11 16829-0004-00 | MOTOR-SPINDLE RF-310T-11400 43L 25V 85mA 1
12 14769-057-250 | MOTOR-FEED RF-310TA 30MM NDM4RA3ETL 11.0MM 1
13 17008-120-032 | SCREW-PH(+M2*3) +M2X3 FE FZY W700 1
MAX-440 ~ 42 -
