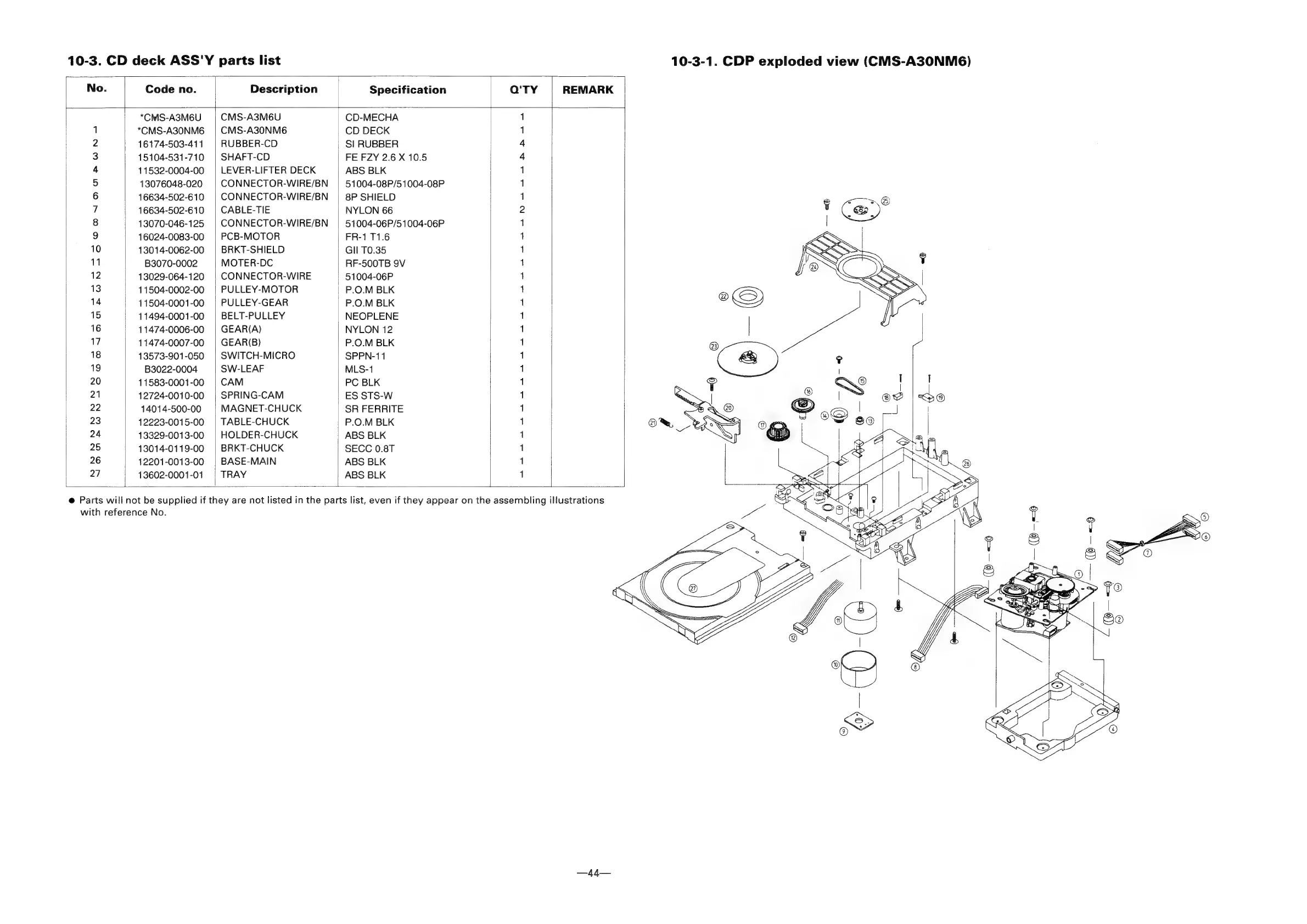

10-3. CD deck ASS'Y parts list
No. Code no. Description Specification Q'TY REMARK
*CMS-A3M6U CMS-A3M6U CD-MECHA 1
1 *CMS-A30NM6_ | CMS-A30NM6 CD DECK 1
2 16174-503-411 RUBBER-CD S! RUBBER 4
3 15104-531-710 SHAFT-CD FE FZY 2.6 X 10.5 4
4 11532-0004-00 | LEVER-LIFTER DECK ABS BLK 1
5 13076048-020 CONNECTOR-WIRE/BN 51004-08P/51004-08P 1
6 16634-502-610 CONNECTOR-WIRE/BN 8P SHIELD 1
7 16634-502-610 CABLE-TIE NYLON 66 2
8 13070-046-125 | CONNECTOR-WIRE/BN 51004-06P/51004-06P 1
9 16024-0083-00 | PCB-MOTOR FR-1 11.6 1
10 13014-0062-00 BRKT-SHIELD Gil T0.35 1
11 B3070-0002 MOTER-DC RF-500TB 9V 1
12
13029-064-120
|
CONNECTOR-WIRE
51004-06P
1
13 11504-0002-00 | PULLEY-MOTOR P.O.M BLK 1
14 11504-0001-00 PULLEY-GEAR P.O.M BLK 1
15 11494-0001-00 BELT-PULLEY NEOPLENE 1
16 11474-0006-00 GEAR(A) NYLON 12 1
17 11474-0007-00 | GEAR(B) P.O.M BLK 1
18 13573-901-050 | SWITCH-MICRO SPPN-11 1
19 B3022-0004 SW-LEAF MLS-1 1
20 11583-0001-00 CAM PC BLK 1
21 12724-0010-00 SPRING-CAM ES STS-W 1
22 14014-500-00 MAGNET-CHUCK SR FERRITE 1
23 12223-0015-00 | TABLE-CHUCK P.O.M BLK 1
24 13329-0013-00 | HOLDER-CHUCK ABS BLK 1
25 13014-0119-00 BRKT-CHUCK SECC 0.8T 1
26 12201-0013-00 BASE-MAIN ABS BLK 1
27 13602-0001-01 TRAY ABS BLK 1
@ Parts will not be supplied if they are not listed in the parts list, even if they appear on the assembling illustrations
with reference No.
10-3-1. CDP exploded view (CMS-A30NM6)
