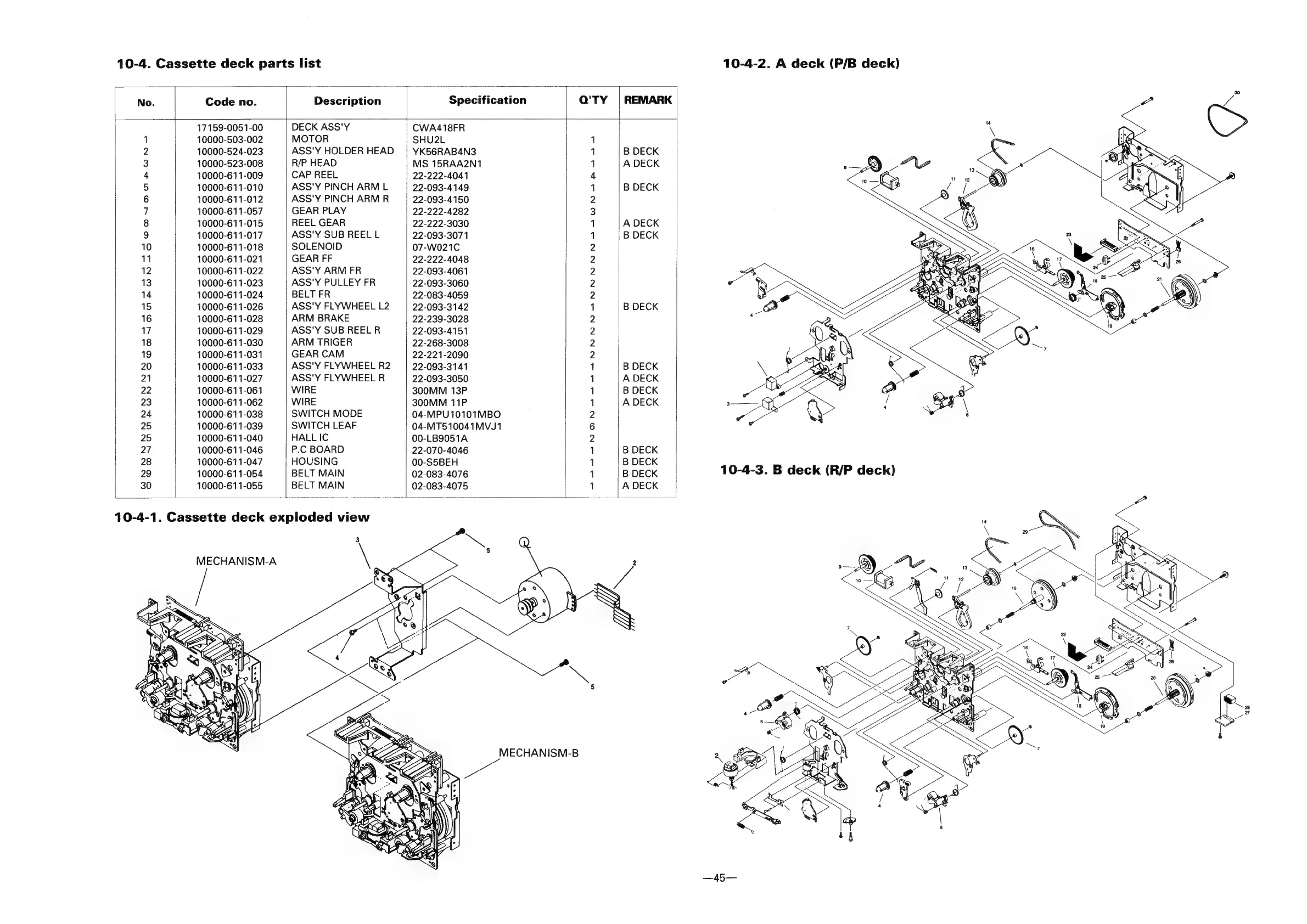

10-4. Cassette deck parts list
i
No. Code no. Description Specification Q'TY | REMARK
17159-0051-00 DECK ASS'Y CWA418FR
1 10000-503-002 MOTOR SHU2L 1
2 10000-524-023 ASS'Y HOLDER HEAD YK56RAB4N3 1 B DECK
3 10000-523-008 R/P HEAD MS 15RAA2N1 1 A DECK
4 10000-611-009 CAP REEL 22-222-4041 4
5 10000-611-010 ASS'Y PINCH ARM L 22-093-4149 1 B DECK
6 10000-611-012 ASS'Y PINCH ARM R 22-093-4150 2
7 10000-611-057 GEAR PLAY 22-222-4282 3
8 10000-611-015 REEL GEAR 22-222-3030 1 A DECK
9 10000-611-017 ASS'Y SUB REEL L 22-093-3071 1 B DECK
10 10000-611-018 SOLENOID 07-W021C 2
11 10000-611-021 GEAR FF 22-222-4048 2
12 10000-611-022 ASS'Y ARM FR 22-093-4061 2
13 10000-611-023 ASS'Y PULLEY FR 22-093-3060 2
14 10000-611-024 BELT FR 22-083-4059 2
15 10000-611-026 ASS'Y FLYWHEEL L2 22-093-3142 1 B DECK
16 10000-611-028 ARM BRAKE 22-239-3028 2
17
10000-611-029
ASS'Y
SUB
REEL
R
22-093-4151
2
18 10000-611-030 ARM TRIGER 22-268-3008 2
19 10000-611-031 GEAR CAM 22-221-2090 2
20 10000-611-033 ASS'Y FLYWHEEL R2 22-093-3141 1 B DECK
21 10000-611-027 ASS'Y FLYWHEEL R 22-093-3050 1 A DECK
22 10000-611-061 WIRE 300MM 13P 1 B DECK
23 10000-611-062 WIRE 300MM 11P 1 A DECK
24 10000-611-038 SWITCH MODE 04-MPU10101MBO 2
25 10000-611-039 SWITCH LEAF 04-MT510041MVJ1 6
25 10000-611-040 HALL IC 00-LB9051A 2
27 10000-611-046 P.C BOARD 22-070-4046 1 B DECK
28 10000-611-047 HOUSING 00-S5BEH 1 B DECK
29 10000-611-054 BELT MAIN 02-083-4076 1 B DECK
30 10000-611-055 BELT MAIN 02-083-4075 1 A DECK
10-4-1. Cassette deck exploded view
MECHANISM-A
MECHANISM-B
10-4-2. A deck (P/B deck)
10-4-3. B deck (R/P deck)
—45—
