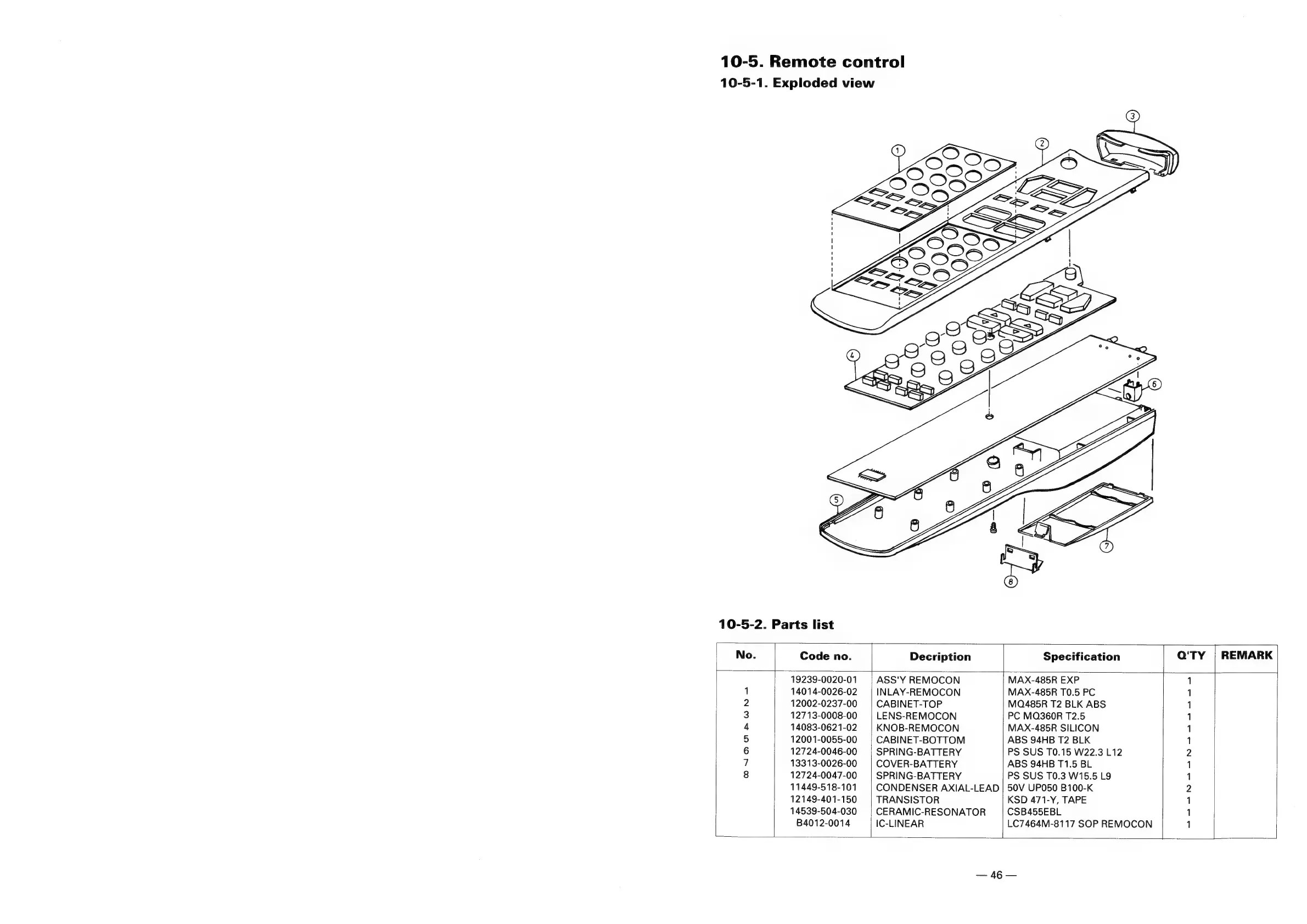

10-5. Remote control
10-5-1. Exploded view
10-5-2. Parts list
No. Code no. Decription Specification Q'TY | REMARK
|
19239-0020-01 ASS'Y REMOCON | MAX-485R EXP 1
1
14014-0026-02
INLAY-REMOCON
MAX-485R
T0.5
PC
1
2
12002-0237-00
CABINET-TOP
MQ485R T2
BLK
ABS
1
3
12713-0008-00
LENS-REMOCON
PC
MQ360R
T2.5
1
4
14083-0621-02
KNOB-REMOCON
MAX-485R
SILICON
1
5
12001-0055-00
CABINET-BOTTOM
ABS
94HB
T2
BLK
1
6
12724-0046-00
SPRING-BATTERY
PS
SUS
T0.15
W22.3
L12
2
7
13313-0026-00
COVER-BATTERY
ABS
94HB
T1.5
BL
1
8
12724-0047-00
SPRING-BATTERY
PS
SUS
T0.3
W15.5
L9
1
11449-518-101
CONDENSER
AXIAL-LEAD
|
50V
UP050
B100-K
2
12149-401-150
TRANSISTOR
KSD
471-Y,
TAPE
1
14539-504-030
CERAMIC-RESONATOR
CSB455EBL
1
B4012-0014
IC-LINEAR
LC7464M-8117
SOP
REMOCON
1
