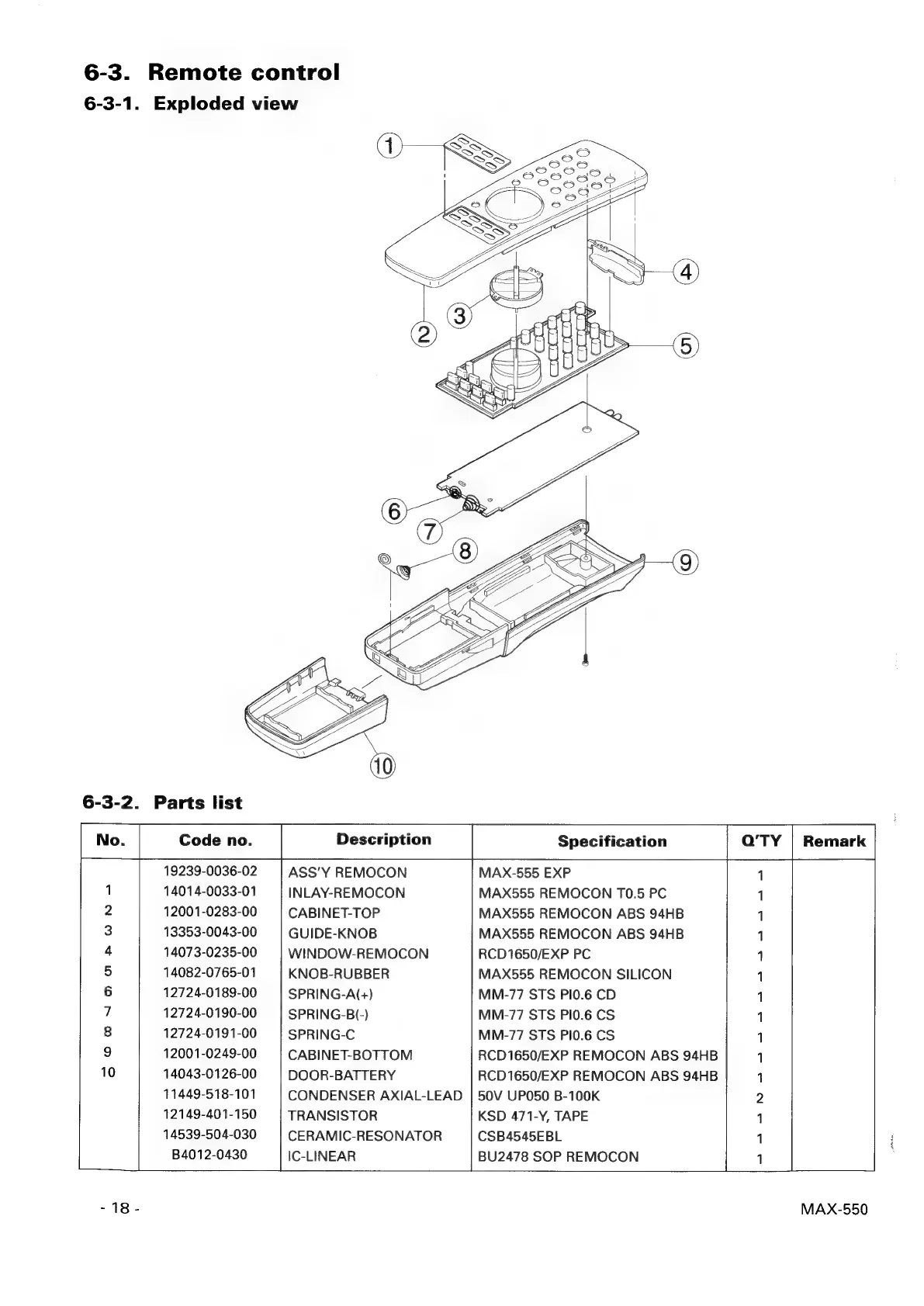

6-3. Remote control
6-3-1. Exploded view
No. Code no. Description Specification Q'TY | Remark
19239-0036-02
ASS’'Y
REMOCON
MAX-555
EXP
1
1
14014-0033-01
INLAY-REMOCON
MAX555
REMOCON
TO0.5
PC
1
2
12001-0283-00
CABINET-TOP
MAX555
REMOCON
ABS
94HB
1
3
13353-0043-00
GUIDE-KNOB
MAX555
REMOCON
ABS
94HB
1
4
14073-0235-00
WINDOW-REMOCON
RCD1650/EXP
PC
1
5
14082-0765-01
KNOB-RUBBER
MAX555
REMOCON
SILICON
1
6
12724-0189-00
SPRING-A(+)
MM-77
STS
PI0.6
CD
1
7
12724-0190-00
SPRING-B(-)
MM-77
STS
PI0.6
CS
1
8
12724-0191-00
SPRING-C
MN-77
STS
P10.6
CS
1
9
12001-0249-00
CABINET-BOTTOM
RCD1650/EXP
REMOCON
ABS
94HB
1
10
14043-0126-00
DOOR-BATTERY
RCD1650/EXP
REMOCON
ABS
94HB
1
11449-518-101
CONDENSER
AXIAL-LEAD
|
50V
UP050
B-100K
2
12149-401-150
TRANSISTOR
KSD
471-Y,
TAPE
1
14539-504-030
CERAMIC-RESONATOR
CSB4545EBL
1
B4012-0430
IC-LINEAR
BU2478
SOP
REMOCON
1
