Figure 3-2
3-2 Samsung Electronics
3-2 CD-Mecha, Door-CD

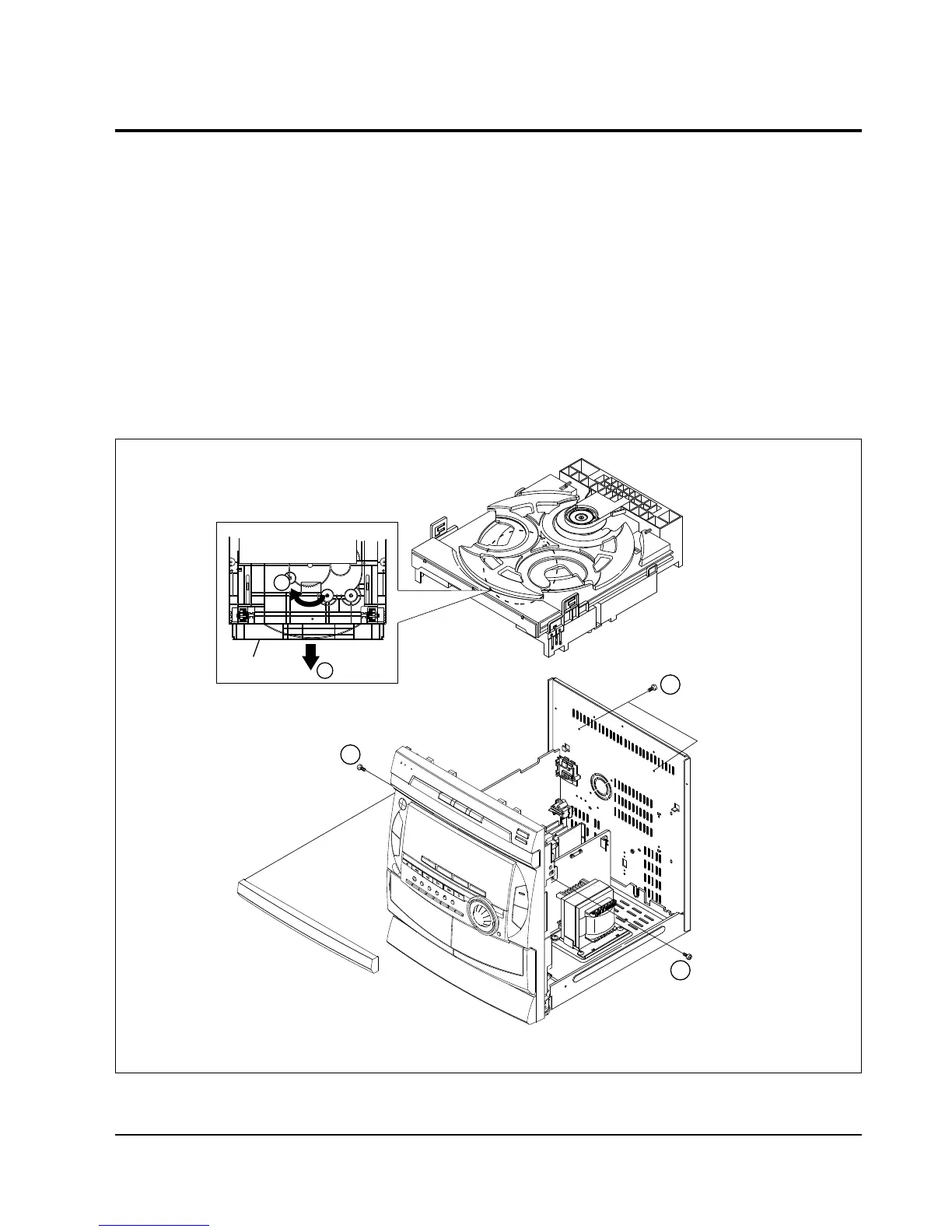

Disassembly and Reassembly
1. After power is connected :
- Turn power on and open the tray using the open/close key
2. After disconnecting power :
Turn the Gear clockwise using the hand as shown in figure 3-2-1.
Pull the Tray in the direction of arrow @.
3. Remove 4 screws $,% and lift the CD-Mecha.
4
4
2
Tray
1
5
Figure 3-2-1
To Next Page
