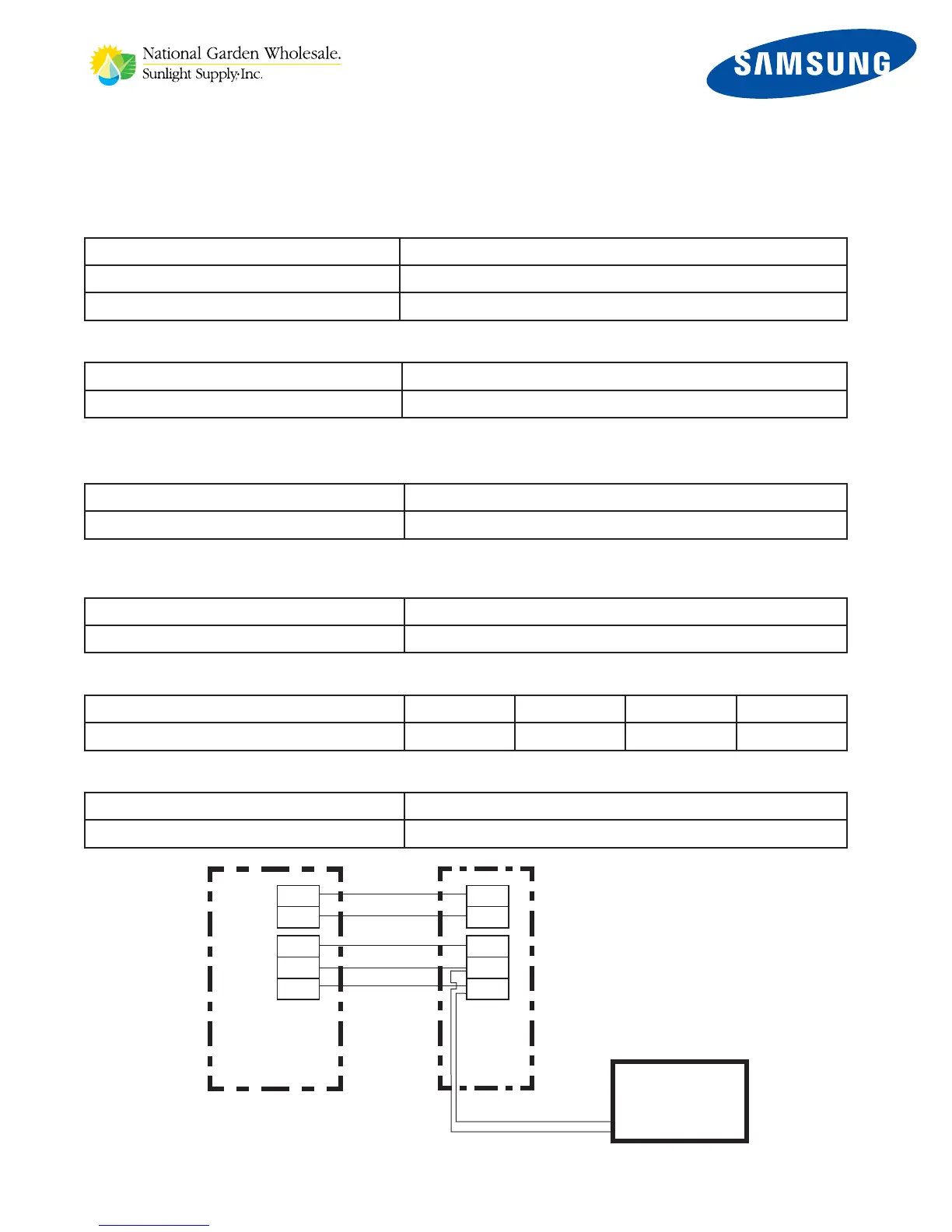

Samsung max mini-split units - Samsung MAX 12,000 BTU Mini-Split Specifications; Power Voltage and Breaker Size; Line Sizes for 12,000 BTU Unit; Interconnect Length for 12,000 BTU Unit

WWW.SUNLIGHTSUPPLY.COM
Distributed by:
208/230V
System
Breaker
Separate all Power &
Communications Wiring by 2”
Indoor Unit
(Ground)
Outdoor
Unit
F2
F1
G
L1
L2
F2
F1
G
L1
L2
POWER VOLTAGE:
Power Voltage: 208/230V - 1 Ph - 60 Hz
Control Voltage: DDC Fuzzy Logic
Main Breaker Size: 15 A
CHARGING:
Unit is charged for: 25 ft. (Factory Charge 31.7oz. R410A)
Additional Charge of R410A: 0.16 oz./ft. over 25 ft.
CHARGE FOR LINE RUN LENGTHS:
Length: 25 35 45 50
Added Charge (oz.): 0 1.6 3.3 4.0
INTERCONNECTING WIRING:
Gauge: 14 AWG Power & 16 AWG Shielded Communication
Number of Interconnecting Wires: 3x14 AWG Power & 2x16 AWG Control = 5 Total
LINE SIZES:
“Liquid” (expanded gas) line: 1/4”
Suction: 3/8”
BOTH LINES MUST BE INSULATED SEPARATELY
Samsung MAX 12,000 BTU Mini-Split
Indoor Unit: #700550 (AQN12VFUAGM)
Outdoor Unit: #700552 (AQX12VFUAGM)
INTERCONNECT LENGTH:
Maximum/Minimum Length: 50 feet / 10 feet
Vertical Lift: 26 feet
Note: Condenser can be above or below evaporator
