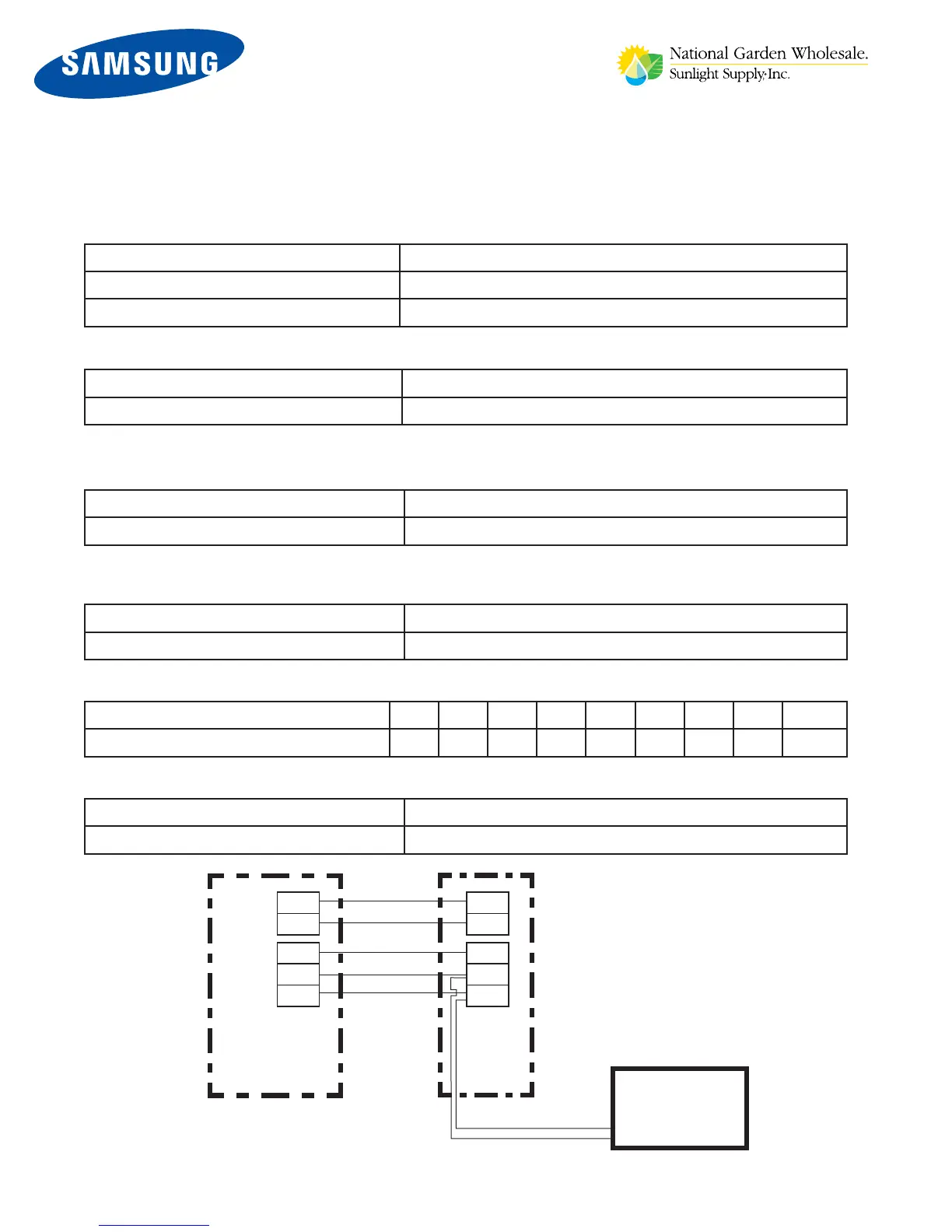

Samsung max mini-split units - Samsung MAX 24,000 BTU Mini-Split Specifications; Power Voltage and Breaker Size (24,000 BTU); Line Sizes for 24,000 BTU Unit; Interconnect Length for 24,000 BTU Unit

WWW.SUNLIGHTSUPPLY.COM
Distributed by:
208/230V
System
Breaker
Separate all Power &
Communications Wiring by 2”
Indoor Unit
(Ground)
Outdoor
Unit
F2
F1
G
L1
L2
F2
F1
G
L1
L2
POWER VOLTAGE:
Power Voltage: 208/230V - 1 Ph - 60 Hz
Control Voltage: DDC Fuzzy Logic
Main Breaker Size: 20 A
CHARGING:
Unit is charged for: 25 ft. (Factory Charge 58.1oz. R410A)
Additional Charge of R410A: 0.16 oz./ft. over 25 ft.
CHARGE FOR LINE RUN LENGTHS:
Length: 25 35 45 55 65 75 85 95 98
Added Charge (oz.): 0 1.6 3.2 4.8 6.4 8.0 9.6 11.2 11.68
INTERCONNECTING WIRING:
Gauge: 14 AWG Power & 16 AWG Shielded Communication
Number of Interconnecting Wires: 3x14 AWG Power & 2x16 AWG Control = 5 Total
LINE SIZES:
“Liquid” (expanded gas) line: 1/4”
Suction: 5/8”
BOTH LINES MUST BE INSULATED SEPARATELY
Samsung MAX 24,000 BTU Mini-Split
Indoor Unit: #700554 (AQN24VFUAGM)
Outdoor Unit: #700556 (AQX24VFUAGM)
INTERCONNECT LENGTH:
Maximum/Minimum Length: 98 feet / 10 feet
Vertical Lift: 50 feet (Trap required at 26 ft.)
Note: Condenser can be above or below evaporator
